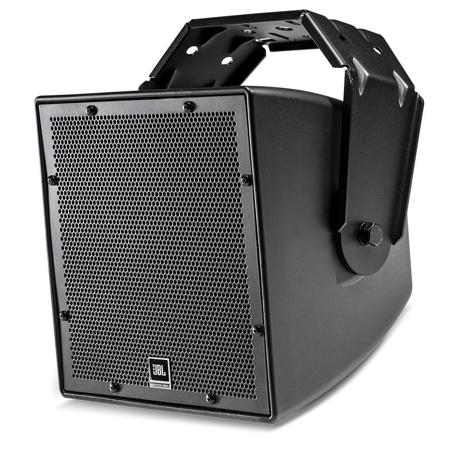

JBL AWC62 6.5" Compact 2-Way Coaxial Loudspeaker, Black
JBL AWC62: Picture 1 thumbnail
JBL AWC62: Picture 2 thumbnail
See all JBL items
20% Off

JBL AWC62 6.5" Compact 2-Way Coaxial Loudspeaker, Black

SKU: JBAWC62BK MFR: AWC62-BK
Be the first to review this itemAsk a Question
$390.00
$486.03
Save: $96.03 (20%)
OR
$65/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this JBL coaxial loudspeaker, perfect for any setting.
  • This compact 2-way speaker delivers a wide 110 x 110 degree coverage pattern.
  • Enjoy long-lasting durability with weather-treated components and robust construction.
  • Easily install this on-wall speaker with the included U-bracket for secure placement.
  • The JBL AWC62 offers versatile connectivity with covered barrier strip terminals.
  • Get powerful audio with a 175W power rating, ideal for commercial audio solutions.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

JBL AWC62 Specifications

  • Finish

    Black

  • Frequency Range (-10 dB)

    70 Hz - 18 kHz

  • Frequency Response (+/-3 dB)

    100 Hz - 16 kHz

  • Coverage Pattern

    110 Degree x 110 Degree

  • Directivity Factor

    7.2 (1 k - 16 kHz)

  • Directivity Index (DI)

    7.9 dB (1 k - 16 kHz)

  • Long-Term System Power Rating (IEC)

    175 W 2 hrs
    120 W 100 hrs

  • Sensitivity (2.83V @ 1m)

    92 dB (Ave. 100 Hz - 18 kHz)

  • Maximum SPL

    Direct 8 Ohm: 114 dB (peaks of 120 dB)
    120 W Tap: 112 dB

  • Crossover Network

    1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 3rd order low-pass to LF

  • Nominal Impedance

    8 ohms

  • Transformer Taps

    70V: 120W, 60W, 30W, 15W
    100V: 120W, 60W, 30W

  • Low Frequency Driver

    Kevlar-reinforced cone with weather treatment, 38 mm (1.5") voice coil.

  • High Frequency Driver

    25 mm (1") diaphragm and voice coil diameter

  • HF Driver Protection

    Minimum audibility SonicGuard HF overload protection

  • Enclosure Material

    ABS with Glass enclosure

  • Attachment

    Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.

  • Grille

    Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.

  • Input Connection

    CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round- jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36").

  • Environmental

    IP56 per IEC529, with a minimum 5 Degree downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).

  • Dimensions

    Cabinet: 10.2 x 10.2 x 10.1" (259 x 259 x 255mm)
    Including gland nut: 11.4" (288mm)
    Including bracket extending to back: 12.2" (309mm)

  • Weight

    15 lb (6.8kg)
    with U-bracket: 17 lb (7.7kg)

  • UPC Code

    691991006012

About JBL AWC62

Wherever high-quality sound is needed, the AWC62 6.5" Compact 2-Way Coaxial Loudspeaker, in a sleek black finish, stands out as an exceptional choice. This robust and reliable loudspeaker, crafted by the reputable brand JBL, is designed with a compact, coaxial-driver, 2-way system that delivers powerful, full-range audio.

Engineered to withstand the elements, this highly weather-resistant loudspeaker is perfect for both indoor and outdoor installations. Its versatile design makes it an ideal solution for a wide array of applications. From live sound reinforcement at concerts and DJ events to background music systems in parks or outdoor events, the AWC62 ensures superior sound performance.

This stylish loudspeaker is not only suitable for sports facilities, racetracks, and stadiums but also shines in unique environments like fairgrounds, rodeos, and skating rinks. It's equally at home on cruise ships, at water parks, or by swimming pools, providing clear and crisp sound for music or paging systems.

The AWC62 features bare wire terminals for speaker connection and is powered by a 70V system, ensuring seamless integration into your existing audio setup. With the AWC62 6.5" Compact 2-Way Coaxial Loudspeaker, you can expect durable, high-quality sound in any setting.

JBL AWC62 Features

  • Highly weather-resistant IP56 rating
  • Consistent 110 Degree x 110 Degree broadband pattern control
  • Components: 165 mm (6.5") woofer with Kevlar-reinforced cone and 38 mm (1.5") voice coil & 25 mm (1") exit compression driver
  • Extraordinary clarity for speech, with extended frequency response for music
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange
  • 175 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability
  • High-power passive crossover network
  • Overload protection
  • 70 Hz - 18 kHz frequency response
  • 120 Watt 70V/100V multi-tap (built-in transformer) or direct 8 Ohm low-impedance

Warranty Information

This product has a limited warranty of 60 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior sound quality with this JBL coaxial loudspeaker, perfect for any setting.
  • This compact 2-way speaker delivers a wide 110 x 110 degree coverage pattern.
  • Enjoy long-lasting durability with weather-treated components and robust construction.
  • Easily install this on-wall speaker with the included U-bracket for secure placement.
  • The JBL AWC62 offers versatile connectivity with covered barrier strip terminals.
  • Get powerful audio with a 175W power rating, ideal for commercial audio solutions.

What's in the box:

  • AWC62 6.5 " Compact 2-Way Coaxial Loudspeaker (Black)
  • U Bracket
  • JBL 5 Year Limited Warranty
