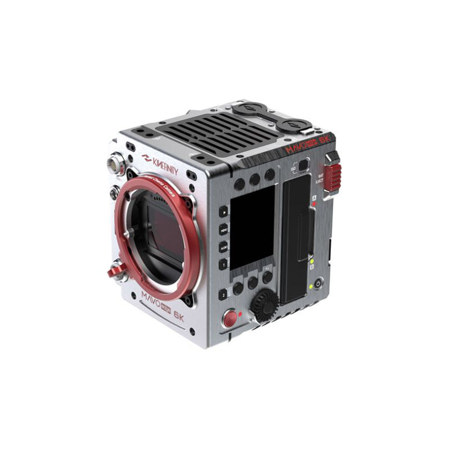

Kinefinity MAVO Edge 6K Digital Cinema Camera Essential Kit, Cyber Edition

SKU: KFA01000202 MFR: A010-002-02
Earn VIP Reward Points

Key Features

  • Capture stunning visuals with the Kinefinity MAVO Edge's 6K full-frame CMOS sensor.
  • Achieve cinematic quality with ProRes codecs and uncompressed RAW video recording.
  • Enjoy versatile lens options with the native KineMOUNT and various lens adapters.
  • Record crystal-clear audio with XLR inputs and a built-in mono microphone.
  • Utilize dual base ISO for exceptional low light performance in any shooting scenario.
  • Experience smooth, stable footage with the camera's advanced stabilization features.
See More Product Details
Special Order?Estimated to Ship: 09/10/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kinefinity MAVO Edge 6K Specifications

General

General

Jump to...
  • CMOS Imaging Sensor

    6K 3:2 Full Frame CMOS Imaging Sensor

  • Max Record Res

    6016x3984 (Open gate 3:2), 24M

  • Frame Rate

    0.2-75fps @FF 6K Wide, 0.2-150fps @S35 4K Wide

  • Active Area

    36x24mm, Dia. 43.3mm

  • Dual Base ISO

    Regular Base ISO: 800 (500 - 2560), High Base ISO: 5120 (3200 - 20480)

  • Latitude

    >14 stops

  • Shutter Angle

    0.7 Degree -358 Degree with rolling shutter

  • Lens Mount

    Omni Native KineMOUNT, Short FFD Adapters: PL/LPL/Active EF/passive E

  • Optical Filter

    OLPF with UV and IR-cut filter

  • ND Filter

    Built-in motorized: Clear and e-ND from 0.6 to 2.4

Codecs, Lut

Jump to...
  • Record Codec

    Codec Type: Uncompressed RAW
    Codec Format: dng
    Bit Depth: 12bits

    Codec Type: ProRes4444XQ
    Codec Format: Quicktime mov
    Bit Depth: 12bits

    Codec Type: ProRes4444
    Codec Format: Quicktime mov
    Bit Depth: 12bits

    Codec Type: ProRes422HQ
    Codec Format: Quicktime mov
    Bit Depth: 10bits

  • LUT

    KineLOG3, Neutral(Rec 709), Support Custom 3D LUT

  • Record Media

    Media Slot x2, for KineMAG Nano SSD 1TB based on NVMe M.2 SSD (3rd party NVMe M.2 2280 cards are also supported via the KineMAG Nano card body)

  • KineMAG Nano Size (W x H x L)

    1.6 x 3.5 x 0.35" (40 x 88 x 9mm)

Resolution, Frame Rate & Optical Format

Jump to...
  • Full Frame

    FF 6K OG:
    6016x3984, 0.2-48fps
    ProRes
    36x24mm, Dia. 43.3mm

    FF 6K 17:9:
    6016x3172, 0.2-60fps
    ProRes
    36x19.1mm, Dia. 41.0mm

    FF 6K 2.4:1:
    6016x2520, 0.2-75fps
    ProRes
    36x15.2mm, Dia. 39.1mm

    FF 5.7K 3:2:
    5760x3700, 0.2-50fps
    ProRes
    34.5x22.2mm, Dia. 41.0mm

    FF 6K UHD:
    5760x3240, 0.2-58fps
    ProRes
    34.5x19.5mm, Dia. 39.6mm

  • Full Frame (Contd.)

    FF 5.7K 2.4:1:
    5760x2400, 0.2-75fps
    ProRes
    34.5x14.4mm, Dia. 37.4mm

    FF 5K 4:3:
    5120x3700, 0.2-50fps
    ProRes
    30.6x22.3mm, Dia. 37.9mm

    FF 5K DCI:
    5120x2700, 0.2-70fps
    ProRes
    30.6x16.2mm, Dia. 34.6mm

    FF 5K 2.4:1:
    5120x2160, 0.2-86fps
    ProRes
    30.6x12.9mm, Dia. 33.2mm

    FF 4.6K 6:5:
    4608x3700, 0.2-50fps
    ProRes
    27.6x22.3mm, Dia. 35.5mm

  • Full Frame (Contd..)

    FF 3.8K 3:2 (Oversample):
    3840x2460, 0.2-50fps
    ProRes
    34.5x22.2mm, Dia. 41.0mm

    FF 4K UHD (Oversample):
    3840x2160, 0.2-58fps
    ProRes
    34.5x19.5mm, Dia. 39.6mm

    FF 3.8K 2.4:1 (Oversample):
    3840x1600, 0.2-75fps
    ProRes
    34.5x14.4mm, Dia. 37.4mm

  • Full Frame (Contd...)

    FF 3.4K 4:3 (Oversample):
    3456x2460, 0.2-50fps
    ProRes
    31.0x22.1mm, Dia. 38.1mm

    FF 3K 6:5 (Oversample):
    3072x2460, 0.2-50fps
    ProRes
    27.6x22.1mm, Dia. 35.3mm

  • S35

    S35 4K 3:2:
    4096x2700, 0.2-70fps
    ProRes
    24.5x16.1mm, Dia. 29.3mm

    S35 4K DCI:
    4096x2160, 0.2-112fps
    ProRes
    24.5x12.9mm, Dia. 27.7mm

    S35 4K 2.4:1:
    4096x1720, 0.2-140fps
    ProRes
    24.5x10.3mm, Dia. 26.6mm

    S35 4K UHD:
    3840x2160, 0.2-112fps
    ProRes
    23.0x12.9mm, Dia. 26.4mm

  • S35 (Contd.)

    S35 3.8K 2.4:1:
    3840x1600, 0.2-150fps
    ProRes
    23.0x9.6mm, Dia. 24.9mm

    S35 3.6K 4:3:
    3712x2700, 0.2-70fps
    ProRes
    22.2x16.1mm, Dia. 27.4mm

    S35 3.2K 6:5:
    3328x2700, 0.2-70fps
    ProRes
    19.9x16.1mm, Dia. 25.6mm

    S35 2.7K 1:1:
    2688x2688, 0.2-70fps
    ProRes
    16.1x16.1mm, Dia. 22.8mm

    S35 2K DCI (Oversample):
    2048x1080, 0.2-112fps
    ProRes
    24.5x12.9mm, Dia. 27.7mm

  • S35 (Contd..)

    S35 2K 2.4:1 (Oversample):
    2048x860, 0.2-140fps
    ProRes
    24.5x10.3mm, Dia. 26.6mm

    S35 2K FHD (Oversample):
    1920x1080, 0.2-112fps
    ProRes
    23.0x12.9mm, Dia. 26.4mm

    S35 1.9K 2.4:1 (Oversample):
    1920x800, 0.2-140fps
    ProRes
    23.0x9.6mm, Dia. 24.9mm

  • Other Cropping

    3K DCI:
    3072 x1620, 0.2-144fps
    ProRes

    3K 2.4:1:
    3072 x1200, 0.2-195fps
    ProRes

    3K HD:
    2944 x1620, 0.2-145fps
    ProRes

    3K HD 2.4:1:
    2944 x1200, 0.2-195fps
    ProRes

    2K DCI:
    2048 x1080, 0.2-200fps
    ProRes

    2K 2.4:1:
    2048 x860, 0.2-270fps
    ProRes

    2K FHD:
    1920 x1080, 0.2-220fps
    ProRes


    1.9K 2.4:1:
    1920 x800, 0.2-290fps
    ProRes

Monitoring

Jump to...
  • Proprietary Video Port x2

    For Kinefinity Viewfinder, KineMON-5U2/7U2 Ultra Bright Monitor with Touch Screen

  • SDI x2

    3G/1.5G SDI x2 with Meta data (regular BNC)

Audio In and Out

Jump to...
  • Audio sampling spec

    Linear PCM, 24bits, 48KHz

  • Audio input

    Built-in Mono Microphone
    3.5mm Microphone Jack
    48V Phantom-power Balanced Input x2 (regular XLR)

  • Audio output

    3.5mm Headphone Jack

Wireless & Network

Jump to...
  • Wired

    Gigabit Ethernet (RJ45 type) for live stream, camera control and data transfer

  • Wireless

    WIFI 5 for live stream, camera control

  • Other

    3-axis accelerometer

Sync and Control

Jump to...
  • Timecode

    Linear TC In&Out (0B5P)

  • Control

    Lens with RS232, Power output (0B6P)

  • Multi-sync, Control

    SYNC with RS232 and Kinefinity camera sync(0B7P)

  • RS

    Rec trigger input with Power output (fisher 3P)

  • Extension

    Data & Control, EXT1 & EXT2(for pogo-pin, 2x4 contacts)

  • USB

    Type-C USB x1, can be used for firmware updates and importing custom LUTs

Power In and Out

Jump to...
  • Power consumption

    29W, when 6K HD 25p, liveview

  • Power Inputs

    Integrated V-mount battery plate, V-mount battery or BP-U compatible
    DC Input (1B2P), 11-26V
    UPS EXT 3(for pogo-pin, 2x5 contacts)

  • Power outputs

    D-tap x1, Vbat @3A; Vbat as DC in or BAT in
    RS x1, Vbat @3A (Shared with D-tap)
    Lens x1, Vbat @3A

Environmental

Jump to...
  • Operating Temp

    32 Degree F to 104 Degree F. (0 Degree C - 40 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, included

  • Battery Material

    Lithium ion

  • Battery Type

    2x V-Mount, 2x L-Series

  • Battery Quantity

    4

Physical

Jump to...
  • Color

    Cyber Edition

  • Material

    Ultra-high Strength Aircraft Aluminum

  • Dimensions (W x H x L)

    4.1 x 4.8 x 4.3" (106 x 124 x 109mm) (Without protrusion)

  • Weight

    3.5 lbs (1.6kg)

8 Accessories for Kinefinity MAVO Edge 6K Digital Cinema Camera Essential Kit, Cyber Edition

  • All Accessories (8)
  • Microphones & Audio (2)
  • Flash & Lighting (6)
Models
Kinefinity MAVO Edge 6K Digital Cinema Camera Essential Kit, Cyber Edition
$10,499.00

Special Order

Generally ships in 7-14 days, subject to availability

Canon XA75 4K UHD 1" Sensor Compact Pro 15x Zoom Camcorder w/ Essential Acc. Kit
$2,999.00

$3,199.00

Save:$200.00 (6%)

In Stock

Blackmagic Design Cinema Camera 6K, with Battery, 512GB Memory Card, Charger Kit
$3,089.00

$3,318.88

Save:$229.88 (7%)

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

Special Features3.5mm Mic Input, Interchangeable Lens, Time Code I/O, XLR Mic InputTouchscreen LCD3.5mm Mic Input, Built-In Microphone, Time Code I/O, Touch Screen LCD, XLR Mic Input
Resolution6K-6K
Kit StyleEssential KitEssential KitEssential Kit
ConfigurationBody OnlyWith 3G-SDIBody & Kit
Sensor TypeCMOSCMOSCMOS
Version6K--
Sensor SizeFull Frame1"Full Frame
Lens IncludedWithout Lens15x ZoomWithout Lens

About Kinefinity MAVO Edge 6K

For filmmakers seeking a cutting-edge solution in digital cinema, the Kinefinity MAVO Edge 6K Digital Cinema Camera Essential Kit, Cyber Edition, offers an unparalleled combination of performance and versatility. This full-frame cinema camera is equipped with a 6K full-frame 3:2 CMOS imaging sensor, capable of capturing stunning visuals at 6K 75fps and 4K 150fps. Its dual native ISO settings (800/5120) ensure exceptional highlight performance across various sensitivity settings, making it ideal for diverse shooting environments.

The MAVO Edge 6K features an internal motorized full-spectrum e-ND filter (0.6-2.4), providing seamless control over exposure without compromising image quality. With industry-standard ports and dual SSD media slots, this camera supports recording in Apple ProRes4444/XQ and uncompressed RAW formats, utilizing NVMe M.2 2280 SSDs for reliable and high-speed data storage.

Weighing just 3.6lbs, the MAVO Edge 6K is both compact and lightweight, yet it delivers powerful performance that adapts to demanding shooting scenarios. Its advanced color processing architecture ensures natural color reproduction, pleasing skin tones, low noise, high dynamic range, and stunning detail, all presented in an organic and delicate manner.

The camera's full-frame 6K CMOS sensor, paired with the OLPF FF3 optical low pass filter, minimizes aliasing and artifacts while maintaining sharp image quality. The MAVO Edge 6K excels in highlight performance, capturing more detail for a cinematic look, especially when using the Cine EI mode, which automatically adjusts highlight stops as the EI changes.

In terms of recording capabilities, the MAVO Edge 6K supports a range of codecs from Apple ProRes422 LT to ProRes4444 XQ and uncompressed RAW, facilitating high-resolution image capture with minimal compression artifacts. The use of Apple ProRes allows for faster post-production workflows, particularly on Apple M1 Pro/Max/Ultra chip workstations, enabling efficient proxy-free editing and color correction.

The camera's intuitive KineOS 7.0 firmware offers a redesigned user interface with touchscreen functionality, allowing cinematographers to quickly adjust settings such as frame rate, shutter angle, ISO, aperture, ND strength, color temperature, LUTs, and audio levels. The firmware also supports the Cooke/i protocol for recording lens metadata, enhancing VFX workflows, and offers compatibility with both NTFS and HFS file systems for versatile media management.

The MAVO Edge 6K's integrated body design, inspired by the award-winning MAVO Edge 8K, features an ultra-high strength deformed aluminum construction, ensuring durability and toughness even in challenging conditions. The camera's compact body includes dual SDI ports, multiple control ports, and multi-channel audio tracks, along with powerful wired and wireless functions for comprehensive connectivity.

Included in the Essential Kit are the KineMON 5U II Complete Monitor, KineMAG Nano SSD (1TB), KineBAT 150 V-Mount Battery, GripBAT 2S L-Series Battery, PD Hybrid Dual Charger, KineKIT Edge Camera Cage, and a Hard-Shell Carry Case with Custom-Cut Foam Insert. Each component is designed to enhance the MAVO Edge 6K's functionality, providing filmmakers with the tools needed for a seamless and efficient shooting experience.

Kinefinity MAVO Edge 6K Features

  • Outstanding Highlight Performance with Stunning Image Quality
  • Apple ProRes Recording Codec and Uncompressed RAW
  • CinemaDNG uncompressed
  • More Intuitive KineOS Firmware
  • Integrated body design of the iF Industrial Design Award
  • Compact Camera Body with Internal e-ND filter
  • Internal motorized full-spectrum e-ND system
  • High-quality multi-channel audio record
  • Dual SDI outputs
  • Powerful wired and wireless function

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Capture stunning visuals with the Kinefinity MAVO Edge's 6K full-frame CMOS sensor.
  • Achieve cinematic quality with ProRes codecs and uncompressed RAW video recording.
  • Enjoy versatile lens options with the native KineMOUNT and various lens adapters.
  • Record crystal-clear audio with XLR inputs and a built-in mono microphone.
  • Utilize dual base ISO for exceptional low light performance in any shooting scenario.
  • Experience smooth, stable footage with the camera's advanced stabilization features.

What's in the box:

  • MAVO Edge 6K Digital Cinema Camera (Cyber Edition)
  • KineMON 5U II 5" Full HD Monitor Complete Package
  • KineMAG Nano SSD (1TB)
  • 2x KineMAG Nano Body
  • 2x Short 10 Gb/s USB-C Data Cable
  • 2x KineBAT 150 V-Mount Battery (145Wh)
  • 2x 65W PD Power Adapter
  • 100W Power Cord
  • 2x GripBAT 2S L-Series Battery
  • PD Hybrid Dual Charger & Power Adapter Package
  • KineKIT Edge Camera Cage
  • Hard-Shell Carry Case with Foam Insert
  • (Lens Adapters Not Included)
  • Kinefinity 1 Year Limited Warranty
