Kramer Electronics VP-461 3-Input Analog & HDMI ProScale Switcher/Scaler
See all Kramer Electronics items

Kramer Electronics VP-461 3-Input Analog & HDMI ProScale Presentation Switcher/Scaler

SKU: KRVP461

This item is no longer available.

Recommended Alternatives

Kramer Electronics DIP-20: Picture 1 regular
Kramer Electronics DIP-20 4K60 4:2:0 HDMI & VGA Auto Switcher and PoE Provider
$1,040.00
Kramer Electronics DIP-31: Picture 1 regular
Kramer Electronics DIP-31 4K UHD Computer Graphics Automatic Video Switcher
$764.00
Kramer Electronics VP-16X18AK: Picture 1 regular
Kramer Electronics VP-16X18AK 16x18 Video & Audio Matrix Switcher
$10,350.00$8,995.00
Kramer Electronics VP-211K: Picture 1 regular
Kramer Electronics VP-211K 2x1 Switcher
$300.00$240.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics VP-461 Specifications

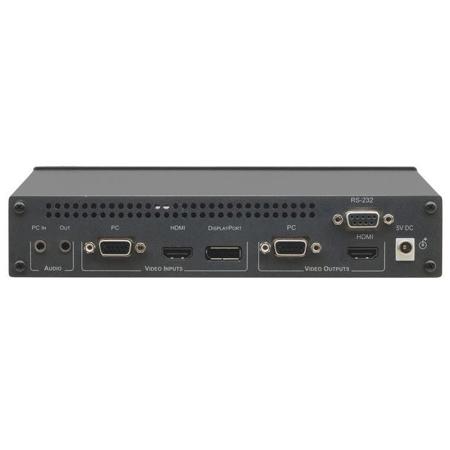

  • Inputs

    Computer graphics on a 15-pin HD connector, HDMI connector, DisplayPort connector, unbalanced stereo audio on a 3.5mm mini jack connector

  • Outputs

    Computer graphics on a 15-pin HD connector, HDMI connector, unbalanced stereo audio on a 3.5mm mini jack connector

  • Compliance With HDMI Standard

    Supports HDMI Deep Color

  • Output Resolutions

    640x480 at 60, 75, 800x600 at 50, 60, 75, 1024x768 at 50, 60, 75, 1280x768 at 50, 60, 1280x800 at 60, 1280x1024 at 50, 60, 75, 1366x768 at 50, 60, 1400x1050 at 50, 60, 1600x900 at 60, 1600x1200 at 50, 60, 1680x1050 at 60, 1920x1200 at 60

  • Controls

    Front panel buttons, OSD, IR remote control, RS-232 on a 9-pin D-sub connector

  • Power Consumption

    5V DC, 2.90A

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -40 to 70 deg. C / -40 to 158 deg. F

  • Humidity

    10% to 90%, RHL non-condensing

  • Options

    RK-1 rack adapter

  • Dimensions (W x D x H)

    21.5 x 16.3 x 4.4cm / 8.46 x 6.42 x 1.73"

  • Weight

    0.9kg / 1.98lbs approx.

About Kramer Electronics VP-461

The VP-461 is a high-quality presentation switcher and scaler with PIP for computer graphics, HDMI and DisplayPort signals. It scales the video, embeds the audio and outputs the signal to the HDMI output, as well as to the computer graphics video output together with an unbalanced audio output.

• HDTV Compatible
• 40 Output Resolutions: Up to WUXGA, 1080p and 2K
• HDMI Deep Color Support
• Luma Keying: Via PIP window
• Vertical Keystoning
• Built-in ProcAmp: Color, sharpness, contrast, brightness and gamma are set individually for each input
• Powerful Noise Reduction Filters: Temporal, block, mosquito and combing
• Picture Zooming: Both on main and PIP picture
• De-interlacing: 3:2 and 2:2 pull-down; 24sf handling
• Multiple Aspect Ratio Selections: Follow input, follow output, best fit, letterbox and overscan
• Advanced EDID Management: For each input and each output
• Non-Volatile Memory: Saves final settings
• Firmware Upgrades: Via RS-232

K-IIT XL Picture-in-Picture Image Insertion Technology
Ultra-stable picture-in-picture, picture-and-picture and split screen capability. Any video source can be inserted into or positioned next to a DisplayPort video source or vice versa with window positioning and sizing controls.

Kramer's PixPerfect Scaling Technology
Kramer's precision pixel mapping and high quality scaling technology. High-quality 3:2 and 2:2 pull down de-interlacing and full up and down-scaling of all video input signals.

Ultra-Fast Fade-Thru-Black (FTB) Switching
Video switching transitions are clean and ultra fast. The video fades to black and the new input fades from black for smooth, glitch-free switching. The output signal provides constant sync so the display never glitches.

Flexible Control Options
Front panel buttons, OSD (on-screen display) via front panel buttons or IR remote (remote control included), Control Application software for use via RS-232.

Applications
• Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios, rental and staging
• Any application where high quality conversion and switching of multiple and different video signals to graphical data signals is required for projection purposes

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Kramer Electronics VP-461 3-Input Analog & HDMI ProScale Presentation Switcher/Scaler
  • Power Supply
  • IR Remote Control
  • Control Application Program via RS-232 (PC)
  • Kramer Electronics 7 Year Limited Warranty
