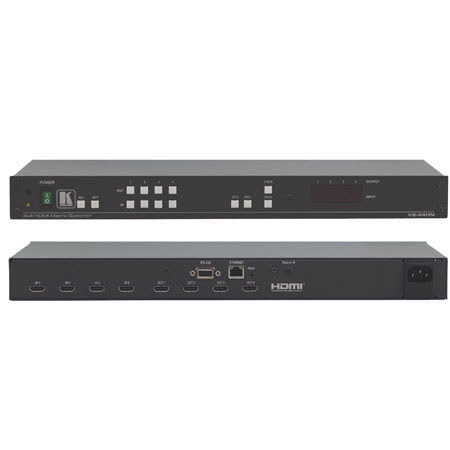

Kramer Electronics VS-44HN 4x4 HDMI Matrix Switcher
See all Kramer Electronics items

Kramer Electronics VS-44HN 4x4 HDMI Matrix Switcher, 6.75Gbps Max Data Rate

SKU: KRVS44HN

This item is no longer available.

Recommended Alternatives

Kramer Electronics DIP-20: Picture 1 regular
Kramer Electronics DIP-20 4K60 4:2:0 HDMI & VGA Auto Switcher and PoE Provider
$1,040.00
Kramer Electronics DIP-31: Picture 1 regular
Kramer Electronics DIP-31 4K UHD Computer Graphics Automatic Video Switcher
$764.00
Kramer Electronics VP-28: Picture 1 regular
Kramer Electronics VP-28 14-Input Multi-Format Presentation Switcher
$2,265.00$1,810.40
Kramer Electronics VP-4x4K: Picture 1 regular
Kramer Electronics VP-4x4K 4x4 Graphics Video & Stereo Audio Matrix Switcher
$1,535.00$1,228.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Kramer Electronics VS-44HN Specifications

  • Inputs

    4 HDMI connectors

  • Outputs

    4 HDMI connectors

  • Bandwidth

    Up to 6.75Gbps data rate (2.25Gbps per graphic channel)

  • Compliance with HDMI Standard

    HDMI and HDCP

  • Resolution

    Up to UXGA; 1080p

  • Power Consumption

    100-240V AC, 50/60Hz, 21VA

  • Controls

    Front panel buttons, infrared remote control transmitter, RS-232, Ethernet

  • Operating Temperature

    0deg. to +40deg.C (32deg. to 104deg.F)

  • Storage Temperature

    -40deg. to +70deg.C (-40deg. to 158deg.F)

  • Humidity

    10% to 90%, RHL non-condensing

  • Rack Height

    1U

  • Dimensions (W x D)

    19 x 7.24" / 48.26 x 18.38 cm

  • Weight

    1.6 kg / 3.52 lbs

About Kramer Electronics VS-44HN

The Kramer Electronics VS-44HN is a high-performance matrix switcher for HDMI signals. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.

Kramer Electronics VS-44HN Features

  • Maximum Data Rate - 6.75Gbps (2.25Gbps per graphic channel)
  • HDTV Compatible
  • HDMI Support - Deep Color, x.v.Color, up to 7.1 Uncompressed Audio Channels
  • 3D Pass-Through
  • HDCP Compliant
  • Fast Switching Technology - Reduces switching delay between DVI/HDMI sources
  • Kramer Equalization & re-Klocking Technology - Rebuilds the digital signal to travel longer distances
  • I-EDIDPro Kramer Intelligent EDID Processing - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems
  • Support for Protocol 2000 and Protocol 3000
  • Front Panel Lockout
  • Output Disconnect - Each output
  • Memory Locations - Store multiple switches as presets (salvos) to be recalled and executed when needed
  • Flexible Control Options - Front panel, IR Remote, RS-232 (K-Router Windows-based software is included) & Ethernet (Windows-based Ethernet Configuration Manager & Virtual Serial Port Manager is included)
  • Worldwide Power Supply - 100-240V AC
  • Standard 19" Rack Mount Size - 1U. Rack "ears" included

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • HDTV Compatible
  • 3D Pass-Through
  • HDCP Compliant
  • Front Panel Lockout

What's in the box:

  • Kramer Electronics VS-44HN 4x4 HDMI Matrix Switcher
  • Power Cord
  • IR Transmitter
  • Rack "Ears"
  • Kramer Electronics 7 Years Limited Warranty
