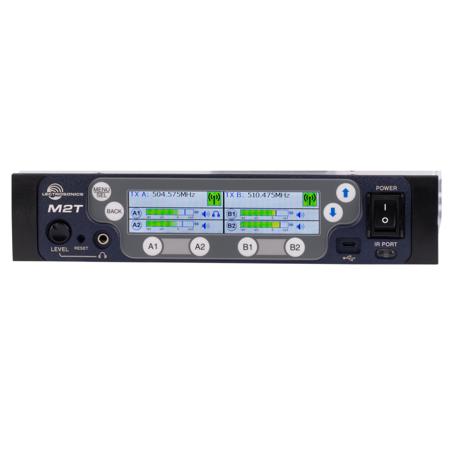

Lectrosonics M2TND Digital IEM/IFB Half-Rack Transmitter

The M2T Digital HalfRack Transmitter with a unique level of performance in a wireless in-ear monitor system. With ultra-low latency, digital RF modulation and two stereo digital channels, the M2T provides a truly unique IEM product for demanding, professional applications.

The M2T boasts a USB port for firmware updates and an IR port for fast setup. A large, high resolution, backlit LCD and large membrane switches provide an intuitive interface that is highly visible in daylight or dimly lit conditions.

The half-rack transmitter provides four audio inputs which can be individually configured to be analog. The input connectors are full size XLR/TRS combo types for balanced line level analog signals. Input preamp circuits use a special balanced amplifier with very high common mode rejection to minimize hum and noise. Analog signals are converted to an internal digital format which is then encoded, organized into packets, and passed to an RF modulator. The modulated RF signal is filtered before and after amplification to suppress out-of-band noise and spurious signals.

Conventional in-ear wireless monitor systems rely on decades-old technology: FM transmission with multiplexed, companded audio. The M2T Transmitter employs unique technology to provide ruler-flat frequency response and maximum channel separation. In addition, the digital audio eliminates a compandor and the associated artifacts. The result is crystal clear sound, rock solid stereo imaging, and extremely low distortion of <0.15%.

The M2T is designed and developed with the professional touring, installation, theater and broadcast customers in mind. The transmitter chassis is all-metal.

The M2T half-rack transmitter features transmission power of up to 50 mW for extended operating range (up to 100 mW EIRP for M2t/E06). Locking XLR/TRS Combo connectors facilitate up to four channels of analog audio sources to be applied to the transmitter. A large, high resolution, backlit LCD and large membrane switches provide an intuitive interface.

Firmware updates are made via the USB port on the front panel of the housing. The procedure is very simple using a menu item on the transmitter and a standard micro USB cable connected to a PC. Setup and adjustment are enabled through a backlit LCD, membrane switches and an intuitive menu structure. Input gain is adjustable over a wide range in 1 dB steps to optimize modulation and limiting for maximum signal to noise ratio and minimum distortion.
