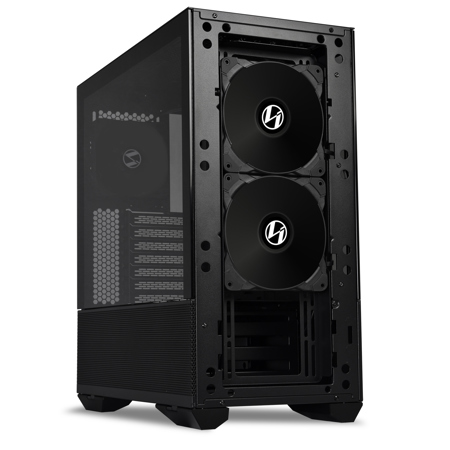

Lian-Li LANCOOL II Mesh Performance ATX Mid-Tower Case with Type-C Port, Black

Born to push the limits
LANCOOL II MESH Performance features a mesh front panel and mesh bottom left shroud panel, honeycomb vent design and built-in PWM fans, ensuring bountiful airflow delivered to your components while the system runs at peak performance.

With the mesh front, LANCOOL II MESH making great airflow in the chassis, Packing three PWM fans, two front 140mm fans and one rear 120mm fan effectively cooling the component in user's PC build and able to control by the botton on the I/O port. 9 drive mounting space and supports 384mm maximum GPU length and 176mm maximum hight clearance. Solution for the cable management with double tempered glass to view the interior.

The Ultimate Chassis For Beginners And Enthusiasts Alike

• Premium look
• Unprecedented modularity
• Hinged flip panels all around
• Optimized cooling support
• Cable management with ease
• Optimized storage configuration

Exquisite Steel Craftsmanship
Mesh intakes spanning the front panel guarantee sufficient airflow in and out of the system, allowing it to run at peak performance.

More Advanced Cooling Support
Optimized airflow is a result of the collaboration between the brand-new mesh design, additional exhaust vent holes, and three high-performance PWM cooling fans.

• Mesh Front Panel
• Honeycomb Vents
• Mesh Bottom Left Shroud Panel

High-Performance Built-In PWM Fans
2 x 140mm PWM intake fans pre-installed at the front and 1 x 120mm exhaust fan in the back of the PERFORMANCE EDITION produce ample airflow, keeping your system running at peak performance.

Front: 2 x 140mm PWM fans
• RPM range: 600-1200 RPM
• Static pressure: 1.49mmH2O (maximum)
• Airflow: 60.56 CFM (maximum)

Back: 1 x 120mm PWM fans
• RPM range: 600-1500 RPM
• Static pressure: 1.78mmH2O (maximum)
• Airflow: 54.6 CFM (maximum)

Experience Fan Control On A Whole New Level
The four-mode fan controller on the top front allows you to experience fan control on a whole new level. Select L for casual use like internet browsing, press H when you're pushing your GPU(s) and CPU hard.

The included hub supports up to 6 PWM fans with either 3-PIN or 4-PIN headers.

Modular PSU Shroud Cover
The space between the top and bottom chamber now features two removable PSU shroud covers to house either 2 x 2.5" SSDs or can be removed to fit 2 x 120mm Fans.

• Compared to the former integrated design, the modular PSU shroud covers allow users to remove them for an unobstructed airflow between the top and bottom chamber.
• When 2 fans are mounted, and the cover plates removed, ventilation efficiency is even better.
• Even when 2 x SSDs are mounted, the vents on the PSU shroud covers guarantee good ventilation.

Multi-Way Fan/Radiator Bracket
The multi-way bracket revolutionizes your notion of fan/radiator installation by offering 4 installation options to best fit your needs.

55mm scenario
Closer to the motherboard for more direct cooling

110mm scenario
Closer to the front panel for thick radiators

How To Install The Multi-Way Fan/Rad Bracket
The multi-way bracket revolutionizes your notion of fan/radiator installation by offering 4 installation options to best fit your need.

Optimized Storage Configuration
With the modular drive cage, side-mounted SSD bays, and additional SSD space on the modular PSU shroud cover, the LANCOOL II MESH is capable of holding up to 9 drives.

Toolless Sliding Drive Cage
Slide the hard drive cage along its bottom track to the position that best fits your interior configuration.

Drive Installation Guide

Support Up to 9 Drives
• Modular drive cage: 3 x 3.5" HDDs/2.5" SSDs
• Side-mounted SSD bays behind motherboard tray: 2 x 2.5" SSDs
• Side-mounted SSD bays at the bottom right flip shroud: 2 x 2.5" SSDs

Removable Two-Way Cable Management Bar
Flippable, flexible, multi-functional

Flip Panels and Shrouds all Around
The tempered glass side panels offer an unobstructed view to the interior configuration while the bottom shroud panels provide quick access to PSU/drive installation.

• Magnetic glass panel Hinge design for quick assembly
• 2 side-mounted SSD bays

Cable Management with Ease
The cover plates save users' neck and fingers by concealing nearly all the wayward cables.

Top Right Square Cover Plate
To Cover all the wayward fan cables.

Left Rectangular Cover Plate
To conceal cables connected to PSU and IO ports.

Bottom Shroud Panel
To hide PSU cables with a flip of the shroud cover.

Underneath the top right cover plate is a mounting plate for a removable fan/LED hub.

Mesh Panel Kit
Mesh front panel is available for those LANCOOL II users craving to upgrade their system by swapping to a mesh front panel.
