Magewell Pro Capture DVI 4K Specifications

  • Supported OS

    Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
    Linux (V4L2 kernel driver source code under NDA, supports x86, x64 & arm architecture)
    OS X 10.9-10.11
    macOS 10.12

  • Supported APIs

    Windows: DirectShow, DirectKS, Wave API/DirectSound/WASAPI
    Linux: V4L2, ALSA

  • Supported Software

    VLC
    VirtualDub
    OBS
    XSplit
    vMix
    VidBlaster
    Wirecast
    Microsoft Media Encoder
    Adobe Flash Media Encoder
    Any other DirectShow/V4L2 encoding/streaming software

  • Input Interfaces

    HDMI: DVI-D 1.0 (Single or Dual Link), HDMI 1.4

  • Host Interfaces

    PCIe Gen2 x4

  • Input Features

    Support for input video resolutions up to 4096 x 2160 pixels

  • Video Capture Formats

    Support for capture image resolutions up to 4096 x2160 pixels
    Support for capture frame rates up to 144fps. (Actual capture frame rate can be limited by PCIe bandwidth & image resolution)

  • Video Capture Formats(Contd.)

    Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
    Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
    Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
    Support for 4:4:4 10-bit capture formats: V410, Y410
    More capture formats are supported via Pro Capture SDK for DirectKS

  • Multiple Cards per System

    Support for multiple cards plugged to one system
    On-board rotary switch to set card number, with 16 positions from 0 to F
    System hardware device tree will display "01: Pro Capture DVI 4K" when rotary switch is set to 1, and so on
    The video and audio device names displayed in your software will include the card number (set by the rotary switch)

  • Multiple Capture Streams

    Unlimited capture streams for any one input channel
    Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream

  • Ultra Low Latency Support

    Latency of 64 video lines
    Partial notification mode in SDK

  • Timestamp &A/V Synchronization

    Hardware based 100ns high resolution clock
    Audio frames (192 audio samples) & video frames are stamped with hardware clock
    Hardware clock can be synchronized across cards (via SDK)

  • Video Capture SG-DMA

    Approx. 1200MB/s per channel DMA bandwidth in PCIe 2.x system
    Approx. 800MB/s per channel DMA bandwidth in PCIe 1.x system
    Support for auto detection of Intel tiled GPU surface
    Support for DirectGMA for AMD video adapter chipsets
    Support for GPUDirect for Nvidia video adapter chipsets

  • SDK

    Pro Capture SDK for DirectShow for easy integration (Windows)
    Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)

  • Windows Driver Tweaks

    All options can be controled by three levels of registry key: global level, product level and device level
    Video,Audio, Crossbar filter names can be customized via registry keys

  • Firmware Upgrade

    Multiple cards in one system can be upgraded simultaneously
    Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)

  • LED Indicator

    Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed

  • Form Factor

    Low profile PCIe x4 Add-on Card
    92.76mm x 68.88mm (without PCI bracket)

  • Power Consumption

    Max current at 12V: Approx. 0.4 A
    Max current at 3.3V: Approx. 0.86 A
    Max power consumption: Approx. 7.28 W

  • Working Environment

    Operating temperature: 0 to 40 Degree C
    Storage temperature: -20 to 70 Degree C
    Relative Humidity: 5% to 90% non-condensing

  • UPC Code

    8143950200471

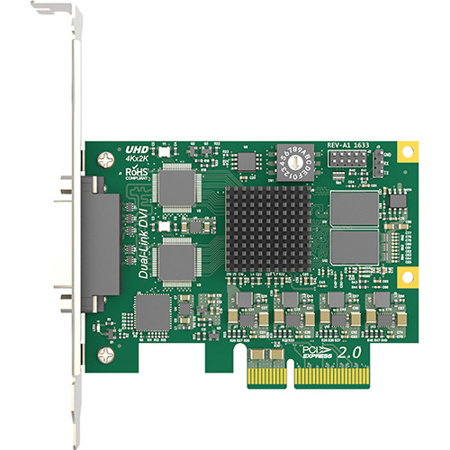

About Magewell Pro Capture DVI 4K

HDMI Specific Features:
• Dual 165MHz HDMI receiver
• Adaptive HDMI equalizer
• Support for customized EDID
• Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
• Full colorimetry support
• Support for single link DVI or HDMI signals at pixel rate no more than 165MHz
• Support for dual link DVI signals at pixel rate no more than 330MHz
• Support for extraction of audio formation information & channel status data
• Support for extraction of video timing information
• Support for extraction of 3D format information
• Support for extraction of Sony/Canon DSLR time code
• Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode

Video Processing Features:
• Two video processing pipelines with -360Mpixels/s processing bandwidth
• Full 10-bit video processing
• Video cropping
• Video scaling
• Video de-interlacing: Weave, Blend top & bottom field, Top field only, Bottom field only
• Video aspect ratio conversion: Auto or manual selection of input aspect ratio, Auto or manual selection of capture aspect ratio, Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
• Video color format conversion: Auto or manual selection of input color format & quantization range, Auto or manual selection of capture color format, quantization range & saturation range, Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats, Support for Limited or Full quantization range, Support for Limited, Full & 'Extended gamut' saturation range
• Video frame rate conversion
• Video OSD composition: Support for PNG OSD image (up to 4096 x2160), Support for dynamic loading of RGBA OSD image via SDK

Magewell Pro Capture DVI 4K Features

  • PCIe 2.0
  • Capture DVI-4k
  • Compatible with Windows
  • Compatible with Linux
  • Compatible with Mac OS X
  • Up/down Scaling
  • Deinterlacing
  • Multiple Streaming
  • Automatically Detecting Input Signal
  • High-fidelity Video Processing Pipeline
  • Image Control
  • Various Output Color Spaces
  • SG-DMA Transmission Mode
  • Multiple Devices on One Host
  • Hardware Time Stamp
  • Mounting Hole
  • Rotary Switch
  • High-speed Memory
  • LED Indicator
  • Firmware Upgrade
  • Common Driver
  • Continuously Work for 24h x7

Key Features

  • PCIe 2.0
  • Capture DVI-4k
  • Compatible with Windows
  • Compatible with Linux
  • Compatible with Mac OS X
  • Up/down Scaling

What's in the box:

  • Pro Capture DVI 4K One Channel Capture Card
  • Magewell 1 Year Limited Warranty
