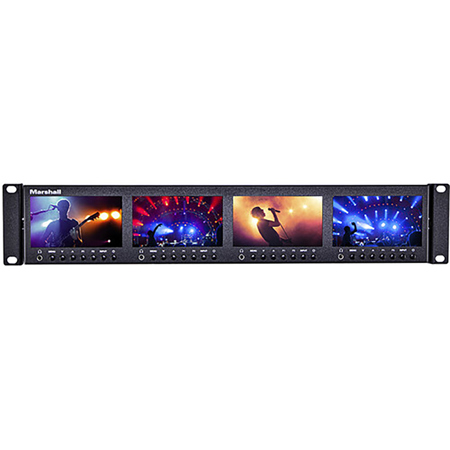

Marshall Electronics ML-454-V3 Quad 4.41" Full HD 2RU Rackmount Monitor, Black
See all Marshall Electronics items

Marshall Electronics ML-454-V3 Quad 4.41" Full HD 2RU Rackmount Monitor, Black

SKU: MARML454V3

This item is no longer available.

Recommended Alternatives

Marshall Electronics QVW-1708: Picture 1 regular
Marshall Electronics Desktop Quad View 17" Native Resolution Monitor, 3G-SDI
$4,411.00$2,999.99
Marshall Electronics : Picture 1 regular
Marshall Electronics 15.1" Rack Mountable NTSC System Video Monitor
$2,699.00$2,239.95
Marshall Electronics Monitor: Picture 1 regular
Marshall Electronics 17.3" Full HD Rackmount LED Monitor, HDMI
$1,576.99$1,335.99
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Marshall Electronics ML-454-V3 Specifications

Display

Display

Jump to...

  • Panel Type

    LCD

  • Display Size

    4.41" (11.2cm)

  • Native Resolution

    1920 x 1080

  • Aspect Ratio

    16:9

  • Viewing Angle

    Horizontal: 170 Degree
    Vertical: 170 Degree

  • Touchscreen

    No

  • Maximum Brightness

    400 nits / cd/sq. m

  • Contrast Ratio

    1500:1

  • HDR Support

    No

  • Image Controls

    Check Field, Color Temperature Selection, Customizable Aspect Ratios, Focus Peaking, Image Flip, Image Freeze, Marker Color, Overscan, Screen Markers

Inputs/Outputs

Jump to...

  • Video I/O

    4x BNC (3G-SDI) Loop Output
    4x BNC (3G-SDI) Loop Output
    4x HDMI (Unspecified Signal) Input
    4x HDMI (Unspecified Signal) Output

  • Embedded Audio

    HDMI/SDI

  • Audio I/O

    4x 1/8" (3.5mm) Headphone Output

  • Built-In Speaker

    No

  • Power I/O

    1x Barrel (3 A / 12 VDC) Input

  • Other I/O

    1x DE-15/DB-15 (Tally)
    1x USB-A (Firmware)

  • Media/Memory Card Slot

    No

Wireless

Jump to...

  • Wi-Fi

    No

  • Bluetooth

    No

  • Mobile App Compatible

    No

Format Support

Jump to...

  • Video Format

    SDI
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50/30/29.97/25/24/23.98

Power

Jump to...

  • Input Power

    12 VDC at 3 A

  • Battery

    No

  • Power Consumption

    24W

Mounting

Jump to...

  • Rack Form Factor

    2 U

General

Jump to...

  • Color

    Black

  • Operating Conditions

    32 to 122 Degree F (0 to 50 Degree C)

  • Storage Conditions

    -4 to 140 Degree F (-20 to 60 Degree C)

  • Dimensions

    19 x 3.5 x 1.5" (482.7 x 88 x 38mm)

  • Weight

    3.5 lbs (1.6kg)

Other

Jump to...

  • UPC Code

    801813233940

About Marshall Electronics ML-454-V3

The Marshall ML-454-V3 Quad 4.41" LCD Display is a feature-packed, economical solution perfect for fly-packs, control rooms, routing rooms and countless other video system applications. Looping video inputs set this product apart from similar-looking products. With the ML-454-V3, you are not limited to the single SDI connector you may find on competitor models. Standard power and tally connections as well as a logical menu structure make this display an easy choice for flexible system designs.

Marshall Electronics ML-454-V3 Features

  • High resolution 1920 x 1080 bright, colorful display with no-compromise input selections for each screen
  • Digital inputs: HDMI, 3GSDI
  • Multi-screens in 2RU Height
  • Bright screens with great off-axis performance
  • Compare to space wasting, complex multi-view systems
  • Very good Power Efficiency
  • SDI inputs have active loop through outputs
  • On-screen 3-color Tallies

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • See every detail with the Marshall ML-454-V3's quad 4.41" Full HD rackmount monitor.
  • Achieve superior monitoring with a 1920x1080 native resolution on this Marshall monitor.
  • Enjoy wide viewing angles (170°) on a professional-grade rackmount LCD display panel.
  • Integrate seamlessly into your workflow with multiple HDMI and 3G-SDI video I/O ports.
  • Get precise color accuracy with customizable image controls for critical monitoring tasks.
  • Optimize rack space using the 2RU form factor; ideal for broadcast & production environments.

What's in the box:

  • Marshall Electronics ML-454-V3 Quad 4.41" Full HD 2RU Rackmount Monitor (Black)
  • DC 12V Power Adapter
  • Tally Connector
