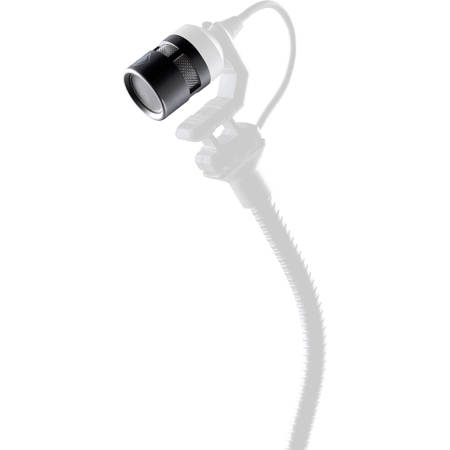

Neumann KK 14 Cardioid Capsule for Miniature Clip Microphone System

SKU: NMV8694 MFR: 008694
Earn VIP Reward Points

Key Features

  • Enhance your sound with the Neumann KK 14 cardioid capsule for clear audio capture.
  • Achieve professional-grade recordings using this high-sensitivity microphone component.
  • Experience exceptional durability with its robust titanium housing, built to last.
  • Enjoy wide compatibility with the Neumann KK series for seamless integration.
  • Minimize background noise with the cardioid polar pattern, perfect for focused recording.
  • Get superior value with this Neumann capsule, ensuring top-tier audio performance.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Neumann KK 14 Specifications

  • Operating Principle

    Pressure Gradient Transducer

  • Polar Pattern

    Cardioid

  • Frequency Response

    20 Hz to 20 kHz

  • Sensitivity

    3.6 mV/Pa Approx. = -49 dBV, at 1 kHz into 1 Kilohm

  • Rated Impedance

    10 Ohms

  • Signal-to-Noise Ratio

    63 dB, CCIR (re. 94 dB SPL)
    71 dB, A-Weighted (re. 94 dB SPL)

  • Equivalent Noise Level

    31 dB, CCIR
    23 dB, A-Weighted

  • Maximum SPL

    153 dB SPL, with Supply = 10 V, Rfeed = 20 Kilohms, for THD < 0.5%
    143 dB SPL, with Supply = 5 V, Rfeed = 8.25 Kilohms, for THD < 0.5%

  • Dynamic Range

    130 dB, A-Weighted for THD < 0.5%

  • Maximum Output Voltage

    12 dBu

  • Power Supply

    Max 10 V, with Rfeed = 20 Kilohms

  • Current Consumption

    0.22 mA

  • Output Connector

    Proprietary, Locking

  • Housing

    Titanium

  • Operating Temperature Range

    32 to 104 Degree F (0 to 40 Degree C)

  • Operating Humidity Range

    0 to 90%, Relative Humidity

  • Storage Temperature Range

    -4 to 158 Degree F (-20 to 70 Degree C)

  • Storage Humidity Range

    0 to 95%, Relative Humidity

  • Dimensions (Dia. x L)

    0.5 x 0.4" (12 x 11mm)

  • Weight

    0.1 oz (2.3g)

  • UPC Code

    615104383128

Designed For Use With:

  • KK Series

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

Models
Neumann KK 14 Cardioid Capsule for Miniature Clip Microphone System
$299.00

$359.00

Save:$60.00 (17%)

Ships from Manufacturer

Usually ships within 2-4 Weeks. Delivery is subject to availability.

Neumann KK 13 Omnidirectional Capsule for Miniature Clip-On Mic System
$299.00

$359.00

Save:$60.00 (17%)

Pre Order Now

You may place this on order now and it will be shipped on a first come first serve basis. We do not charge your card until we actually ship.

Neumann KK184 Cardioid Capsule Head with Woodbox, Nextal Black
$649.00

$809.00

Save:$160.00 (20%)

Ships from Manufacturer

Usually ships within 1-2 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

CompatibilityKK Series-KMD & KMA
Accessory TypeCartridge/CapsuleCartridge/CapsuleCartridge/Capsule

About Neumann KK 14

Bring your audio recording to a whole new level with the KK 14 Cardioid Capsule for Miniature Clip Microphone System. This innovative capsule is a key component of the renowned Neumann Miniature Clip Mic System, designed to deliver unparalleled acoustic precision and consistency in close miking applications.

The KK 14 Cardioid Capsule revolutionizes the Electret Principle, capturing the unique sound of acoustic instruments with unmatched precision and neutrality. It breaks through the traditional limitations of electret-based microphones, offering a broader bass and mid-range, coupled with a confident elegance in the treble. From the quietest nuances to the peak dynamics of a powerful fortissimo, the KK 14, with a maximum SPL of 153, captures every detail with ease.

Neumann engineers have reimagined the production process for electret-based microphones, opting for a layered structure where each module of the KK 14 is meticulously designed and built to deliver optimal results. Assembled by hand in Germany, this approach eliminates typical compromises, paving the way for unprecedented acoustic qualities.

The robust titanium housing not only contributes to a durable, road-tough design but also reflects the inner elegance of the engineering and design process. This layered design also ensures an unheard level of tonal consistency - every KK 14 capsule sounds exactly the same, saving engineers valuable time on basic EQing and delivering consistent sound from the earliest soundcheck.

As part of the Neumann Miniature Clip Mic MCM System, the KK 14 Cardioid Capsule offers an impressively low cost of ownership. Designed for longevity, the system's modular design allows for easy replacements. Nine mounting clips ensure reliable positioning on any instrument while remaining gentle on all surfaces.

The KK 14 Cardioid Capsule is compatible with all major wireless systems and includes cable options for a 3.5 mm jack, Lemo, 4-pin mini-XLR, MicroDot, or wired connection. Experience the difference in sound quality and consistency with the KK 14 Cardioid Capsule for Miniature Clip Microphone System.

Neumann KK 14 Features

  • Layered capsule design overcomes former electret restrictions
  • Enhanced clarity across critical frequency ranges
  • Cardioid pattern
  • Unmatched tonal consistency
  • Road-tough and long-lasting design

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Enhance your sound with the Neumann KK 14 cardioid capsule for clear audio capture.
  • Achieve professional-grade recordings using this high-sensitivity microphone component.
  • Experience exceptional durability with its robust titanium housing, built to last.
  • Enjoy wide compatibility with the Neumann KK series for seamless integration.
  • Minimize background noise with the cardioid polar pattern, perfect for focused recording.
  • Get superior value with this Neumann capsule, ensuring top-tier audio performance.

What's in the box:

  • Neumann KK 14 Cardioid Capsule
  • Neumann 2 Year Limited Warranty
