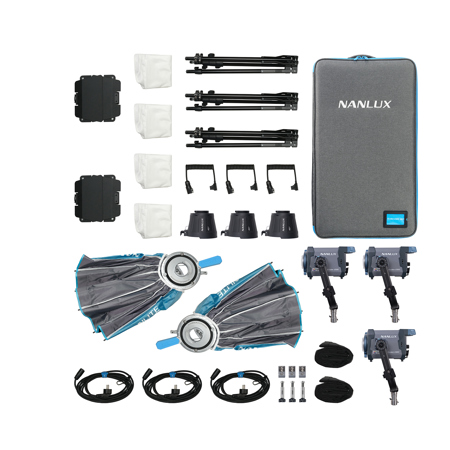

Nanlux Evoke 150C 150W Full-Color RGB LED Spotlight 3-Light Kit

The Evoke 150C is designed for on-the-go lighting and flexible setups. The compact all-in-one fixture is equipped with the proprietary Nebula C8 Light Engine, delivering wide color temperature range, broad color gamut coverage, excellent light quality, and precise dimming performance. With an IP66-rated metal construction, FE mount design, and FM mount accessory ecosystem compatibility, the Evoke 150C allows filmmakers to effortlessly handle tasks such as detail accent lighting, moving fill light and hiding the light in tight spaces, ensuring smooth operation and worry-free creativity.

Compact & Lightweight, Superior Illuminance
On-location lighting setups are often constrained by the size and weight of fixtures - a large, heavy light can be difficult to position in tight spaces and adds extra load to mounting equipment. To address this, the Evoke 150C features a compact all-in-one design and can be powered by a single V-mount battery. It can be easily concealed behind props, inside vehicle cabins, or in narrow corners, and repositioned effortlessly whenever adjustments are needed.

Compact size doesn't mean compromising on output - the Evoke 150C delivers ample brightness at just 150W. It can effortlessly be used as a fill light for large scenes, or be used as a key or rim light in small spaces, bringing expressive and precisely controlled lighting to every shot.

Light Quality Redefined
With the Nebula C8 Light Engine, multiple lighting modes and seamless dimming, the Evoke 150C can consistently deliver exceptional light quality, whether producing white or colored light, or for smooth fade-ins and fade-outs.

Nebula C8 Color Light Engine
Thanks to the Nebula C8 Light Engine, with its eight color LEDs (Deep Red, Red, Amber, Lime, Green, Cyan, Blue, Indigo) and advanced color-mixing algorithm, the Evoke 150C achieves a wider color temperature range, a broader color gamut, and higher saturation for colored lights. Compared to traditional color engines, the Nebula C8 offers higher color fidelity and better skin tone reproduction in white light, giving images a true-to-life texture and skin tones that look natural and vibrant.

Various Lighting Modes
The Evoke 150C has six built-in lighting modes, adapting to different scenarios.

• CCT Mode: Ultra wide CCT range from 1,000K to 20,000K, and supports +/-200 green/magenta adjustment across the entire range
• HSI Mode: Flexible adjustment of 360 hues with 100% saturation
• RGBW Mode: Independent tuning of the red, green, blue, and white channels for precise color matching
• XY Coordinates Mode: Offers precise color control within the CIE 1931 color space through adjustments of the X and Y coordinate values
• Gel Mode: Provides access to 230 selectable LEE gels and 230 Rosco gels
• Effect Mode: 15 dynamic effects with adjustable parameters to simulate a wide range of atmospheres and lighting scenarios

Better Dimming Performance
The Evoke 150C supports ultra-precise dimming in 0.1% increments and meets filmmakers' demand for precise control of lighting. With fully linear dimming, the Evoke 150C stays smooth at low brightness and produces natural, soft transitions when fading lights in or out.

Fast & Easy Setup
The on-set efficiency often comes from the optimization of details - faster setup, more reliable protection, and broader accessory compatibility. With this in mind, NANLUX develops the Evoke 150C from multiple aspects - including structure, materials, protection, and accessory ecosystem, integrating efficiency into every part of its design.

All-in-One Design
The Evoke 150C integrates the lamp head, control unit, and power supply into a single fixture. With just one power cable to a wall outlet or a D-Tap connection to a V-mount battery, it's ready to go.

Lightweight & Compact
With a magnesium alloy body and optimized internal structure, the Evoke 150C is lighter and more compact than most similar-powered lights with separate components.

IP66 Stormproof Protection
The entire fixture is rated IP66, built to withstand dust, sand, heavy rain, and other harsh conditions, ensuring reliable operation even in the toughest environments.

Versatile Accessory Compatibility
The fixture is designed with the new FE mount (with electronic contacts), and compatible with FM mount accessory ecosystem, allowing users to continue using most of their existing FM mount accessories. NANLUX has also developed motorized accessories for Evoke 150C, such as the motorized yoke and the motorized Fresnel lens (FL-12E), enabling precise light control when fixtures are mounted at height, rigged overhead, or positioned in hard-to-reach locations.

To meet the needs of fixed mounting, a 5/8" Baby Pin with Quick Release Plate (AS-BP-QRS) is included in the kit, which can be directly attached to the quick-release base on the side of the fixture, allowing the fixture to be easily mounted anywhere on set.

Comprehensive Connection and Control
A great fixture requires not only outstanding light quality, but also ease of use. With versatile on-board ports, structural details, and control options tailored to on-set needs and user habits, the Evoke 150C makes lighting experience more intuitive and worry-free.

Extension Port
The extension port on the fixture allows connection to control devices, signal routing, or communication with motorized accessories, giving the Evoke 150C the same control and connectivity capabilities as other Evoke series lights.

Power Input
With an integrated AC/DC input port, the fixture can be powered directly by either wall outlet (AC 100-240V) or batteries (DC 14.4-28V) without additional adapters.

USB-C port
Supports PD3.0 input and above (12-28V, 60W min) and can be connected to a PD adapter or power bank.

Dual Security
The NANLUX PosiTight system has been added to the FE mount, providing a dual-safety mechanism that ensures a secure connection between the fixture and accessory.

Single-Side Locking with Angle Display
This tilt-locking mechanism quickly and securely locks the fixture's angle, with an angle indicator that makes aligning the tilt angles of multiple fixtures easier.

Offset Yoke
Expands the tilt adjustment range when mounting large accessories, enhancing lighting setup flexibility.

V-mount Battery Holder
Allows attaching a V-mount battery to the Evoke 150C's yoke, making portable lighting easy.

1/4"-20 Threads
The fixture features three 1/4"-20 threads with anti-twist design on both sides and top, allowing the attachment of magnetic base for securing a extension adapter. They can also be used to provide additional mounting points to secure the light even more in scenarios with increased risk of it falling, such as shooting inside a moving vehicle.

Comprehensive Control Options
The Evoke 150C retains the same control logic as other Evoke series fixtures, allowing users to operate different models without having to readjust.

On-board Control
The control panel has a 2.0-inch display, two knobs for parameter adjustment, and three buttons for mode switching.

Wired Controller
The fixture can be connected to the optional wired controller (WC-EX) with an 8-meter cable for high rigs and long-distance setups. Its IP66 rating ensures reliable use in the rain.

NANLINK APP 2.0
The Evoke 150C supports flexible wireless control via Bluetooth by the Nanlink App 2.0.

DMX/RDM
The Evoke 150C supports precise multi-light control via DMX/RDM when connected with the optional DMX Extension Adapter (AS-EXT-DMX), which converts the fixture's extension port into 5-pin XLR DMX IN/OUT.

Lumen Radio CRMX
With a built-in LumenRadio Timo Two module, the Evoke 150C can be connected to the CRMX control ecosystem.

Art-Net/sACN
The Evoke 150C supports Ethernet control via the optional LAN Extension Adapter (AS-EXT-LAN), converting the extension port into LAN 1/2 for longer-distance signal transmission.

Remote Controller
The Evoke 150C can be controlled wirelessly using the optional remote controller (WS-RC-C2), allowing for quick and convenient adjustments.

NFC
The Evoke 150C pairs quickly with an NFC-enabled phone or tablet running Nanlink App 2.0, allowing batch DMX setup for multiple lights-even when they are powered off.

Reliable Cooling System
The Evoke 150C is equipped with an efficient cooling system featuring five built-in fan modes. In Smart mode, the average noise level is only 24 dB(A). Even during prolonged operation at full power, the fixture maintains quiet and stable output without interfering with on-set audio recording.
