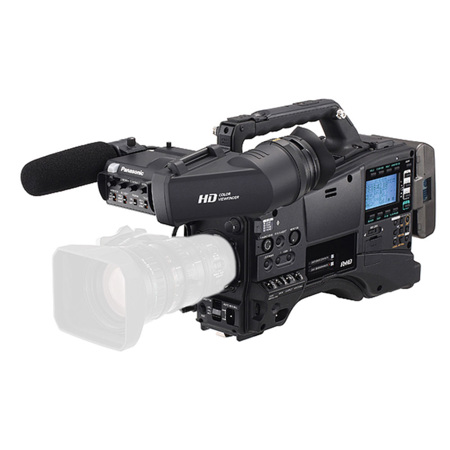

Panasonic HPX610 P2 Camera Recorder with AG-CVF15G LCD Viewfinder

High Performance and Expandable
This P2 cam combines high cost-performance, easy operation and expandable functions to meet needs in a wide range of uses, from image production to broadcasting. A 2/3-type shoulder-type model, it accommodates a variety of interchangeable lenses. And its compact body provides superb mobility with approximately 2.8 kg (6.2 lb) for the main unit. Its MOS sensor attains high F12 sensitivity (at 59.94 Hz) and low noise with an S/N of 59 dB (standard).

Multi HD/SD codecs, including AVC-Intra100/50, are equipped. In addition to these basic specifications, a wide range of functions are available as options, such as networking functions, uplink device support and a Variable Frame Rate (VFR). This enables low-cost system support for numerous and diverse applications. The AG-HPX610PJH/EJH/PJF/EJF also supports new P2HD technologies such as microP2 cards to enhance the high-speed data transfer, reliability and security.

Expandability-Optional Function Expansion
Proxy and Networking Options
Low-rate proxy files (Quick Time/H.264) with high resolution and superb sound quality are supported. This allows a PC, a Mac, a tablet or a smartphone to be used for previewing, metadata input, network transfers and even simple editing, for a cloud-based workflow that maximizes IT potential.

High-Resolution Proxy Video Supported
(With the optional AG-YDX600G Video Encoder Board)
With this option, the AG-HPX610TH/610TF records proxy files onto SD/SDHC memory cards or onto P2 cards. It supports high-quality video (Quick Time/H.264) and audio formats at a low bit rate. High-quality proxy files can be used for breaking news and other scenarios that would benefit from proxy workflows. Moreover, it streamlines the production workflow by allowing the editor to review the content details during offline editing.

Streaming with a Wireless or Wired LAN
(With the optional AG-SFU601G Upgrade Software Key [Bundled] and AJ-WM30 Wireless Module)
These options enable use of a wireless or wired (Ethernet) LAN. Proxy files can be streamed or viewed via a standard web browser on a PC/ Mac, tablet or smartphone. While viewing the streamed files, metadata can be added to the P2 files. Using a PC/Mac also enables a cloud-based workflow by uploading and sharing video data via a network.

Playlist Editing with Proxy Video on a PC or Tablet
(With the Optional AG-SFU604G Upgrade Software Key)
The AG-HPX610PJH/EJH/PJF/EJF and a device, such as a PC, a Mac or a tablet, connected to a wired or wireless network can be used for playlist editing. This greatly increases the efficiency and speed of your workflow by making it possible to handle preliminary editing with only the camera and connected device and then transfer the data wherever it is needed. Playlist editing and saving, playlist viewing and SDI output, as well as editing and copying can all be done by web apps.

Optional Uplink Device Support
Portable uplink solutions are supported. The status, settings and bandwidth condition for the LiveU LU40 Series can be displayed on the camera viewfinder and uplink start/stop can be operated. This allows the camera operator to handle live relays comfortably and securely.

Video Uplink System Supported
Support is provided for video uplink systems using ordinary phone lines. The status, settings and bandwidth condition for the LiveU LU40 Series can be displayed on the camera viewfinder and uplink start/stop can be operated by camera-operator without taking eye away from VF. This allows the camera operator to handle live relays comfortably and securely.

Optional VFR and 24PsF Production
Quick/slow-motion recording is provided by the use of a variable frame rate (frame dropping/high-speed shooting). Recording modes of 24p/30p/over 60p can be simultaneously selected, with 24 PsF output from SDI OUT to meet diverse image production needs.

Variable Frame Rate Shooting and 24PsF Output
(With the optional AG-SFU602G Production Package Upgrade Software Key)
In 720p mode, the frame rate can be set in the range of 1 fps - 60 fps and in 1080p mode it can be set to 1 fps - 30 fps. This allows the use of undercranking and overcranking to create fast-motion and slow-motion effects. Either 24p/30p Native mode or over 60p mode can be selected for recording. In addition, the 24PsF format can be output from SDI OUT for uncompressed data recording.

Performance

The high-sensitivity MOS sensor and AVC-Intra codec enable high-quality, Full-HD 10 bit 4:2:2 recording.

2/3-type Interchangeable Lenses
The 2/3-type bayonet mount interchangeable lens system lets you choose from a variety of 2/3-type zoom lenses for broadcasting and other professional uses from third-party manufacturers. Select the lens type and performance level that meet your needs.

High-Sensitivity F12 MOS Sensor
The 2/3-type MOS sensor allows you to select two modes: the NORMAL mode offering ultra low noise and the LOW LIGHT mode offering high sensitivity levels of F12 at 59.94 Hz (F13 at 50 Hz).

High-Quality Image Processing and Versatile Image Settings
• CAC (Chromatic Aberration Compensation): When using a CAC compatible lens, the small amount of circumjacent chromatic aberration (circumjacent blur) that is not corrected by the lens is compensated by this process.
• DRS (Dynamic Range Stretch): Suppresses blocked shadows and blown highlights to achieve a visually wide dynamic range
• Advanced Flash Band Compensation (FBC): High-precision flash band detection and compensation
• Gamma: Select from 7 mode (HD NORM/LOW/SD NORM/HIGH/B. PRESS/CINE-LIKE D/CINE-LIKE V) gamma curves
• Digital image settings: H Detail, V Detail, Detail Coring, Skin Tone Detail, Chroma Level, Chroma Phase, Color Temperature, Master Pedestal, Knee (LOW/MID/HIGH), Matrix (NORM1/NORM2/FLUO/CINE-LIKE).

Professional Shooting Functions
• Scan Reverse function for use with a cinema lens adapter
• Digital Zoom function for 2x and 4x close-ups
• Variable Shutter Speed from 1/12 sec to 1/2000 sec plus Synchro Scan function
• Four-position (CLEAR, 1/4 ND, 1/16 ND, 1/64 ND) optical neutral density filter wheel

Standard-Equipped, High-Quality AVC-Intra Codecs
This advanced system maintains intra-frame compression based on the new MPEG-4 AVC/H.264 moving picture compression technology. It records in AVC-Intra100 mode (1920 x 1080, 10 bit, 4:2:2) for images with full-pixel HD and full sampling and AVC-Intra50 mode (1440 x 1080, 10 bit, 4:2:0) for high-quality images at a low bit rate and for low-cost operation.

HD/SD Multi-Format and Multi-Codec Recording
• AVC Intra100/50: 1080/60i, 24pN, 30pN, 720/60p, 24pN, 30pN
• DVCPRO HD: 1080/60i, 24p, 24pA, 30p, 720/60p, 24p, 30p
• DVCPRO 50/DVCPRO/DV: 480/60i, 30p, 24p, 24pA
• 50 Hz mode: 1080/50i, 25p, 25pN, 720/50p, 25p, 25pN, 576/50i, 25p

48 kHz/16 bit, 4 Channel Digital Audio
The AG-HPX610PJH/EJH/PJF/EJF can record full 48 kHz/16 bit digital audio on all four channels. You can freely select the audio source for each channel, choosing from mic-in, line-in and wireless receiver.

P2 Card/microP2 Card - Excellent Speed, Reliability and Environmental Performance
• Reliable for broadcast-use
• Quick start
• Safety
• Re-use
• Instant playback

Versatile File-Based Recording Functions
• Double Slot system
• One-Clip rec mode
• Loop rec
• Pre-rec
• Interval rec
• One-shot rec
• Text Memo
• Shot Marker
• Metadata

Function
Comfortable operating functions, such as SmartUI and a host of system functions are included in this compact, lightweight (approximately 2.8 kg [6.2 lb]) body.

The 2/3-type Shoulder-type Model
The AG-HPX610PJH/EJH/PJF/EJF is approximately 2.8 kg (6.2 lb) for the main unit. This compact body provides superb mobility. It is also designed with excellent forward visibility.

Low Power Consumption
Power consumption for the main unit is only 18 W. This is a reduction of about 50% from their previous model, the AJ-HPX2000/2100 (36 W for the main unit only, with LCD off), which was released in 2007. The AG-HPX610PJH/EJH/PJF/EJF consumes only 22 W even with the optional AG-YDX600G Video Encoder Board and optional AG-YA600G HD/SD SDI Input Board mounted.

SmartUI - User Interface
This user interface consists of an LCD and a variety of switches. A large number of functions, including Scene File settings, Audio Level settings, Audio IN/OUT selection, Time Code settings and MON/HDMI Output Video settings, are easy to recognize and can be set with only a few steps each.

Versatile Shooting Assist Functions
• Focus Assist
• Scene Files
• Gain
• User Buttons
• Shockless White Balance
• WFM
• Zebra
• Mode check
• Y-GET
• Auto White Balance with an auto tracking white function
• User files can be saved to an SD card and shared with other cameras
• Audio input level adjustment (front) can be switched on/off and allocated to desired channels

Color LCD Viewfinder
The optional AG-CVF10G Color HD Viewfinder (cost-effective model) and AG-CVF15G Color HD Viewfinder (upper grade model) are 8.76 cm (3-1/2 inches) color LCD with approximately 920,000 dot resolution and a 16:9 aspect ratio. When opened, it serves as an LCD monitor. The optional 5.08 cm (2 inches) AJ-HVF21KG Monochrome HD Viewfinder can also be used.<
