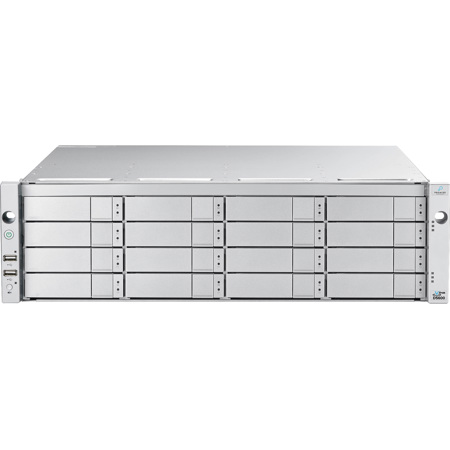

Promise Technology VTrak D5600FXD 3U 16-Bay FC/iSCSI/NAS Unified Storage System with 128TB (16x 8TB 7200rpm 12G SAS) HDD, RAID Dual HA Controllers with 4-Port 10GSFP+ and 8-Port 32Gb FC

SKU: PRD5600FXDAC MFR: D5600FXDACC
Earn VIP Reward Points

Key Features

  • Ensure data security with advanced RAID levels (0, 1, 5, 6, 10, 50, 60) for optimal protection.
  • Experience fast performance with dual HA controllers and 10GSFP+/16Gb FC connectivity.
  • Utilize this unified storage system as a NAS for file sharing or as SAN for block-level access.
  • Enjoy reliable backup and restore capabilities with snapshot and clone features for data resilience.
  • Manage your storage remotely via WEB, CLI, SSH, and SNMP interfaces for easy administration.
  • Scale your storage capacity online by expanding up to 15 JBODs for future growth needs.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Promise Technology VTrak D5600FXD Specifications

  • Form Factor

    3RU

  • Drives Capacity

    16 (LFF)

  • Host Connect Interface

    FC, iSCSI and NAS Unified Storage Sub-System
    Dual HA Controller with 4-port 10GSFP+ and 8-port 16Gb FC

  • Storage Expansion Ports

    2x 12Gb SAS Mini-SAS (SFF-8644) per controller

  • Management Ports

    2x RJ-45 1Gb Ethernet and 1 x RJ-11 Port per controller

  • Total Installed Capacity

    128TB (16x 8TB 3.5" 7200rpm 12G SAS) HDD

  • Expansion

    Online Capacity/Volume Expansion up-to 15 JBOD's

  • Max Pools/Volumes

    256 volumes per pool, Max 32 pools per System; Max 512 Snapshots / 128 Clones per volume

  • Data Services

    Snapshot
    Thin/Thick Clones
    Thick/Thin Volumes
    Read/Write Cache
    Online Capacity Expansion

  • Advanced Storage Functions

    Asymmetric LUN Unit Access (ALUA)
    LDAP for central user management
    Linux Permission, POSIX ACL,NT ACL
    Advanced Cache Mirroring over PCIe Gen3
    Microsoft AD, LDAP and OD

  • NAS Protocol

    SAN - FC Block with 16Gb FC or 10GbE iSCSI
    NAS - SMB/CIFS v2/v3, NFS v3/v4

  • RAID Levels

    0, 1, 5, 6, 10, 50, 60 RAID Stripe Support 64K, 128K, 256K, 512K and 1MB

  • Hot Spares

    Global or Dedicated

  • Background Scrub

    Media Patrol & Redundancy Check
    Background Synchronization
    Partial Rebuild
    Task Scheduler for Background Activities

  • Proactive/Predictive Functions

    Predictive Data Migration (PDM)
    Intelligent Bad Sector Remapping
    NVRAM Error Logging
    Drive Power Management (MAID)
    SMART Error Handling and Write Hole Table

  • Supported OS

    Windows Server 2008, 2012, 2016, macOS 10.x, RHEL 6.5 to 7.2, SLES 11, 11 SP4 and 12 SP1

  • Certifications

    VMware ESXi 6.5 & Citrix Server 7.3

  • Management Interfaces

    Web Based management using WEB, CLI, SSH, SNMP

  • Power Adapter

    Voltage: 100-240Vac Auto-Ranging
    Max Current: 12A at 100Vac; 4.5A at 240Vac

  • Power Efficiency

    >80% at 110V (>20% load), >80% at 240V (>20% load) Temperature Range, 80Plus Certified PSU

  • Temperature Range

    Operational: 5 to 35 deg. C (41 to 95 deg. F)
    Non-Operational: -40 to 60 deg. C (-40 to 140 deg. F)

  • Humidity

    Operational: 20% to 80%
    Non-Operational: Approx. 95% (Non-Condensing)

  • Noise Levels & Shock

    < 60dB, 25C, Operational: 5G, 11 ms Duration, Non-Operational: 30G, 11ms duration

  • Vibration

    Operational: 0.2G, 5 to 500Hz (sine wave), 0.41G, 3-10-200-500Hz (Random)
    Non-Operational: 1G, 5 to 500Hz (sine wave), 2.256G, 5-80-350-500Hz (Random)

  • Safety

    EMC Class-A: CE, FCC, VCCI, BSMI, RCM
    Safety: IEEE CB, cTUVus
    Environmental: RoHS2, GreenPC, WEEE

  • UPC Code

    704118137749

About Promise Technology VTrak D5600FXD

An advanced and sophisticated solution for data-driven businesses, the VTrak D5600FXD 3U 16-Bay FC/iSCSI/NAS Unified Storage System offers an integrated blend of high-performance hardware, adaptive storage software, and flexible protocols. This high-capacity, reliable, and robust system is optimized for high bandwidth and low latency, making it an ideal storage solution for mid-tier IT applications, surveillance, backup, and running multiple mixed workloads.

The VTrak D5600FXD is scalable up to 15 JBODs or 512 drives NAS, offering impressive 4K IOPs and sequential performance across NAS, iSCSI, and Fibre Channel. With its active-active dual controller with ALUA support, background data integrity scrub with parity rebuild, and predictive data migration, it ensures high availability and resiliency, minimizing downtime and maintenance.

Unlock the power of Flash Cache with the VTrak D5600FXD. This system delivers impressive performance by boosting throughput and lowering latency. With the option to add Flash Cache for read and write acceleration, and intelligent data caching that promotes hot data to cache in real time, you can fully benefit from flash performance.

The VTrak D5600FXD is not just for IT, it's also optimized for video application environments. With its optimization for 10Gb Ethernet via SMB/NFS protocols, it's perfect for large file data ingesting, streaming, or processing. It supports Open Directory and Active Directory, making it fully integratable into your existing networking environment.

Experience faster editing and playback of compressed video with the VTrak D5600FXD. Its enhanced cached mirroring design, auto-regeneration of data to mitigate frame drops, and optimized disk access all contribute to its blazing performance for broadcast and editing environments.

The VTrak D5600FXD is scalable, reliable, and cost-efficient. With its "pay as you grow" model, it offers long-term storage investment protection. It's not only perfect for compressed video workflow environments but also ideal for low-cost backup/archive applications. With high-availability dual controllers, hot-swappable modular disk array, and 24x7 technical support, the VTrak D5600FXD is a robust solution for your storage needs.

Promise Technology VTrak D5600FXD Features

  • High-performance, advanced VTrak D5600FXD 3U 16-Bay FC/iSCSI/NAS Unified Storage System with 128TB capacity
  • Integrated blend of robust hardware, adaptive storage software, and flexible protocols for optimized data transfer
  • Flash Cache acceleration for boosted throughput and lower latency, with option for read and write acceleration
  • Active-active dual controller with ALUA support, ensuring high availability and resiliency
  • Optimized for 10Gb Ethernet via SMB/NFS protocols for large file data ingesting, streaming, or processing
  • Supports Open Directory and Active Directory for seamless integration into existing networking environments

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Ensure data security with advanced RAID levels (0, 1, 5, 6, 10, 50, 60) for optimal protection.
  • Experience fast performance with dual HA controllers and 10GSFP+/16Gb FC connectivity.
  • Utilize this unified storage system as a NAS for file sharing or as SAN for block-level access.
  • Enjoy reliable backup and restore capabilities with snapshot and clone features for data resilience.
  • Manage your storage remotely via WEB, CLI, SSH, and SNMP interfaces for easy administration.
  • Scale your storage capacity online by expanding up to 15 JBODs for future growth needs.

What's in the box:

  • Promise Technology VTrak D5600FXD 3U 16-Bay FC/iSCSI/NAS Unified Storage System with 128TB (16x 8TB 7200rpm 12G SAS) HDD
  • Mounting Rails
  • DB9-to-RJ11 Serial Data Cable
  • Promise Technology 3 Year Limited Warranty
