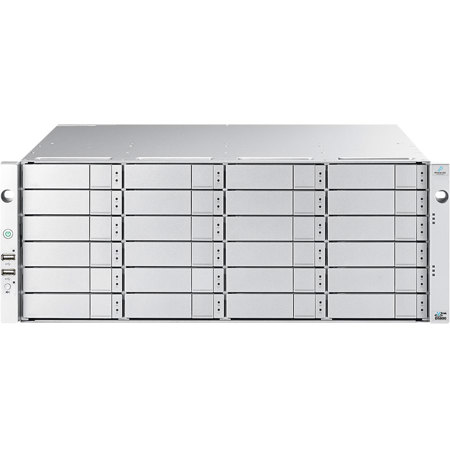

Promise Technology VTrak D5800XD 4U 24-Bay iSCSI/NAS Unified Storage System with 144TB (24x 6TB 7200rpm 12G SAS) HDD, RAID Dual HA Controllers with 4-Port 10GSFP+

SKU: PRD5800XDAFD MFR: D5800XDAFD
Earn VIP Reward Points

Key Features

  • Ensure your data's safety with the VTrak D5800XD's advanced RAID data security features.
  • Experience fast performance with the dual HA controllers and 10GSFP+ connectivity.
  • Scale your business effortlessly; this NAS server supports online capacity expansion.
  • Enjoy easy setup and management with the web-based interface for your storage system.
  • Access your files remotely with secure NAS protocols like SMB/CIFS and NFS.
  • Store massive amounts of data with a total installed capacity of 144TB HDD storage.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Promise Technology VTrak D5800XD Specifications

  • Form Factor

    4RU

  • Drives Capacity

    24 (LFF) + 4 (SFF)

  • Host Connect Interface

    iSCSI and NAS Storage Sub-System

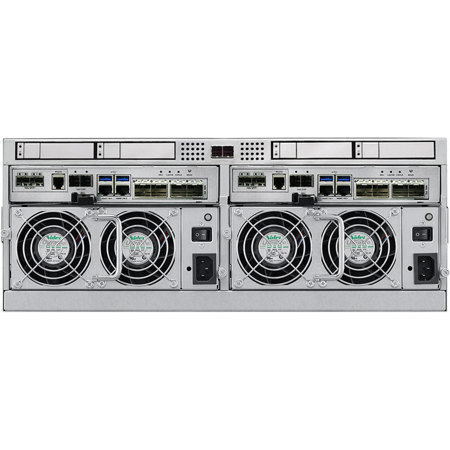

    Dual HA Controller with 4-port 10GSFP+

  • Storage Expansion Ports

    2x 12Gb SAS Mini-SAS (SFF-8644) per controller

  • Management Ports

    2x RJ-45 1Gb Ethernet and 1 x RJ-11 Port per controller

  • Total Installed Capacity

    144TB (24x 6TB 7200rpm 12G SAS)

  • Expansion

    Online Capacity/Volume Expansion up-to 15 JBOD's

  • Max Pools/Volumes

    256 volumes per pool, Max 32 pools per System; Max 512 Snapshots / 128 Clones per volume

  • Data Services

    Snapshot
    Thin/Thick Clones
    Thick/Thin Volumes
    Read/Write Cache
    Online Capacity Expansion

  • Advanced Storage Functions

    Asymmetric LUN Unit Access (ALUA)
    LDAP for central user management
    Linux Permission, POSIX ACL,NT ACL
    Advanced Cache Mirroring over PCIe Gen3
    Microsoft AD, LDAP and OD

  • NAS Protocol

    SAN - FC Block with 16Gb FC or 10GbE iSCSI
    NAS - SMB/CIFS v2/v3, NFS v3/v4

  • RAID Levels

    0, 1, 5, 6, 10, 50, 60 RAID Stripe Support 64K, 128K, 256K, 512K and 1MB

  • Hot Spares

    Global or Dedicated

  • Background Scrub

    Media Patrol & Redundancy Check
    Background Synchronization
    Partial Rebuild
    Task Scheduler for Background Activities

  • Proactive/Predictive Functions

    Predictive Data Migration (PDM)
    Intelligent Bad Sector Remapping
    NVRAM Error Logging
    Drive Power Management (MAID)
    SMART Error Handling and Write Hole Table

  • Supported OS

    Windows Server 2008, 2012, 2016, macOS 10.x, RHEL 6.5 to 7.2, SLES 11, 11 SP4 and 12 SP1

  • Certifications

    VMware ESXi 6.5 & Citrix Server 7.3

  • Management Interfaces

    Web Based management using WEB, CLI, SSH, SNMP

  • Power Adapter

    Voltage: 100-240Vac Auto-Ranging
    Max Current: 12A at 100Vac; 4.5A at 240Vac

  • Power Efficiency

    >80% at 110V (>20% load), >80% at 240V (>20% load) Temperature Range, 80Plus Certified PSU

  • Temperature Range

    Operational: 5 to 35 deg. C (41 to 95 deg. F)
    Non-Operational: -40 to 60 deg. C (-40 to 140 deg. F)

  • Humidity

    Operational: 20% to 80%
    Non-Operational: Approx. 95% (Non-Condensing)

  • Noise Levels & Shock

    < 60dB, 25C, Operational: 5G, 11 ms Duration, Non-Operational: 30G, 11ms duration

  • Vibration

    Operational: 0.2G, 5 to 500Hz (sine wave), 0.41G, 3-10-200-500Hz (Random)
    Non-Operational: 1G, 5 to 500Hz (sine wave), 2.256G, 5-80-350-500Hz (Random)

  • Safety

    EMC Class-A: CE, FCC, VCCI, BSMI, RCM
    Safety: IEEE CB, cTUVus
    Environmental: RoHS2, GreenPC, WEEE

  • UPC Code

    704118137787

About Promise Technology VTrak D5800XD

Because your business needs a high-performance, adaptive storage solution, consider the VTrak D5800XD 4U 24-Bay iSCSI/NAS Unified Storage System. This robust system is designed to power data-driven businesses with its integrated combination of top-tier hardware, flexible protocols, and adaptive storage software.

This platform is optimized for high bandwidth and low latency, making it an ideal storage solution for mid-tier IT applications, surveillance, backup, and running multiple mixed workloads. With scalability up to 15 JBODs or 512 drives NAS, it offers impressive performance metrics, including 4K IOPs of 42,334 and sequential performance of 3867MB/s reads and 3525MB/s writes for NAS, and 4K IOPs of 93,018 and sequential performance of 4214MB/s reads and 3376MB/s writes for iSCSI.

The VTrak D5800XD is designed with high availability and resiliency in mind, featuring everything redundant for zero downtime. It boasts an Active-Active Dual Controller with ALUA support for access flexibility, background data integrity scrub with parity rebuild, and Predictive Data Migration (PDM) to minimize maintenance.

Experience the power of Flash Cache with the VTrak D5800XD. This system delivers impressive performance by boosting throughput and lowering latency. Users have the option to add Flash Cache for read and write acceleration, with PROMISE intelligent data caching automatically promoting hot data to cache in real time for the full benefit of flash performance.

Not just for IT, the VTrak D5800XD is also optimized for video application environments. It's designed for 10Gb Ethernet via SMB/NFS protocols for large file data ingesting, streaming, or processing between the storage appliance and its clients. Data can also be directly transferred over the SAN via iSCSI/Fibre Channel network for higher bandwidth performance and lower latency data transfers, making it perfect for Media & Entertainment, HPC applications, and other video-centric environments.

The VTrak D5800XD supports Open Directory and Active Directory, making it fully integratable into your existing networking environment. It's designed to enhance productivity in media professionals by allowing efficient processing of compressed video, delivering best-in-class performance and reliability.

With the VTrak D5800XD, you can "pay as you grow" from 64 Tera Bytes to Peta Bytes for long-term storage investment protection. It's not only perfect for compressed video workflow environments but also ideal for low-cost backup/archive applications. The VTrak D5800XD series comes with high-availability dual controllers, hot-swappable modular disk array, and a 3-year 24x7 technical support. Expansion units can start from 2u24 small form factor to large form factor 2u12, 3u16, 4U24 and up to the high density 4u60 and 5u102 JBOD expansion options.

Promise Technology VTrak D5800XD Features

  • High-performance VTrak D5800XD 4U 24-Bay iSCSI/NAS Unified Storage System with 144TB capacity
  • Optimized for high bandwidth and low latency, ideal for mid-tier IT applications, surveillance, and backup
  • Features Active-Active Dual Controller with ALUA support, ensuring high availability & resiliency
  • Integrated Flash Cache for boosting throughput and lowering latency, with optional add-on for read and write acceleration
  • Optimized for 10Gb Ethernet via SMB/NFS protocols, perfect for large file data ingesting, streaming, or processing
  • Supports Open Directory and Active Directory, making it fully integratable into existing networking environments

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Ensure your data's safety with the VTrak D5800XD's advanced RAID data security features.
  • Experience fast performance with the dual HA controllers and 10GSFP+ connectivity.
  • Scale your business effortlessly; this NAS server supports online capacity expansion.
  • Enjoy easy setup and management with the web-based interface for your storage system.
  • Access your files remotely with secure NAS protocols like SMB/CIFS and NFS.
  • Store massive amounts of data with a total installed capacity of 144TB HDD storage.

What's in the box:

  • Promise Technology VTrak D5800XD 4U 24-Bay iSCSI/NAS Unified Storage System with 144TB (24x 6TB 7200rpm 12G SAS) HDD
  • Mounting Rails
  • DB9-to-RJ11 Serial Data Cable
  • Promise Technology 3 Year Limited Warranty
