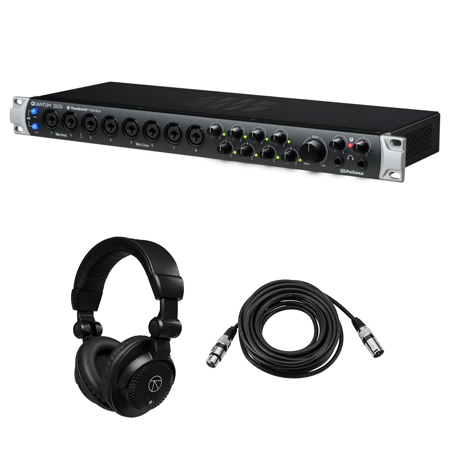

PreSonus Quantum 26x26 Thunderbolt 3 Audio Interface, Bundle with TAPH100 Monitor Headphones and 25' Microphone Cable

SKU: PRQUAN2626A MFR: 2777600102 A
Earn VIP Reward Points

PACKAGE INCLUDES:

  • PreSonus Quantum 2626 26x26 Thunderbolt 3 Audio Interface
    PreSonus Quantum 2626 26x26 Thunderbolt 3 Audio Interface
  • +
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
    Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • +
  • H&A Value Series XLR M to F Professional Microphone Cable - 25'
    H&A Value Series XLR M to F Professional Microphone Cable - 25'
  • +
  • Show more

Key Features

  • Achieve pristine audio quality with this 26x26 Thunderbolt 3 audio interface.
  • Experience ultra-low latency for seamless recording and monitoring sessions.
  • Expand your studio with versatile input/output options for any recording setup.
  • Enjoy rock-solid driver stability for uninterrupted creative workflow on Mac/PC.
  • Capture every nuance with high-resolution recording up to 192 kHz sample rate.
  • Get everything you need to start recording, including headphones and XLR cable.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

PreSonus Quantum 2626 Specifications

System Requirements

System Requirements

Jump to...
  • Mac

    Mac OS X 10.11.6 64-bit or later
    Intel Core i5 or better
    4 GB RAM (8 GB or more recommended)

  • Windows

    Windows 10 64-bit or later
    Intel Core i5 or better
    4 GB RAM (8 GB or more recommended)

  • Mac and Windows Systems

    Thunderbolt 1.0, 2.0, or 3.0 port
    Internet connection (required for Studio One Activation and Content download)
    Internal or external 7200 RPM storage drive highly recommended
    30 GB hard disk space
    Monitor with 1366x768 resolution

Microphone Preamp

Jump to...
  • Type

    XLR Female (via Combo), Balanced

  • Maximum Input Level

    +10 dBu (Balanced, min. gain)

  • Gain Control Range

    60 dB

  • Frequency Response

    20 Hz to 20 kHz ( +/-0.15 dB, unity gain, 48 kHz)

  • Dynamic Range

    > 110 dB (A-wtd, min. gain)

  • Total Harmonic Distortion

    < 0.005% (1 kHz, min. gain)

  • EIN

    < -131 dBu (max gain, 40 Ohm, 22 kHz BW, A-wtd)

  • Input Impedance

    1.6 k Ohm

  • Phantom Power

    +48V, > 8 mA per input

Instrument Inputs

Jump to...
  • Type

    1/4" TS Female (via Combo), Unbalanced

  • Maximum Input Level

    +15 dBu (Unbalanced, min. gain)

  • Gain Control Range

    60 dB

  • Frequency Response

    20 Hz to 20 kHz ( +/-0.2 dB, unity gain, 48 kHz)

  • Dynamic Range

    > 106 dB (A-wtd, min. gain)

  • Total Harmonic Distortion

    < 0.005% (1kHz, min. gain)

  • Input Impedance

    > 1 M Ohm

Line Inputs

Jump to...
  • Type

    1/4" TRS Female (via Combo), Balanced

  • Maximum Input Level

    + 18 dBu (Balanced, min. gain)

  • Frequency Response

    20 Hz to 20 kHz ( +/-0.05 dB, unity gain, 48 kHz)

  • Dynamic Range

    > 118 dB (A-wtd, min. gain)

  • Total Harmonic Distortion

    < 0.005% (1 kHz, min. gain)

  • Input Impedance

    10 k Ohm

Main and Line Outputs

Jump to...
  • Type

    1/4" TRS Female, impedance balanced, DC Coupled (Line Outputs only)

  • Maximum Output Level

    +18 dBu (Balanced)

  • Frequency Response

    20 Hz to 20 kHz (+/-0.05 dB, unity gain, 48 kHz)

  • Dynamic Range

    > 118 dB (A-wtd)

  • Total Harmonic Distortion

    < 0.0035% (1 kHz, +4 dBu)

  • Output Impedance

    51 Ohm

Headphone Outputs

Jump to...
  • Type

    2x 1/4" TRS Female, Stereo, Unbalanced

  • Maximum Output Level

    175 mW/channel (56 Ohm load)

  • Frequency Response

    20 Hz to 20 kHz ( +/-0.5 dB, 48 kHz)

  • Dynamic Range

    > 110 dB (A-wtd)

  • Total Harmonic Distortion

    < 0.03% (1 kHz)

  • Headphone Impedance (working range)

    16 Ohm to 300 Ohm

Crosstalk

Jump to...
  • Input to Input

    < -110 dB

  • Output to Output

    < -115 dB

  • Input to Output

    < -120 dB

Signal Level LEDs

Jump to...
  • Clip

    -0.5 dBFS

  • Signal

    -50 dBFS

Digital Audio

Jump to...
  • Connection Type

    Thunderbolt 3 (Thunderbolt 1 and 2 compatible)

  • ADC Dynamic Range

    115 dB (A-wtd)

  • DAC Dynamic Range

    115 dB (A-wtd)

  • Bit Depth

    24 bits

  • Internally Supported Sample Rates

    44.1, 48, 88.2, 96, 176.4, 192 kHz

  • Jitter

    < 70 ps RMS (20 Hz - 20 kHz)

  • Jitter Attenuation

    > 60 dB (1 ns in => 1 ps out)

Physical

Jump to...
  • Color

    Black

  • Power

    12 VDC, 5A, external power supply

  • Dimensions (H x D x W)

    1.75 x 7 x 19" (44.4 x 177.8 x 482.6mm)

  • Weight

    6 lbs (2.72kg)

  • UPC Codes

    192223275744, 192223075498, 673454006739, 192223227576

Related Articles & Videos

NAMM 2020: Presonus Unveils New ioStaion 24c & Quantum 2626 Audio Interfaces

NAMM 2020: Presonus Unveils New ioStaion 24c & Quantum 2626 Audio Interfaces

To kick off the new year the right way, Presonus has announced the release of two new incredible audio interfaces to the world at NAMM 2020: the ioStation 24c and Quantum 2626. Read more

9 Accessories for PreSonus Quantum 26x26 Thunderbolt 3 Audio Interface, Bundle with TAPH100 Monitor Headphones and 25' Microphone Cable

  • All Accessories (9)
  • Microphones & Audio (6)
  • Headphones (3)

About PreSonus Quantum 2626

With a barely measurable round-trip latency of less than 1 ms, it's no wonder Sound on Sound magazine dubbed Quantum-series Thunderbolt audio interfaces the "fastest audio interface on the planet." The Quantum 2626 uses the Thunderbolt 3 bus and PreSonus' proprietary driver to achieve the lowest round-trip latency of any audio interface (as low as <1 ms). Now you can record and monitor with up to 24-bit, 192 kHz fidelity through your favorite plug-ins, without leaving the DAW.

The Quantum 2626 provides up to 26 audio inputs and 26 outputs, with 8 of PreSonus' lauded XMAX Class A analog microphone preamps. High-quality converters on every analog input and output provide 115 dB of dynamic range, with superior low-jitter clocking, to capture complex musical harmonics smoothly and naturally with no audible distortion. The result is the superb audio quality sought by working professionals. You also get MIDI I/O and BNC word clock I/O that ensures tight sync with other digital audio devices. The interface is well protected by a 1U rack-mountable, rugged, all-metal chassis with metal knobs.

With the included Studio One Pro perpetual license, the Quantum 2626 is a complete recording solution. The interface also is compatible with virtually any recording software for macOS or Windows. Free PreSonus Universal Control software provides access to full metering and an integrated real-time analyzer (RTA).

Studio One Pro 7 DAW Software Included.
Your hardware registration includes a perpetual License to Studio One Pro.

About XMAX preamps.
PreSonus' famed XMAX Class A preamps have no crossover distortion and deliver pure, clear, musical results. They run on high-voltage power rails to deliver more headroom, deeper lows, smoother highs and a richer overall sound. We only use discrete components for accuracy and transparency - not op-amps that can add noise, coloration and harshness.

All the connectivity you need.
The Quantum 2626 provides two combo mic/instrument inputs (with direct outs and returns for patching outboard gear) and six balanced mic/line inputs. Another 18 inputs and outputs are available via ADAT/dual SMUX and S/PDIF. Eight 1/4-inch TRS outputs are DC-coupled for sending control voltages, plus two Main outs, two headphone outs, and MIDI I/O.

PreSonus Quantum 2626 Features

  • 26x26 Thunderbolt 3 ultra-low-latency (as low as <1 ms roundtrip)
  • 24-bit/192 kHz operation with high-quality 115 dB A/D/A converters
  • Simultaneous I/O up to 26 inputs / 26 outputs (at 44.1 or 48 kHz)
  • 2 mic/instrument inputs with preamp direct outputs with returns and 6 balanced mic/line inputs, all with PreSonus's famed XMAX preamps
  • 2 balanced stereo main outputs with independent level control; 8 DC-coupled, balanced line outputs; and dual headphone outputs with independent level control
  • ADAT Optical/Dual SMUX inputs/outputs: 16x16 channels at 44.1 or 48 kHz; 8x8 channels at 88.2 or 96 kHz
  • Stereo S/PDIF coaxial input and output
  • MIDI I/O and BNC word clock I/O with low-jitter clocking
  • Professional Recording Software Included - Studio One Pro License
  • 1U rack-mountable, with all-metal chassis and metal knobs

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve pristine audio quality with this 26x26 Thunderbolt 3 audio interface.
  • Experience ultra-low latency for seamless recording and monitoring sessions.
  • Expand your studio with versatile input/output options for any recording setup.
  • Enjoy rock-solid driver stability for uninterrupted creative workflow on Mac/PC.
  • Capture every nuance with high-resolution recording up to 192 kHz sample rate.
  • Get everything you need to start recording, including headphones and XLR cable.

What's in the box:

  • PreSonus Quantum 26x26 Thunderbolt 3 Audio Interface
  • 12 VDC External Power Supply
  • Studio One Pro 7 DAW Software
  • PreSonus 1 Year Warranty
  • Bundle Includes:
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • H&A Value Series 25' XLR M to F Professional Microphone Cable
