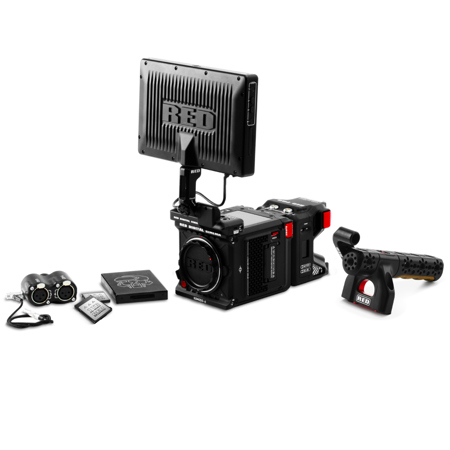

RED Digital Cinema KOMODO-X 6K S35 DSMC3 Camera Production Pack, V-Lock

- KOMODO-X Camera -
KOMODO-X is the next evolution in the KOMODO family, multiplying the frame rates, dynamic range, and usability of the original KOMODO to break new grounds.

Next Generation KOMODO Sensor
KOMODO-X features the same sized 6K S35 Global Shutter sensor as the KOMODO, but with a ground up redesign and key architecture improvements.

Improved detail and color in shadows, paired with double the frame rates at 6K 80P and 4K 120P makes KOMODO-X an even more powerful tool for creatives.

Enhanced Body And I/O
With key improvements for professional workflows, the KOMODO-X now shares many features with the DSMC3 line while still maintaining the impressively small KOMODO form factor. An integrated micro V-Lock allows for direct attachment of professional micro V-Lock batteries without the need for adapters and is also compatible with the upcoming RED Pro I/O Module to provide auxiliary power and compatibility with full sized V-Lock and Gold Mount batteries.

A reinforced RF lens mount with locking mechanism maintains the flexibility of toolless switching between multiple lens mount types, while providing the stability and rigidity professionals need. KOMODO-X is also fully compatible with /i PL lenses using the RED RF to PL Adapter.

12G SDI, full sized DC-IN, USB Type-C, and a phantom powered locking audio connector further enables KOMODO-X to seamlessly integrate into any professional workflow. KOMODO-X is compatible with DSMC3 RED 5-Pin to Single 3.5mm Adapter to support existing KOMODO microphones, or the DSMC3 RED 5-Pin to Dual XLR Adapter for general purpose XLR microphones.

An integrated 2.9" LCD allows for simplified control and image preview in compact setups. For more precise monitoring, KOMODO-X supports the DSMC3 RED Touch 7.0" LCD which provides a daylight viewable, high-resolution, camera top monitor and control solution without the mess of cables.

IP Connected
KOMODO-X is a powerful platform for any IP based workflow, from virtual production to live broadcast. With integrated USB Type-C connection and built-in Wi-Fi, remotely control the camera using RED Control or RED Control Pro, as well as IP media offloading using FTPS or in-camera Cloud Uploading functionality (Frame.io and S3). In addition, KOMODO-X supports frame-accurate PTP synchronization or tri-level genlock sensor sync with the ability to offset on the fly to support multi-camera LED volume productions.KOMODO-X also supports RED Connect, a licensed feature that allows for live broadcasting of 6K images directly from the camera over IP, expanding RED's cinematic imagery into boundless new uses.

- RED Pro I/O V-Lock Module -
The RED Pro I/O V-L ock Module offers a variety of Input/Output connections, as well as an industry standard V-Lock mount to power your KOMODO-X with higher capacity batteries. This module mounts directly to the KOMODO-X's rear Micro V-Lock plate, 9-Pin EXT Port and offers connections for the following:

• DC Power Input (DC-IN)
• Genlock (BNC)
• CTRL (4-Pin)
• Timecode (5-Pin)
• 1x 3-Pin 24v (Regulated) Fischer R/S port (3A Max)
• 2x 2-Pin 12v (Un-Regulated) AUX ports (3A Combined Max)

The module also includes an operator side LCD which displays key power voltage and battery percentage information (with compatible batteries) and a power switch to cut power to the module when leaving a battery on the module for long durations.

Designed for KOMODO-X and Compatible with V-RAPTOR.

- PRO 1TB CFexpress 2.0 Type-B Memory Card -
Designed in collaboration with Angelbird Technologies to specifically meet the high-performance needs of the V-RAPTOR system and 8K acquisition, the RED PRO CFexpress 1TB are the official certified media cards for the V-RAPTOR camera system. The media is CFexpress 2.0 Type B compliant and supports precision recording of high bit-rate files with industrial-grade performance and durability extended through the capacity of the card.

Note: RED PRO CFexpress is not compatible with DSMC, DSMC2, RED RANGER or KOMODO camera systems.

- CFexpress Card Reader -
The RED CFexpress Card Reader is designed exclusively for offloading data from RED PRO CFexpress 1TB media cards to your workstation. Connect to your camera via USB 3.2 Gen 2x2 for fast ingestion of CFexpress (20 Gb/s).

For additional data safety, flip on the write-protect switch located at the back of the card reader.

- DSMC3 RED Touch 7" LCD Monitor -
The DSMC3 RED Touch 7.0" LCD offers an HD viewing experience for recording and viewing footage on the V-RAPTOR camera system. A 1920 x 1200 resolution display panel with peak brightness of 1300 nits and high pixel density (at 322 ppi), not only provides the optimal experience when viewing footage, but also features 100% DCI-P31 Color Gamut coverage for tremendous color accuracy. The monitor also features full control over the camera via the new responsive menu system powered by SmallHD PageOS, bringing features like Waveform, Vectorscope, Histogram, False Color, Color Picker, Pixel Zoom & more.

The lightweight display features a removable integrated tilt arm with the capability to rotate 180 degrees for versatile mounting options. It also boasts the latest generation pogo pins to provide power and video to the monitor in addition to the ability to connect via a single-locking USB-C style DSMC3 RMI Cable for video and power. No additional SDI or power cables are needed.

Compatibility: The DSMC3 RED Touch 7.0" LCD is not compatible with DSMC, DSMC2, RED RANGER or KOMODO camera systems.f

- RED Compact Top Handle -
The RED Compact Top Handle easily mounts to the top of the KOMODO, KOMODO-X, V-RAPTOR or V-RAPTOR XL camera bodies while offering a combination of comfort and utility for carrying or shooting with your camera. This top-mounted machined handle features ergonomic Bocote wood inlays with camera trigger control. The handle includes: handle trigger, rear 3" piece, front 1" piece and 15mm Monitor Mount.

Compatibility: The RED Compact Top Handle is not compatible with DSMC, DSMC2 or RED RANGER camera systems.

- DSMC3 RED 5-Pin to Single 3.5mm Adapter -
The DSMC3 5-Pin to Single 3.5mm Adapter is an 11.3" (28.9cm) cable designed to break out the 5-Pin ODU port to a single 3.5mm TRS input allowing for 3.5mm audio devices to be connected.

Compatibility: The DSMC3 RED 5-Pin to Single 3.5mm Adapter is compatible with KOMODO-X, V-RAPTOR, and V-RAPTOR XL camera systems.
