The MX202 Microflex Overhead Microphone comes with interchangeable cartridges. You can choose from cardioid, supercardioid, or mini-shotgun condenser microphone cartridges depending on your specific recording needs.
The MX202 Microflex Overhead Microphone comes with a generous 30-foot cable, providing you with the flexibility to position the microphone exactly where you need it.
The MX202 Microflex Overhead Microphone is available in two color options - sleek black and bright white.
The flexible, four-inch gooseneck on the MX202 Microflex Overhead Microphone allows you to easily adjust the position of the microphone to suit your recording setup.
The MX202 Microflex Overhead Microphone is manufactured by Shure, a well-known and reputable brand in the audio industry known for producing high-quality audio equipment.
Review Summary
Black, White
Condenser (electret bias)
50 Hz - 17 kHz
MX202/C: Cardioid
MX202/O: Omnidirectional
MX202/S: Supercardioid
MX202/MS Lobar mini-shotgun
150 Ohm rated at EIA (180 Ohm actual)
At 1 kHz , open circuit voltage; 1 Pascal = 94 dB SPL:
Cardioid: -35.0 dBV/Pa (17.8 mV)
Supercardioid: -33.5 dBV/Pa (21.1 mV)
Omnidirectional: -27.5 dBV/Pa (42.2 mV)
Lobar: -33 dBV/Pa (22 mV)a
1 kHz at 1% THD, 1 kOhm load; All values +6 dB at 0 gain:
Cardioid: 124.2 dB
Supercardioid: 122.7 dB
Omnidirectional: 116.7 dB
Lobar: 121 dB SPL
Cardioid: 28.0 dB SPL
Supercardioid: 26.5 dB SPL
Omnidirectional: 20.5 dB SPL
Lobar: 36 dB
Referenced at 94 dB SPL:
Cardioid: 66.0 dB
Supercardioid: 67.5 dB
Omnidirectional: 73.5 dB
Lobar: 68 dB
96.2 dB
100 dB at 0 gain (internal modification)
45 dB minimum, 10 Hz to 100 kHz
1% THD: -6 dBV (0.5 V)
Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector.
11 - 52 Vdc phantom, 2.0 mA
Operating temperature range: 0-135 Degree F (-18 Degree C - 57 Degree C)
Relative humidity: 0 - 95%
TA4F 4-socket female (in-line preamp models); bare ends (plate-mounted preamp models); Screw Terminal 3-Pin Male (screw models)
30' (9.1m)
042406579445
Overhead microphone delivers clear, accurate audio with interchangeable cartridges and an unobtrusive, bright white or black design.

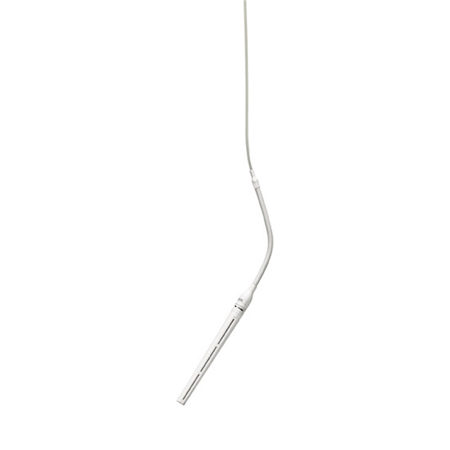

It is hard to believe that such small, unobtrusive microphones can produce such great sound, but it's true. Available in black or bright-white finishes, and with in-line or plate mount preamps, MX202 Microflex Overhead condenser microphones capture high-quality sound in a compact, adjustable package. Each model features a choice of interchangeable cardioid, supercardioid, or mini-shotgun condenser microphone cartridges attached to a flexible, four inch gooseneck with a 30 foot cable.
Cartridge polar pattern indicated by model number suffix:
C = Cardioid, S = Supercardioid, N = No cartridge, MS = Mini-Shotgun
