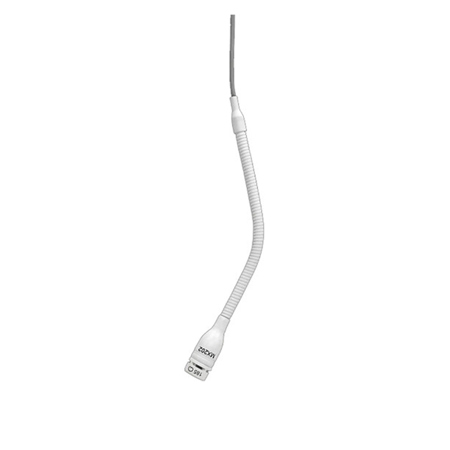

Shure MX202 Microflex Overhead Microphone In-Line Preamp White Supercardioid
See all Shure items
29% Off

Shure MX202 Microflex Overhead Microphone In-Line Preamp White Supercardioid

SKU: SHMX202WAS MFR: MX202W-A/S
Be the first to review this itemAsk a Question
$256.00
$359.00
Save: $103 (29%)
OR
$43/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points
See all Used options (1) from $179

Key Features

  • Capture crystal-clear audio with the Shure MX202 overhead microphone, perfect for choirs.
  • Choose your ideal sound with cardioid, supercardioid, or omnidirectional polar pattern options.
  • Enjoy a wide 50 Hz - 17 kHz frequency response for natural and detailed sound reproduction.
  • The low-noise design ensures clean recordings, minimizing distractions in quiet settings.
  • Withstands high sound pressure levels up to 124.2 dB, ideal for loud environments.
  • Includes a 30' cable and mounting hardware for easy setup in various locations.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$29.99
2-Year Adorama Protect$49.99
3-Year Adorama Protect$59.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What makes the MX202 Microflex Overhead Microphone unique?

The MX202 Microflex Overhead Microphone is unique due to its interchangeable cartridges, allowing you to customize your audio capture based on your specific needs. It also features a flexible, four-inch gooseneck with a 30-foot cable, offering versatility in various settings.

What are the different cartridge options for the MX202 Microflex Overhead Microphone?

The MX202 Microflex Overhead Microphone offers interchangeable cardioid, supercardioid, or mini-shotgun condenser microphone cartridges. The cartridge polar pattern is indicated by the model number suffix: C for Cardioid, S for Supercardioid, N for No cartridge, and MS for Mini-Shotgun.

In what settings is the MX202 Microflex Overhead Microphone most effective?

The MX202 Microflex Overhead Microphone is ideal for use in conference rooms, lecture halls, and live performance settings. It's designed to capture sound from a specific direction while minimizing background noise, making it a great choice for these environments.

What colors does the MX202 Microflex Overhead Microphone come in?

The MX202 Microflex Overhead Microphone is available in either sleek black or bright white finishes.

What is the length of the cable that comes with the MX202 Microflex Overhead Microphone?

The MX202 Microflex Overhead Microphone comes with a 30-foot cable, offering you the flexibility and reach you need in various settings.

Reviews about this item

Review Summary

Shure MX202WP-A/C Specifications

  • Available Colors

    Black, White

  • Type

    Condenser (electret bias)

  • Frequency Response

    50 Hz - 17 kHz

  • Polar Pattern

    MX202/C: Cardioid
    MX202/O: Omnidirectional
    MX202/S: Supercardioid
    MX202/MS Lobar mini-shotgun

  • Output Impedance

    150 Ohm rated at EIA (180 Ohm actual)

  • Sensitivity

    At 1 kHz , open circuit voltage; 1 Pascal = 94 dB SPL:
    Cardioid: -35.0 dBV/Pa (17.8 mV)
    Supercardioid: -33.5 dBV/Pa (21.1 mV)
    Omnidirectional: -27.5 dBV/Pa (42.2 mV)
    Lobar: -33 dBV/Pa (22 mV)a

  • Maximum SPL

    1 kHz at 1% THD, 1 kOhm load; All values +6 dB at 0 gain:
    Cardioid: 124.2 dB
    Supercardioid: 122.7 dB
    Omnidirectional: 116.7 dB
    Lobar: 121 dB SPL

  • Equivalent Output Noise A-weighted

    Cardioid: 28.0 dB SPL
    Supercardioid: 26.5 dB SPL
    Omnidirectional: 20.5 dB SPL
    Lobar: 36 dB

  • Signal-to-Noise Ratio

    Referenced at 94 dB SPL:
    Cardioid: 66.0 dB
    Supercardioid: 67.5 dB
    Omnidirectional: 73.5 dB
    Lobar: 68 dB

  • Dynamic Range 1kOhm load @ 1kHz

    96.2 dB
    100 dB at 0 gain (internal modification)

  • Common Mode Rejection

    45 dB minimum, 10 Hz to 100 kHz

  • Preamplifier Output Clipping Level

    1% THD: -6 dBV (0.5 V)

  • Polarity

    Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector.

  • Power Requirements

    11 - 52 Vdc phantom, 2.0 mA

  • Environmental Requirements

    Operating temperature range: 0-135 Degree F (-18 Degree C - 57 Degree C)
    Relative humidity: 0 - 95%

  • Termination

    TA4F 4-socket female (in-line preamp models); bare ends (plate-mounted preamp models); Screw Terminal 3-Pin Male (screw models)

  • Cable Length

    30' (9.1m)

  • UPC Code

    042406579445

About Shure MX202WP-A/C

Overhead microphone delivers clear, accurate audio with interchangeable cartridges and an unobtrusive, bright white or black design.

It is hard to believe that such small, unobtrusive microphones can produce such great sound, but it's true. Available in black or bright-white finishes, and with in-line or plate mount preamps, MX202 Microflex Overhead condenser microphones capture high-quality sound in a compact, adjustable package. Each model features a choice of interchangeable cardioid, supercardioid, or mini-shotgun condenser microphone cartridges attached to a flexible, four inch gooseneck with a 30 foot cable.

Cartridge polar pattern indicated by model number suffix:
C = Cardioid, S = Supercardioid, N = No cartridge, MS = Mini-Shotgun

Shure MX202WP-A/C Features

  • Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
  • Interchangeable cartridges that provide an optimal polar pattern choice for each application
  • Balanced, transformerless output for increased immunity to noise over long cable runs
  • Supplied stand-mount adapter for portable applications (in-line preamplifier versions only)
  • Bright-white or black finish that blends unobtrusively with most surroundings
  • Preamp options available offer easy installation in ceilings or microphone stands
  • When combined with the high sensitivity cartridge's wide frequency response, these microphones provide accurate sound reproduction with minimum RF interference or electromagnetic hum

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Capture crystal-clear audio with the Shure MX202 overhead microphone, perfect for choirs.
  • Choose your ideal sound with cardioid, supercardioid, or omnidirectional polar pattern options.
  • Enjoy a wide 50 Hz - 17 kHz frequency response for natural and detailed sound reproduction.
  • The low-noise design ensures clean recordings, minimizing distractions in quiet settings.
  • Withstands high sound pressure levels up to 124.2 dB, ideal for loud environments.
  • Includes a 30' cable and mounting hardware for easy setup in various locations.

What's in the box:

  • Shure MX202 Microflex Overhead Microphone
  • Snap-Fit Windscreen
  • 30' Cable
  • Mounting Hardware
  • Shure 2 Year Limited Warranty
