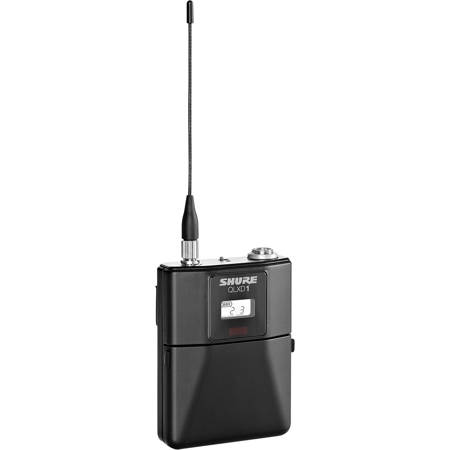

Shure QLXD1 Digital Wireless Bodypack Transmitter V50: 174-216MHz
See all Shure items
20% Off

Shure QLXD1 Digital Wireless Bodypack Transmitter V50: 174-216MHz

SKU: SHQD1V50 MFR: QLXD1=-V50
Be the first to review this itemAsk a Question
$395.00
$493.00
Save: $98 (20%)
OR
$66/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience superior audio clarity with this Shure digital wireless bodypack transmitter.
  • Enjoy up to 9 hours of battery life using standard AA batteries for reliable performance.
  • The rugged metal housing ensures durability, making it perfect for demanding stage use.
  • Achieve a clear signal with adjustable gain settings on your wireless microphone system.
  • Operate confidently within a 300-foot range, ideal for large venues and presentations.
  • Seamlessly integrates with Shure QLX-D systems for professional-grade audio solutions.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$39.99
2-Year Adorama Protect$69.99
3-Year Adorama Protect$79.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What type of batteries does the QLXD1 Wireless Bodypack Transmitter use?

The QLXD1 Wireless Bodypack Transmitter operates using two AA batteries, providing long-lasting power for extended use.

Can the QLXD1 be used with any wireless receiver?

The QLXD1 is designed to be compatible with Shure wireless systems. For best performance, it should be used with a receiver that operates within the same frequency range and is designed to work with the QLXD1.

Is the QLXD1 Wireless Bodypack Transmitter suitable for outdoor events?

Yes, the QLXD1 is built to be durable and compact, making it an excellent choice for outdoor events as long as it is used within the range of the receiver and under conditions that do not expose it to moisture or extreme temperatures.

How do I sync the QLXD1 transmitter with a receiver?

To sync the QLXD1 transmitter with a receiver, simply power on both devices, press the sync button on the receiver, and then align the IR ports of the transmitter and receiver until the sync is confirmed by the receiver's display.

What is the maximum range of the QLXD1 Wireless Bodypack Transmitter?

The QLXD1 transmitter offers a generous range, but the exact maximum distance will depend on various factors such as environment, line of sight, and potential RF interference. For optimal performance, always maintain a clear path between the transmitter and receiver.

Shopper : Why Did You Choose This?JUDY M : Replacement of the one we had

Reviews about this item

Review Summary

Shure QLXD1 Specifications

General

General

Jump to...

  • Available Frequency

    G50: 470-534MHz
    H50: 534-598MHz
    J50A: 572-616MHz
    V50: 174-216MHz
    X52: 902-928MHz

  • Mic Offset Range

    0 to 21 dB (in 3 dB steps)

Audio Input

Jump to...

  • Connector

    4-Pin male mini connector (TA4M)

  • Configuration

    Unbalanced

  • Impedance

    1 M Ohm

  • Maximum Input Level

    8.5 dBV (7.5 Vpp) (1 kHz at 1% THD)

  • Preamplifier Equivalent Input Noise

    -120 dBV, A-weighted, typical (System Gain Setting >= +20)

RF Output

Jump to...

  • Connector

    SMA

  • Antenna Type

    1/4 wave

  • Impedance

    50 Ohm

  • Occupied Bandwidth

    < 200 kHz

  • Modulation Type

    Shure proprietary digital

  • Power

    1 mW or 10 mW

Battery

Jump to...

  • Battery

    Shure SB900A Rechargeable Li-Ion or AA batteries 1.5 V

  • Battery Runtime @ 10 mW

    Shure SB900A: Up to 10 hours
    Alkaline: Up to 9 hours

  • Battery Info

    Required, Not Included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

Physical

Jump to...

  • Housing

    Cast Aluminum

  • Dimensions (H x W x D)

    3.38 x 2.55 x 0.90" (86 x 65 x 23mm)

  • Weight

    Without Batteries: 4.86 oz (138g)

Other

Jump to...

  • UPC Code

    042406346719

About Shure QLXD1

Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD1 Wireless Bodypack Transmitter is ideal for wireless vocals and instruments in mid-size presentation spaces, music venues, and houses of worship. Easy to use, the QLXD1 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330 ft.) range. All metal construction ensures durability, and a wide selection of compatible microphone choices offer legendary Shure sound signatures.

Shure QLXD1 Features

  • Over 120 dB of dynamic range: no transmitter gain adjustments needed
  • AES 256-bit encryption for secure transmission
  • Optional Shure SB900B lithium ion rechargeable battery reports remaining runtime in hours and minutes
  • External charging contacts for docked charging
  • Backlit LCD with easy to navigate menu and controls
  • Selectable display mode showing group/channel, frequency, or battery runtime
  • 4-Pin male mini connector (TA4M)
  • Rugged metal construction
  • Detachable 1/4 wave antenna
  • Frequency and power lockout

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior audio clarity with this Shure digital wireless bodypack transmitter.
  • Enjoy up to 9 hours of battery life using standard AA batteries for reliable performance.
  • The rugged metal housing ensures durability, making it perfect for demanding stage use.
  • Achieve a clear signal with adjustable gain settings on your wireless microphone system.
  • Operate confidently within a 300-foot range, ideal for large venues and presentations.
  • Seamlessly integrates with Shure QLX-D systems for professional-grade audio solutions.

What's in the box:

  • Shure QLXD1 Digital Wireless Bodypack Transmitter
  • Antenna
  • 2x AA Batteries
  • Zippered Pouch
  • Shure 2 Year Limited Warranty
