Shure SLXD15/85 + SM63-LB Specifications

General

General

Jump to...
  • RF Frequency Band

    H55: 514-558MHz

SLXD1 Transmitter: Audio Input

Jump to...
  • Connector

    4-Pin male mini connector (TA4M)

  • Configuration

    Unbalanced

  • Impedance

    1 M Ohm

  • Maximum Input Level

    8.2 dBV (2.57 Vrms, 7.27 Vpp)

  • Preamplifier Equivalent Input Noise

    -118 dBV (EIN)

SLXD1 Transmitter: RF Input

Jump to...
  • Antenna Type

    1/4 Wave

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

SLXD1 Transmitter: Power

Jump to...
  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

SLXD1 Transmitter: Physical

Jump to...
  • Housing

    PC/ABS

  • Dimensions (H x W x D)

    3.86 x 2.68 x 1" (98 x 68 x 25.5mm)

  • Weight

    3.1 oz (89g)

SLXD5 Receiver: RF Input

Jump to...
  • Spurious Rejection

    >75 dB Typical

  • Impedance

    50 Ohm

  • Phantom Power Protection

    Yes

  • Antenna Type

    1/4 Wave Whip

SLXD5 Receiver: Audio Output

Jump to...
  • Audio Frequency Response

    20 Hz - 20 kHz (+1, -3 dB)

  • Connector Type

    1/8" (3.5 mm), x2

  • Configuration

    Balanced (Mono): Tip=audio +, Ring=audio -, Sleeve=ground

    Dual Mono: Tip = left, Ring = Right, Sleeve = Ground

  • Impedance (Camera)

    Balanced (Mono) Line: 450 Ohm
    Balanced (Mono) Mic: 240 Ohm
    Dual Mono Line: 400 Ohm
    Dual Mono Mic: 200 Ohm

  • Full Scale Output

    Camera (Balanced Line): 15 dBV
    Headphone: 13 mW @ 64 Ohm Load

SLXD5 Receiver: Power

Jump to...
  • Power Requirements

    Battery: Rechargeable Li-Ion or 1.5 V AA batteries
    Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C

SLXD5 Receiver: Physical

Jump to...
  • Housing

    Aluminum

  • Dimensions (H x W x D)

    4.21 x 2.68 x 1" (107 x 68 x 25.3mm)

  • Weight

    1.8 lbs (182g)

Microphone: General

Jump to...
  • Form Factor

    Lavalier

  • Sound Field

    Mono

  • Polar Pattern

    Cardioid

  • Pad

    No

  • High-Pass Filter

    No

Microphone: Performance

Jump to...
  • Frequency Range

    50 Hz to 17 kHz

  • Maximum SPL

    130.5 dB SPL

  • Sensitivity

    -45.5 dBV/Pa

  • Dynamic Range

    102.5 dB

Microphone: Connectivity

Jump to...
  • Output Connector

    1 xTA4F/Mini-XLR 4-Pin Female

  • Cable Length

    4' (1.22m)

Microphone: Power

Jump to...
  • Power Sources

    Plug-In Power

  • Operating Voltage

    1.5 to 10 V

Microphone: Physical

Jump to...
  • Color

    Black

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    6

  • UPC Code

    192223243408

33 Accessories for Shure SLXD15/85 Portable Digital Wireless Microphone System with WL185 Lavalier, SM63-LB Handheld Microphone and SLXD3 Plug-On Transmitter, H55: 514-558MHz

  • All Accessories (33)
  • Lavalier Microphone (4)
  • Bags & Cases (1)
  • Straps & Slings (1)
  • Batteries & Power Supply (13)
  • Cables & Adapters (5)
  • Headphones (3)
  • Headsets (2)
  • Microphones (2)
  • Cleaning Accessories (1)
  • Transmitter (1)

About Shure SLXD15/85 + SM63-LB

SLX-D Portable Digital Wireless

Whether you’re a professional videographer, a field production specialist or a location sound mixer, stress-free audio capture is your calling card. Wherever the work takes you, SLX-D Portable lets you bring the rock-solid RF performance and flawless digital audio of SLX-D Digital Wireless with you. Locations can be unpredictable. Wireless audio shouldn’t be.

Get the shot. Capture the sound. Every time.

Hard-Working Wireless, When And Where You Need It

From weddings to live streams, great video is nothing without great audio.

SHSLXD15

Superior Audio Experiences

Bring the great audio experiences of the SLX-D Digital Wireless platform to your productions.

SHSLXD15

High-Performing Wireless Audio

Outstanding spectral efficiency and rock-solid RF performance deliver flawless wireless audio, time after time. Locations are Unpredictable. Wireless Audio Shouldn’t Be.

SHSLXD15

Fast & Intuitive Setup: Scan, Sync, and Go

SLX-D Portables have innovative set-up features that get you going at a moment’s notice. Flexible and user-friendly, SLX-D Portables capture the sound, every time.

SHSLXD15

Features

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over scan and IR sync

With the SLXD15/85 Portable Digital Wireless Microphone System, you can experience the pinnacle of transparent, 24-bit digital audio. This system boasts rock-solid RF performance, easy setup, and rechargeability options, making it a versatile choice for a wide array of wireless system configurations.

The SLXD1 Digital Wireless Bodypack Transmitter, a key component of this system, is renowned for its industry-leading digital wireless technology and design. It effortlessly syncs with a wireless receiver and offers TQG connectivity to a multitude of microphone options. This ensures it's the perfect solution for various applications, from day-long conferences to nighttime performances.

The system also includes the SLXD5 Single-Channel Portable Digital Wireless Receiver, a powerful and portable device that delivers pristine audio clarity and efficient long-range UHF transmission. Its slim, portable design makes it ideal for on-camera cold shoe mounting and audio bag use. With its easy-to-use setup features, you can scan and deploy frequencies to a compatible SLXD wireless transmitter with IR sync, or coordinate and monitor large channel configurations with many sources using Multi-Mic Mode.

The Shure WL185 Cardioid Condenser Lavalier Microphone, another integral part of this system, is a subminiature lavalier microphone with signal characteristics perfect for general sound reinforcement applications. Its cardioid pickup pattern provides adequate rejection of off-axis ambient signal, reducing noise and feedback. The low-profile subminiature design is ideal for applications where the microphone must be concealed.

In summary, the SLXD15/85 Portable Digital Wireless Microphone System is a comprehensive solution that offers transparent 24-bit digital audio, extended 20 Hz to 20 kHz frequency range, 118 dB dynamic range, and digital predictive switching diversity. With its 44 MHz tuning bandwidth and up to 10 compatible systems per 6MHz TV band, it's a robust and reliable choice for all your audio needs.

Shure SLXD15/85 + SM63-LB Features

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Includes SLXD1 Wireless Bodypack Transmitter, SLXD5 Wireless Receiver & WL185 Lavalier Mic

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Comprehensive audio solution with extended 20 Hz to 20 kHz frequency range & 118 dB dynamic range

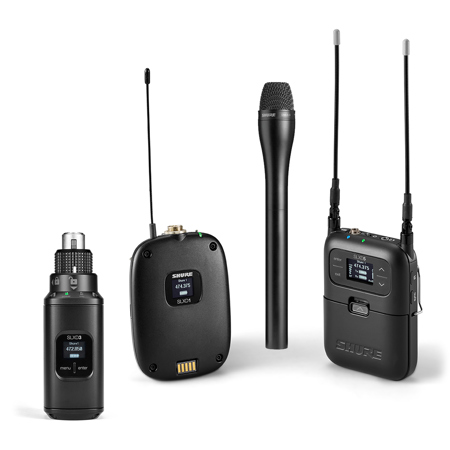

What's in the box:

  • SLXD1 Digital Wireless Bodypack Transmitter
  • SLXD5 Single-Channel Portable Digital Wireless Receiver
  • WL185 Cardioid Condenser Lavalier Microphone
  • SLXD3 Digital Wireless Plug-On Transmitter
  • SM63-LB Omnidirectional Handheld Wired Microphone with Extended Handle (Black)
  • 4x AA Alkaline Batteries
  • Cold Shoe Mount Adapter
  • Zippered Carrying Pouch
  • Clothing Clip
  • Windscreen
  • Shure 2 Year Limited Warranty
