Kit Savings

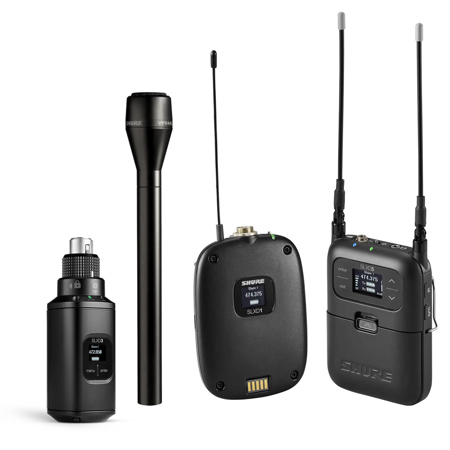

Shure SLXD15/UL4B Portable Digital Wireless Microphone System with UL4B Lavalier, VP64AL Handheld Microphones and SLXD3 Plug-On Transmitter, G58: 470-514MHz

SKU: SHSLXD15UG5B MFR: SLXD15/UL4B-G58-B
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Shure SLXD15/UL4B Portable Digital Wireless Lavalier Microphone System G58: 470-514MHz
    Shure SLXD15/UL4B Portable Digital Wireless Lavalier Microphone System G58: 470-514MHz
  • +
  • Shure SLXD3 Digital Wireless Plug-On Transmitter with XLR Connector G58: 470-514MHz
    Shure SLXD3 Digital Wireless Plug-On Transmitter with XLR Connector G58: 470-514MHz
  • +
  • Shure VP64AL Omni-Directional Handheld Wired Microphone w/Extended Handle, Black
    Shure VP64AL Omni-Directional Handheld Wired Microphone w/Extended Handle, Black
  • +
  • Show more

Note: 1 or more items are unavailable for immediate shipping

Key Features

  • Capture pristine audio with the UL4B lavalier wireless microphone system, ideal for broadcast.
  • Enjoy freedom of movement; this wireless microphone system boasts a reliable digital connection.
  • The included VP64AL handheld microphone is perfect for interviews and on-the-spot reporting.
  • Use the SLXD3 plug-on transmitter to turn any XLR mic into a wireless microphone instantly.
  • Get crystal-clear sound with the SLXD15/UL4B, featuring a wide 470-514MHz frequency range.
  • Long-lasting battery life ensures your wireless system is ready for extended shoots and events.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure SLXD15/UL4B + VP64AL Specifications

General

General

Jump to...
  • RF Frequency Band

    G58: 470-514MHz

SLXD1 Transmitter: Audio Input

Jump to...
  • Connector

    4-Pin male mini connector (TA4M)

  • Configuration

    Unbalanced

  • Impedance

    1 M Ohm

  • Maximum Input Level

    8.2 dBV (2.57 Vrms, 7.27 Vpp)

  • Preamplifier Equivalent Input Noise

    -118 dBV (EIN)

SLXD1 Transmitter: RF Input

Jump to...
  • Antenna Type

    1/4 Wave

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

SLXD1 Transmitter: Power

Jump to...
  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

SLXD1 Transmitter: Physical

Jump to...
  • Housing

    PC/ABS

  • Dimensions (H x W x D)

    3.86 x 2.68 x 1" (98 x 68 x 25.5mm)

  • Weight

    3.1 oz (89g)

SLXD5 Receiver: RF Input

Jump to...
  • Spurious Rejection

    >75 dB Typical

  • Impedance

    50 Ohm

  • Phantom Power Protection

    Yes

  • Antenna Type

    1/4 Wave Whip

SLXD5 Receiver: Audio Output

Jump to...
  • Audio Frequency Response

    20 Hz - 20 kHz (+1, -3 dB)

  • Connector Type

    1/8" (3.5 mm), x2

  • Configuration

    Balanced (Mono): Tip=audio +, Ring=audio -, Sleeve=ground

    Dual Mono: Tip = left, Ring = Right, Sleeve = Ground

  • Impedance (Camera)

    Balanced (Mono) Line: 450 Ohm
    Balanced (Mono) Mic: 240 Ohm
    Dual Mono Line: 400 Ohm
    Dual Mono Mic: 200 Ohm

  • Full Scale Output

    Camera (Balanced Line): 15 dBV
    Headphone: 13 mW @ 64 Ohm Load

SLXD5 Receiver: Power

Jump to...
  • Power Requirements

    Battery: Rechargeable Li-Ion or 1.5 V AA batteries
    Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C

SLXD5 Receiver: Physical

Jump to...
  • Housing

    Aluminum

  • Dimensions (H x W x D)

    4.21 x 2.68 x 1" (107 x 68 x 25.3mm)

  • Weight

    1.8 lbs (182g)

UL4 Lavalier Microphone: General

Jump to...
  • Form Factor

    Lavalier

  • Sound Field

    Mono

  • Element Type

    MEMS

  • Polar Pattern

    Cardioid

UL4 Lavalier Microphone: Performance

Jump to...
  • Frequency Range

    40 Hz to 20 kHz

  • Maximum SPL

    130 dB SPL (1 kHz, 1% THD)

  • Sensitivity

    -42.5 dBV/Pa

  • Dynamic Range

    98 dB (Typical)

  • Signal-to-Noise Ratio

    62 dB A-Weighted

UL4 Lavalier Microphone: Connectivity

Jump to...
  • Output Connector

    1 xTA4F/Mini-XLR 4-Pin Female (Waterproof)

  • Cable Length

    66" (1.7m)

UL4 Lavalier Microphone: Power

Jump to...
  • Power Sources

    Plug-In Power

  • Operating Voltage

    3.5 to 5 V

  • Operating Current Consumption

    530 microA

UL4 Lavalier Microphone: Physical

Jump to...
  • Color

    Black

  • Dimensions (Dia. x L)

    0.2 x 0.7" (5 x 17mm)

  • Weight

    0.4oz (12.5g)

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    6

  • UPC Codes

    192223243606, 042406789097, 042406764346, 042406051125

33 Accessories for Shure SLXD15/UL4B Portable Digital Wireless Microphone System with UL4B Lavalier, VP64AL Handheld Microphones and SLXD3 Plug-On Transmitter, G58: 470-514MHz

  • All Accessories (33)
  • Lavalier Microphone (4)
  • Bags & Cases (1)
  • Straps & Slings (1)
  • Batteries & Power Supply (13)
  • Cables & Adapters (5)
  • Headphones (3)
  • Headsets (2)
  • Microphones (2)
  • Cleaning Accessories (1)
  • Transmitter (1)

About Shure SLXD15/UL4B + VP64AL

SLX-D Portable Digital Wireless

Whether you’re a professional videographer, a field production specialist or a location sound mixer, stress-free audio capture is your calling card. Wherever the work takes you, SLX-D Portable lets you bring the rock-solid RF performance and flawless digital audio of SLX-D Digital Wireless with you. Locations can be unpredictable. Wireless audio shouldn’t be.

Get the shot. Capture the sound. Every time.

Hard-Working Wireless, When And Where You Need It

From weddings to live streams, great video is nothing without great audio.

SHSLXD15

Superior Audio Experiences

Bring the great audio experiences of the SLX-D Digital Wireless platform to your productions.

SHSLXD15

High-Performing Wireless Audio

Outstanding spectral efficiency and rock-solid RF performance deliver flawless wireless audio, time after time. Locations are Unpredictable. Wireless Audio Shouldn’t Be.

SHSLXD15

Fast & Intuitive Setup: Scan, Sync, and Go

SLX-D Portables have innovative set-up features that get you going at a moment’s notice. Flexible and user-friendly, SLX-D Portables capture the sound, every time.

SHSLXD15

Features

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over scan and IR sync

If you're seeking a high-quality, reliable audio solution, the SLXD15/UL4B Portable Digital Wireless Microphone System with UL4B Lavalier, VP64AL Handheld Microphones, and SLXD3 Plug-On Transmitter, G58: 470-514MHz is an excellent choice. This system offers a seamless blend of transparent 24-bit digital audio and robust RF performance, making it ideal for a wide array of applications, from day-long conferences to nighttime performances.

The SLXD1 Digital Wireless Bodypack Transmitter, a key component of this system, is renowned for its industry-leading digital wireless technology and design. It easily syncs with a wireless receiver and offers TQG connectivity, providing a multitude of microphone options. With an extended 20 Hz to 20 kHz frequency range, 118 dB dynamic range, and digital predictive switching diversity, it ensures clear and consistent audio delivery.

The SLXD5 Single-Channel Portable Digital Wireless Receiver, another integral part of this system, is designed for portability and convenience. It delivers pristine 24-bit digital audio clarity and efficient long-range UHF transmission. Its easy-to-use setup features, including scan and IR sync, make it a breeze to deploy frequencies to a compatible SLXD wireless transmitter. The bright OLED screen displays battery life in hours and minutes, providing real-time monitoring of your system's power status.

The UL4 UniPlex Cardioid Lavalier Microphone, included in this system, is designed for situations where directional sound capture is crucial. Whether you're presenting at a conference, teaching a class, or broadcasting an event, the UniPlex microphone's cardioid polar pattern ensures your voice is captured clearly and distinctly, even in environments with significant background noise.

In summary, the SLXD15/UL4B Portable Digital Wireless Microphone System with UL4B Lavalier, VP64AL Handheld Microphones, and SLXD3 Plug-On Transmitter, G58: 470-514MHz is a comprehensive audio solution that delivers superior sound quality, versatility, and ease of use.

Shure SLXD15/UL4B + VP64AL Features

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Includes SLXD1 Wireless Bodypack Transmitter, SLXD5 Wireless Receiver & UL4B Lavalier Mic

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Capture pristine audio with the UL4B lavalier wireless microphone system, ideal for broadcast.
  • Enjoy freedom of movement; this wireless microphone system boasts a reliable digital connection.
  • The included VP64AL handheld microphone is perfect for interviews and on-the-spot reporting.
  • Use the SLXD3 plug-on transmitter to turn any XLR mic into a wireless microphone instantly.
  • Get crystal-clear sound with the SLXD15/UL4B, featuring a wide 470-514MHz frequency range.
  • Long-lasting battery life ensures your wireless system is ready for extended shoots and events.

What's in the box:

  • SLXD1 Digital Wireless Bodypack Transmitter
  • SLXD5 Single-Channel Portable Digital Wireless Receiver
  • UL4 UniPlex Cardioid Lavalier Microphone (Black)
  • SLXD3 Digital Wireless Plug-On Transmitter
  • VP64AL Omnidirectional Handheld Wired Microphone with Extended Handle (Black)
  • 4x AA Alkaline Batteries
  • Cold Shoe Mount Adapter
  • Zippered Carrying Pouch
  • Threaded TA4F Adapter
  • Snap-Fit Windscreen
  • Single Tie Clip
  • Case
  • Shure 2 Year Limited Warranty
