Kit Savings

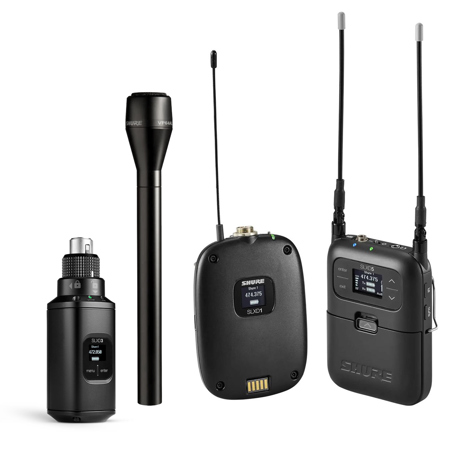

Shure SLXD15/UL4B Portable Digital Wireless Microphone System with UL4B Lavalier, VP64AL Handheld Microphones and SLXD3 Plug-On Transmitter, J52: 558-616MHz

SKU: SHSLXD15UJ5B MFR: SLXD15/UL4B-J52-B
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Shure SLXD15/UL4B Portable Digital Wireless Lavalier Microphone System J52: 558-616MHz
    Shure SLXD15/UL4B Portable Digital Wireless Lavalier Microphone System J52: 558-616MHz
  • +
  • Shure SLXD3 Digital Wireless Plug-On Transmitter with XLR Connector J52: 558-616MHz
    Shure SLXD3 Digital Wireless Plug-On Transmitter with XLR Connector J52: 558-616MHz
  • +
  • Shure VP64AL Omni-Directional Handheld Wired Microphone w/Extended Handle, Black
    Shure VP64AL Omni-Directional Handheld Wired Microphone w/Extended Handle, Black
  • +
  • Show more

Note: 1 or more items are unavailable for immediate shipping

Key Features

  • Capture crystal-clear audio with the UL4 lavalier microphone's cardioid polar pattern.
  • Achieve professional sound using this wireless microphone system's wide 558-616MHz range.
  • The SLXD3 plug-on transmitter adapts any XLR mic to wireless for ultimate flexibility.
  • Enjoy hands-free presenting with the discreet UL4B lavalier, ideal for broadcast applications.
  • Rely on the robust SLXD1 bodypack transmitter for dependable performance at every event.
  • Use the VP64AL handheld microphone for interviews with its extended handle and clear sound.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure SLXD15/UL4B + VP64AL Specifications

General

General

Jump to...
  • RF Frequency Band

    J52: 558-616MHz

SLXD1 Transmitter: Audio Input

Jump to...
  • Connector

    4-Pin male mini connector (TA4M)

  • Configuration

    Unbalanced

  • Impedance

    1 M Ohm

  • Maximum Input Level

    8.2 dBV (2.57 Vrms, 7.27 Vpp)

  • Preamplifier Equivalent Input Noise

    -118 dBV (EIN)

SLXD1 Transmitter: RF Input

Jump to...
  • Antenna Type

    1/4 Wave

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

SLXD1 Transmitter: Power

Jump to...
  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

SLXD1 Transmitter: Physical

Jump to...
  • Housing

    PC/ABS

  • Dimensions (H x W x D)

    3.86 x 2.68 x 1" (98 x 68 x 25.5mm)

  • Weight

    3.1 oz (89g)

SLXD5 Receiver: RF Input

Jump to...
  • Spurious Rejection

    >75 dB Typical

  • Impedance

    50 Ohm

  • Phantom Power Protection

    Yes

  • Antenna Type

    1/4 Wave Whip

SLXD5 Receiver: Audio Output

Jump to...
  • Audio Frequency Response

    20 Hz - 20 kHz (+1, -3 dB)

  • Connector Type

    1/8" (3.5 mm), x2

  • Configuration

    Balanced (Mono): Tip=audio +, Ring=audio -, Sleeve=ground

    Dual Mono: Tip = left, Ring = Right, Sleeve = Ground

  • Impedance (Camera)

    Balanced (Mono) Line: 450 Ohm
    Balanced (Mono) Mic: 240 Ohm
    Dual Mono Line: 400 Ohm
    Dual Mono Mic: 200 Ohm

  • Full Scale Output

    Camera (Balanced Line): 15 dBV
    Headphone: 13 mW @ 64 Ohm Load

SLXD5 Receiver: Power

Jump to...
  • Power Requirements

    Battery: Rechargeable Li-Ion or 1.5 V AA batteries
    Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C

SLXD5 Receiver: Physical

Jump to...
  • Housing

    Aluminum

  • Dimensions (H x W x D)

    4.21 x 2.68 x 1" (107 x 68 x 25.3mm)

  • Weight

    1.8 lbs (182g)

UL4 Lavalier Microphone: General

Jump to...
  • Form Factor

    Lavalier

  • Sound Field

    Mono

  • Element Type

    MEMS

  • Polar Pattern

    Cardioid

UL4 Lavalier Microphone: Performance

Jump to...
  • Frequency Range

    40 Hz to 20 kHz

  • Maximum SPL

    130 dB SPL (1 kHz, 1% THD)

  • Sensitivity

    -42.5 dBV/Pa

  • Dynamic Range

    98 dB (Typical)

  • Signal-to-Noise Ratio

    62 dB A-Weighted

UL4 Lavalier Microphone: Connectivity

Jump to...
  • Output Connector

    1 xTA4F/Mini-XLR 4-Pin Female (Waterproof)

  • Cable Length

    66" (1.7m)

UL4 Lavalier Microphone: Power

Jump to...
  • Power Sources

    Plug-In Power

  • Operating Voltage

    3.5 to 5 V

  • Operating Current Consumption

    530 microA

UL4 Lavalier Microphone: Physical

Jump to...
  • Color

    Black

  • Dimensions (Dia. x L)

    0.2 x 0.7" (5 x 17mm)

  • Weight

    0.4oz (12.5g)

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    6

  • UPC Codes

    192223243620, 042406789486, 042406764735, 042406051125

33 Accessories for Shure SLXD15/UL4B Portable Digital Wireless Microphone System with UL4B Lavalier, VP64AL Handheld Microphones and SLXD3 Plug-On Transmitter, J52: 558-616MHz

  • All Accessories (33)
  • Lavalier Microphone (4)
  • Bags & Cases (1)
  • Straps & Slings (1)
  • Batteries & Power Supply (13)
  • Cables & Adapters (5)
  • Headphones (3)
  • Headsets (2)
  • Microphones (2)
  • Cleaning Accessories (1)
  • Transmitter (1)

About Shure SLXD15/UL4B + VP64AL

SLX-D Portable Digital Wireless

Whether you’re a professional videographer, a field production specialist or a location sound mixer, stress-free audio capture is your calling card. Wherever the work takes you, SLX-D Portable lets you bring the rock-solid RF performance and flawless digital audio of SLX-D Digital Wireless with you. Locations can be unpredictable. Wireless audio shouldn’t be.

Get the shot. Capture the sound. Every time.

Hard-Working Wireless, When And Where You Need It

From weddings to live streams, great video is nothing without great audio.

SHSLXD15

Superior Audio Experiences

Bring the great audio experiences of the SLX-D Digital Wireless platform to your productions.

SHSLXD15

High-Performing Wireless Audio

Outstanding spectral efficiency and rock-solid RF performance deliver flawless wireless audio, time after time. Locations are Unpredictable. Wireless Audio Shouldn’t Be.

SHSLXD15

Fast & Intuitive Setup: Scan, Sync, and Go

SLX-D Portables have innovative set-up features that get you going at a moment’s notice. Flexible and user-friendly, SLX-D Portables capture the sound, every time.

SHSLXD15

Features

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over scan and IR sync

It's time to elevate your audio experience with the SLXD15/UL4B Portable Digital Wireless Microphone System. This comprehensive package includes the SLXD1 Digital Wireless Bodypack Transmitter, the SLXD5 Single-Channel Portable Digital Wireless Receiver, and the UL4B UniPlex Cardioid Lavalier Microphone.

The SLXD1 Digital Wireless Bodypack Transmitter is a marvel of industry-leading digital wireless technology. It delivers transparent, 24-bit digital audio and robust RF performance, ensuring crystal-clear sound quality. With an extended frequency range of 20 Hz to 20 kHz, it captures every nuance of sound, making it an ideal choice for both day-long conferences and nighttime performances. The transmitter's TQG connectivity offers compatibility with a variety of microphone options, providing flexibility for a wide range of applications.

The SLXD5 Single-Channel Portable Digital Wireless Receiver is a compact powerhouse, designed for on-camera cold shoe mounting and audio bag use. It offers pristine 24-bit digital audio clarity and efficient long-range UHF transmission. The receiver's Multi-Mic Mode allows for the coordination and monitoring of large channel configurations with multiple sources. The bright OLED screen displays key system function readouts and remaining battery life, ensuring you're always in control of your audio setup.

Completing the package is the UL4B UniPlex Cardioid Lavalier Microphone. This lavalier microphone features a cardioid polar pattern, making it the perfect solution for speaking situations where sound rejection is required. Whether you're presenting at a conference, educating in a classroom, or broadcasting on air, the UniPlex ensures your voice is captured with superb directional accuracy.

In summary, the SLXD15/UL4B Portable Digital Wireless Microphone System is a versatile, high-performance solution for all your audio needs. Its combination of advanced technology, robust construction, and user-friendly features make it a standout choice for professionals seeking superior sound quality.

Shure SLXD15/UL4B + VP64AL Features

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Includes SLXD1 Wireless Bodypack Transmitter, SLXD5 Wireless Receiver & UL4B Lavalier Mic

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Capture crystal-clear audio with the UL4 lavalier microphone's cardioid polar pattern.
  • Achieve professional sound using this wireless microphone system's wide 558-616MHz range.
  • The SLXD3 plug-on transmitter adapts any XLR mic to wireless for ultimate flexibility.
  • Enjoy hands-free presenting with the discreet UL4B lavalier, ideal for broadcast applications.
  • Rely on the robust SLXD1 bodypack transmitter for dependable performance at every event.
  • Use the VP64AL handheld microphone for interviews with its extended handle and clear sound.

What's in the box:

  • SLXD1 Digital Wireless Bodypack Transmitter
  • SLXD5 Single-Channel Portable Digital Wireless Receiver
  • UL4 UniPlex Cardioid Lavalier Microphone (Black)
  • SLXD3 Digital Wireless Plug-On Transmitter
  • VP64AL Omnidirectional Handheld Wired Microphone with Extended Handle (Black)
  • 4x AA Alkaline Batteries
  • Cold Shoe Mount Adapter
  • Zippered Carrying Pouch
  • Threaded TA4F Adapter
  • Snap-Fit Windscreen
  • Single Tie Clip
  • Case
  • Shure 2 Year Limited Warranty
