Kit Savings

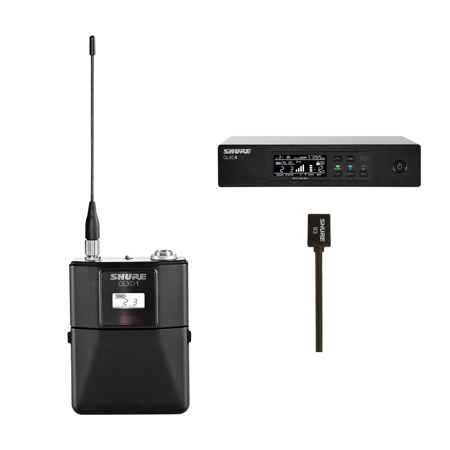

Shure QLXD14/93 Digital Wireless Microphone System with WL93 Lavalier Microphone, G50: 470-534MHz

SKU: SHXD1485G5K MFR: QLXD14/85-G50 K
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Shure QLXD1 Digital Wireless Bodypack Transmitter G50: 470-534MHz
    Shure QLXD1 Digital Wireless Bodypack Transmitter G50: 470-534MHz
  • +
  • Shure QLXD4 Half-Rack Digital Wireless Receiver G50: 470-534MHz
    Shure QLXD4 Half-Rack Digital Wireless Receiver G50: 470-534MHz
  • +
  • Shure WL93 Omni Lavalier Condenser Microphone w/TA4F for Shure, 6' Cable, Black
    Shure WL93 Omni Lavalier Condenser Microphone w/TA4F for Shure, 6' Cable, Black
  • +
  • Show more

Note: 1 or more items are unavailable for immediate shipping

Key Features

  • Experience crystal-clear audio with this Shure wireless microphone system, perfect for presentations.
  • Enjoy freedom of movement with a reliable wireless range, ideal for dynamic performances & speeches.
  • The WL185 lavalier microphone delivers exceptional sound quality, ensuring professional audio capture.
  • This digital wireless system features easy setup, so you can focus on your content, not the tech.
  • Benefit from a robust build quality, making this wireless microphone a dependable choice for daily use.
  • Get long-lasting battery life for uninterrupted recording sessions using this wireless lavalier microphone.
See More Product Details
Temporarily On Backorder?Expected Availability: 11/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure QLXD14/85 Specifications

System
  • Wireless Technology

    Digital UHF

  • Number of RF Channel Frequencies

    2560

  • Included Transmitters

    1xBodypack

  • Diversity

    Antenna Diversity

  • RF Frequency Band

    G50:470-534MHz

  • RF Bandwidth

    64 MHz

  • Frequency Step Size

    25 kHz

  • Max Operating Range

    330' (100.6m)

  • Max Transmitters per Band

    60

  • Sample Rate/Resolution

    48 kHz / 24-Bit

  • Latency

    < 2.9 ms

  • Dynamic Range

    120 dB

  • Encryption

    AES 256

  • Modulation

    Proprietary

Receiver

Jump to...
  • Receiver Type

    Tabletop

  • Mounting Options

    Rackmount (with Included Hardware)

  • Rackmount Size

    1 RU (1/2 Rack)

  • Antenna

    2x1/2 Wave External, Detachable (Rear-Mount)

  • Number of Audio Channels

    1

  • Audio I/O

    1xXLR 3-Pin Male Balanced Output
    1x1/4" TRS Female Balanced Output

  • Gain Range

    -18 to +42 dB (1 dB Steps)

  • Pad

    30 dB

  • Audio Output Level

    XLR Output: +18 dBV (Line Level)
    XLR Output: -12 dBV (Mic Level)
    1/4" Output: +12 dBV (Instrument Level)

  • Phantom Power Protection

    On 1/4", XLR Output

  • Network I/O

    1xRJ45 (10/100 Mb/s)

  • Network Protocols

    DHCP, Manual IP

  • Impedance

    XLR Output: 100 Ohms (Balanced)
    1/4" Output: 100 Ohms (Balanced)
    1/4" Output: 50 Ohms (Unbalanced)

  • Adjacent Channel Isolation

    >70 dB

  • Spurious

    Rejection: >80 dB

  • Power Requirements

    AC/DC Power Adapter

  • AC/DC Power Adapter

    12 VDC at 0.4 A, Center-Positive (Included)

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz at 150 mA

  • Display & Indicators

    1xBacklit LCD (AF Level, Channel, Group, Menu Navigation, Metering, RF Level, Transmitter Battery Status)
    1xLED (Sync)
    1xLED (Peak)

  • Housing

    Metal

  • Operating Temperature

    0 to 122 Degree F (-18 to 50 Degree C)

  • Dimensions

    7.8 x 1.6 x 5.9" (197 x 41 x 151mm) (without Antennas)

  • Weight

    1.7lbs (777g) (without Antenna)

Transmitter

Jump to...
  • Transmitter Type

    Bodypack

  • Housing

    Aluminum

  • RF Output Power

    1 / 10 mW

  • Audio I/O

    1xTA4/Mini-XLR 4-Pin Male Unbalanced Input (Locking)

  • Audio Input Level

    8.5 dBV / 7.5 V p-p

  • Gain Range

    0 to 21 dB (3 dB Steps)

  • Frequency Response

    20 Hz to 20 kHz

  • Sync Method

    IR

  • Antenna

    1x1/4 Wave

  • Power Requirements

    Battery

  • Display & Indicators

    1xBacklit LCD (Channel, Group, RF Output Power)

  • Battery

    2xAA (Included)
    1xShure SB900A (Not Included, Replaceable)

  • Approx. Battery Life

    9 Hours (Alkaline)

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions

    2.6 x 3.4 x 0.9" (65 x 86 x 23mm)

  • Weight

    4.9oz (138g) (without Batteries)

Microphone

Jump to...
  • Microphone Type

    Lavalier

  • Sound Field

    Mono

  • Capsule

    Electret Condenser

  • Polar Pattern

    Cardioid

  • Frequency Range

    50 Hz to 17 kHz

  • SNR

    18 dB A-Weighted

  • Maximum SPL

    130.5 dB SPL

  • Impedance

    1800 Ohms

  • Sensitivity

    -45.5 dBV/Pa

  • Dynamic Range

    102.5 dB

  • Output Connector

    1xTA4F/Mini-XLR 4-Pin Female Unbalanced (Locking)

  • Cable Length

    3.94' (1.2m)

  • Operating Voltage

    1.5 to 10 V

  • UPC Codes

    042406346719, 042406341158, 042406053136

About Shure QLXD14/85

What sets the QLXD14/85 Digital Wireless Microphone System with WL185 Lavalier Microphone, G50: 470-534MHz apart is its blend of professional-grade features, simplified setup, and exceptional performance. This system is designed to deliver superior wireless functionality, making it an ideal choice for mid-sized events and installations in businesses, hotels, government offices with conferencing spaces, educational institutions, places of worship, and live performance venues.

The QLXD1 Bodypack Transmitter, a key component of this system, offers transparent 24-bit digital audio quality and efficient RF spectrum usage. It's perfect for wireless vocals and instruments in various settings, from presentation spaces to music venues and houses of worship. The QLXD1 syncs effortlessly with a wireless receiver over IR at the push of a button and maintains a clear, uninterrupted signal over its entire 100m (330 ft.) range. Its all-metal construction ensures durability, while a wide selection of compatible microphones provides the legendary Shure sound signatures.

The QLXD4 Digital Wireless Receiver, another integral part of the system, combines professional features with streamlined setup and operation. It offers automatic channel scanning and digital predictive switching, ensuring a solid RF connection. The receiver's 24-bit digital audio quality and efficient RF spectrum usage are complemented by its compatibility with the ShurePlus Channels Mobile App for remote monitoring and control from iOS devices.

The WL185 Cardioid TQG Lavalier Microphone, included in this system, is a premium wireless cardioid condenser microphone designed for speech applications. It's recommended for general-purpose sound reinforcement applications requiring good rejection of ambient noise. The microphone features a 130-degree pickup angle and a 1.2-meter (4 ft.) cable terminated with a miniature 4-pin mini connector. Its CommShield Technology guards against interference from cellular RF devices and digital bodypack transmitters.

In summary, the QLXD14/85 Digital Wireless Microphone System with WL185 Lavalier Microphone, G50: 470-534MHz is a comprehensive solution that combines professional-grade features, easy setup, and exceptional performance, making it an ideal choice for a wide range of applications.

Shure QLXD14/85 Features

  • 4-Pin male mini connector (TA4M) for QLXD1 Bodypack Transmitter
  • QLXD1 bodypack transmitter is ideal for wireless vocals and instruments
  • 24-Bit digital audio quality
  • WL185 is a cardioid lavalier microphone with a 130 degree pickup angle
  • Backlit LCD with easy to navigate menu and controls
  • AES 256-bit encryption for secure transmission

Key Features

  • Experience crystal-clear audio with this Shure wireless microphone system, perfect for presentations.
  • Enjoy freedom of movement with a reliable wireless range, ideal for dynamic performances & speeches.
  • The WL185 lavalier microphone delivers exceptional sound quality, ensuring professional audio capture.
  • This digital wireless system features easy setup, so you can focus on your content, not the tech.
  • Benefit from a robust build quality, making this wireless microphone a dependable choice for daily use.
  • Get long-lasting battery life for uninterrupted recording sessions using this wireless lavalier microphone.

What's in the box:

  • QLXD4 Digital Wireless Receiver
  • QLXD1 Digital Wireless Bodypack Transmitter
  • WL93 Omni Lavalier Condenser Microphone w/TA4F Connector (Black)
  • Mounting Hardware
  • Short Rackmount Bracket with Link Bar
  • Long Rackmount Bracket
  • 2x Antennas
  • 2x BNC Antenna Adapters
  • 2x BNC Antenna Cables (22")
  • Ethernet Cable (3')
  • PS24US Power Supply for Select Wireless Receivers
  • 2x AA Batteries
  • Shure 2 Year Limited Warranty
