Digital UHF
2560
1xBodypack
Antenna Diversity
H50: 534-598MHz
64 MHz
25 kHz
330' (100.6m)
60
48 kHz / 24-Bit
< 2.9 ms
120 dB
AES 256
Proprietary
Tabletop
Rackmount (with Included Hardware)
1 RU (1/2 Rack)
2x1/2 Wave External, Detachable (Rear-Mount)
1
1xXLR 3-Pin Male Balanced Output
1x1/4" TRS Female Balanced Output
-18 to +42 dB (1 dB Steps)
30 dB
XLR Output: +18 dBV (Line Level)
XLR Output: -12 dBV (Mic Level)
1/4" Output: +12 dBV (Instrument Level)
On 1/4", XLR Output
1xRJ45 (10/100 Mb/s)
DHCP, Manual IP
XLR Output: 100 Ohms (Balanced)
1/4" Output: 100 Ohms (Balanced)
1/4" Output: 50 Ohms (Unbalanced)
>70 dB
Rejection: >80 dB
AC/DC Power Adapter
12 VDC at 0.4 A, Center-Positive (Included)
100 to 240 VAC, 50 / 60 Hz at 150 mA
1xBacklit LCD (AF Level, Channel, Group, Menu Navigation, Metering, RF Level, Transmitter Battery Status)
1xLED (Sync)
1xLED (Peak)
Metal
0 to 122 Degree F (-18 to 50 Degree C)
7.8 x 1.6 x 5.9" (197 x 41 x 151mm) (without Antennas)
1.7lbs (777g) (without Antenna)
Bodypack
Aluminum
1 / 10 mW
1xTA4/Mini-XLR 4-Pin Male Unbalanced Input (Locking)
8.5 dBV / 7.5 V p-p
0 to 21 dB (3 dB Steps)
20 Hz to 20 kHz
IR
1x1/4 Wave
Battery
1xBacklit LCD (Channel, Group, RF Output Power)
2xAA (Included)
1xShure SB900A (Not Included, Replaceable)
9 Hours (Alkaline)
Required, included
Alkaline
AA
2
2.6 x 3.4 x 0.9" (65 x 86 x 23mm)
4.9oz (138g) (without Batteries)
Lavalier
Mono
Electret Condenser
Cardioid
50 Hz to 17 kHz
18 dB A-Weighted
130.5 dB SPL
1800 Ohms
-45.5 dBV/Pa
102.5 dB
1xTA4F/Mini-XLR 4-Pin Female Unbalanced (Locking)
3.94' (1.2m)
1.5 to 10 V
042406346689, 042406341141, 042406053136

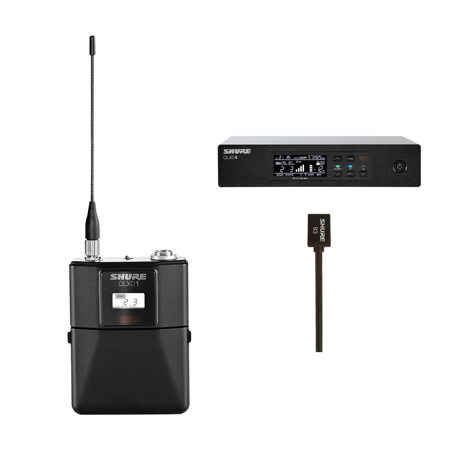

How can you elevate your audio experience With the QLXD14/85 Digital Wireless Microphone System featuring the WL185 Lavalier Microphone. This system is designed to deliver professional-grade features, simplified setup, and seamless operation. It's perfect for mid-size events and installations in businesses, hotels, government offices with conferencing spaces, schools, houses of worship, and live performance spaces.
The QLXD1 Bodypack Transmitter, a key component of this system, offers transparent 24-bit digital audio quality and efficient RF spectrum usage. It's the perfect solution for wireless vocals and instruments in various venues, from presentation spaces to music venues and houses of worship. With its easy-to-use design, the QLXD1 syncs with a wireless receiver over IR at the push of a button and maintains a clear, uninterrupted signal over its entire 100 m (330 ft.) range. Its all-metal construction ensures durability, and a wide selection of compatible microphone choices offer the legendary Shure sound signatures.
The QLXD4 Digital Wireless Receiver, another integral part of this system, combines professional features with streamlined setup and operation. It offers automatic channel scan, networked channel scan, digital predictive switching, and AES 256 encryption for secure transmission. With transparent 24-bit digital audio quality and efficient RF spectrum usage, this receiver ensures a solid RF connection and secure wireless transmission. It also offers remote monitoring and control from iOS devices via the ShurePlus Channels Mobile App.
The WL185 Cardioid TQG Lavalier Microphone, included in this system, is a premium wireless cardioid condenser lavalier mic designed for speech applications. It's recommended for general-purpose sound reinforcement applications requiring good rejection of ambient noise. The WL185 is a cardioid lavalier microphone with a 130-degree pickup angle and a 1.2-meter (4 ft.) cable terminated with a miniature 4-pin mini connector. It features CommShield Technology, which guards against interference from cellular RF devices and digital bodypack transmitter.
In summary, the QLXD14/85 Digital Wireless Microphone System with WL185 Lavalier Microphone, H50: 534-598MHz is a comprehensive solution for all your audio needs, offering professional-grade features, simplified setup, and seamless operation.
