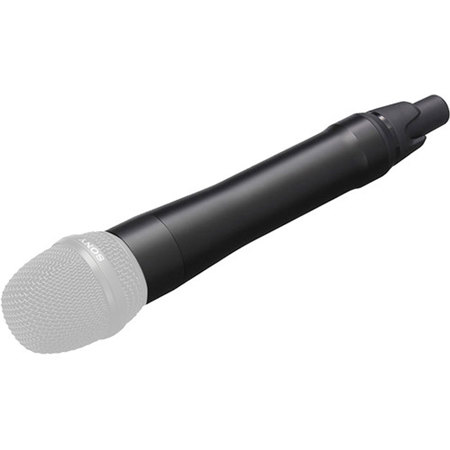

Sony DWM-02N/30 Digital Wireless Microphone, 566.125MHz-637.875MHz Carrier Frequency

Take your audio performance to the next level with the DWM-02N/30 Digital Wireless Microphone, a high-quality, durable, and versatile piece of audio equipment from Sony. This innovative microphone is part of the DWX N series system, renowned for its full-digital operation, shorter audio latency, and more reliable RF transmission mode. It's an ideal choice for a range of applications, including broadcast studios, theatre, and live sound environments.

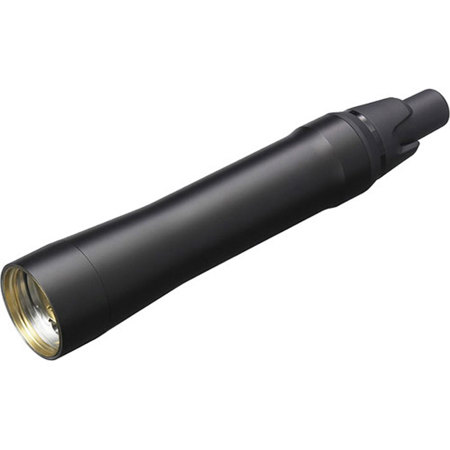

The DWM-02N/30 Digital Wireless Microphone is designed for maximum flexibility. It comes without a microphone capsule, allowing you to choose from Sony's CU-C31, CU-F31, and CU-F32 microphone heads or a wide variety of third-party capsules. This ensures that whatever your audio requirements, this wireless handheld microphone can meet them.

This microphone is part of the DWX N series system, which includes the DWT-B01N body-pack transmitter, DWM-02N microphone, and DWR-R02DN receiver. This system delivers superb-quality wireless transmission of 24-bit digital audio, providing higher sound quality with lower audio latency, thanks to its improved codec and new hardware.

The DWM-02N/30 Digital Wireless Microphone is compatible with Sony control software Wireless Studio 4.2 or later for PC and Wireless Studio Mobile for smartphones. This gives users flexible control of the system, with remote control of up to 82 transmitters possible using the Cross Remote function combined with the RMU-01 remote control unit.

Three codec modes are designed for a wide variety of applications. MODE1 is for compatibility with DWX series applications, MODE2 offers higher quality sound and low latency ideal for theatre, tour, and broadcast applications, and MODE3 provides more reliable RF transmission ideal for speech applications.

The DWM-02N/30 Digital Wireless Microphone system transmits and receives high-quality 24-bit digital audio in a specific frequency bandwidth that meets the Wireless Communication Regulations of each country. It delivers a wide dynamic range of more than 106 dB, a wide frequency response of 20 Hz to 22 kHz, and an excellent transient response.

The system allows for large-scale multi-channel operations, thanks to the digital modulator, enabling a significant increase in the number of simultaneous operations compared to current analogue wireless systems. For example, up to 16 channels of simultaneous operation is possible in an 8-MHz operating band.

The DWM-02N/30 Digital Wireless Microphone operates with three heads, each offering different pick-up ranges and frequencies. It also supports a wide variety of third-party heads. A robust 31.3mm/pitch 1.0mm threading interchangeable mechanism allows microphone heads to be changed easily and quickly.

The microphone's output power is selectable between 1/10/50 mW, allowing you to choose the minimum power necessary for a venue, lengthening battery life, and reducing the possibility of interference. Input attenuation, RF frequency selection, RF power output, Audio Low-pass cutoff frequency, and transmitter Sleep Mode can all be controlled remotely from the digital wireless receiver.

In conclusion, the DWM-02N/30 Digital Wireless Microphone is a portable, high-quality, and versatile audio solution that provides superior sound quality and reliable performance for a wide range of applications.
