Sony SRG-120DH HD PTZ Desktop Camera with RC4-SRG Cable Solution Kit
See all Sony items

Sony SRG-120DH HD PTZ Remote Desktop Camera with RC4-SRG Single Cable Solution Kit, 12x Optical Zoom

SKU: SOSRG120DHP4

This item is no longer available.

Recommended Alternatives

Sony BRC-X400: Picture 1 regular
Sony BRC-X400 4K UltraHD HDMI/IP/3G-SDI 20x PTZ Camera, Black
$7,449.00$5,200.00
Sony BRC-X400: Picture 1 regular
Sony BRC-X400 4K UltraHD HDMI/IP/3G-SDI 20x PTZ Camera, White
$8,120.00
Sony FR7: Picture 1 regular
Sony FR7 Cinema Line Full-Frame PTZ Robotic Camera
$10,498.00
Sony SRG-X120W: Picture 1 regular
SRG-X120 12x PTZ Camera, Includes NDI|HX License, Black
$3,352.00$2,399.00
See More Recommendations
Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sony SRG-120DH + RC4-SRG Specifications

  • Camera: Image Sensor

    1/2.8 Exmor CMOS

  • Camera: Number of Effective Pixels

    2.1 Megapixels (Approx.)

  • Camera: Signal System

    1080/59.94p,50p,29.97p,25p,1080/59.94i,50i,720/59.94p,50p,29.97p,25p

  • Camera: Minimum Illumination

    1.8 lx (50IRE, F1.8, 30 fps)

  • Camera: S/N Ratio

    50dB

  • Camera: Gain

    Auto / Manual (0 to +43dB)

  • Camera: Shutter Speed

    1/1 to 1/10000 sec (59.94Hz system)
    1/1 to 1/10000 sec (50Hz system)

  • Camera: Exposure Control

    Auto, Manual, Priority AE (Shutter, Iris), Exposure compensation, Bright

  • Camera: White Balance

    Auto, Indoor, Outdoor, One push auto, ATW, Manual

  • Camera: Optical Zoom

    12x

  • Camera: Focusing System

    Auto / Manual

  • Camera: Horizontal Viewing Angle

    71 deg. (Wide)

  • Camera: Focal Length

    f= 3.9mm (Wide) to 46.8mm (Tele)
    F1.8 to 2.0

  • Camera: Minimum Object Distance

    10mm (Wide) to 1500mm (Tele)

  • Camera: Pan/Tilt Angle

    Pan: +/-100 deg.
    Tilt: +/-25 deg.

  • Camera: Pan/Tilt Maximum speed

    Pan: 300 deg./sec
    Tilt: 126 deg./sec

  • Camera: Preset Position

    16

  • Camera: Auto ICR

    No

  • Camera: Wide-D

    Yes

  • Camera: Image Stabilizer

    No

  • Camera: Image Flip

    No

  • Camera: Auto Power Off

    No

  • Camera: Night Power Off

    No

  • Camera: Interface

    HD Video Output: HDMI
    Camera control: RS-232 / RJ-45
    Sync. System: INT

  • Camera: Power Requirements

    DC 12V (DC 10.8 to 13.2V)

  • Camera: Power Consumption

    16.8W

  • Camera: Operating Temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Camera: Storage Temperature

    -4 to 140 deg. F / -20 to 60 deg. C

  • Camera: Wide Conversion Lens Attachable

    No

  • Camera: Mountable Angle

    <+/-15 deg.

  • Camera: Ceiling Mount

    No

  • RC4-SRG Kit: Cable

    1' HDMI Camera Cable
    1' DC Power Camera Cable
    3' HDMI Camera Head-End Cable

  • Dimensions (W x H x D)

    Camera: 153 x 156 x 153mm / 6.02 x 6.14 x 6.02"

  • Weight

    Camera: 1.45kg / 3.20lbs

4 Accessories for Sony SRG-120DH HD PTZ Remote Desktop Camera with RC4-SRG Single Cable Solution Kit, 12x Optical Zoom

  • All Accessories (4)
  • Extended Warranty (4)
Sony Protect Consumer Warranty for Cameras and Lenses Up To $4000, 2 Year
Sony Protect Consumer Warranty for Cameras and Lenses Up To $4000, 2 Year
$169.00
Recommended
Sony Protect Plus Consumer Warranty for Cameras/Lenses Up To $4000, 2 Year Plan
Sony Protect Plus Consumer Warranty for Cameras/Lenses Up To $4000, 2 Year Plan
$179.99
Recommended
Sony Protect Consumer Warranty for Cameras and Lenses Up To $4000, 3 Year Plan
Sony Protect Consumer Warranty for Cameras and Lenses Up To $4000, 3 Year Plan
$211.99
Recommended
Sony Protect Plus Consumer Warranty for Cameras/Lenses Up To $4000, 3 Year Plan
Sony Protect Plus Consumer Warranty for Cameras/Lenses Up To $4000, 3 Year Plan
$279.99
Recommended

About Sony SRG-120DH + RC4-SRG

EZ-2-Connect PTZ Camera Solution featuring SRG-120DH PTZ Camera with RC4-SRG Kit.

SRG-120DH HD PTZ Remote Desktop Camera
What do you look for in a PTZ camera? If your answer is stunning image quality coupled with smooth robotic control at an affordable price, take a look at Sony's new SRG Camera Series. The new SRG series joins Sony's widely used EVI and BRC product lines, giving customers a greater choice of high-quality remote camera options. The SRG-120DH is a new desktop 1080p/60 HD PTZ camera with a 12x optical zoom. It incorporates Sony's high sensitivity 1/2.8-type Exmor CMOS sensor with the latest imaging technology and field-proven operability. The SRG-120DH is equipped with several new features including View-DR processing to master the harshest lighting conditions as well as the industry recognized VISCA protocol and built-in IP control. The SRG-300H is available in a silver housing. The SRG-120DH is ideal for videoconferencing and remote monitoring applications.

High Image Quality
The SRG cameras incorporate Sony's high-sensitivity 1/2.8 -type Exmor CMOS sensor and the latest View-DR technology. Also their 60p shooting capability realizes smooth, reduced blur life-like images.

View-DR (Wide Dynamic Range)
View-DR provides extremely wide dynamic range with Sony's full-capture Wide-D technology - utilizing the Exmor CMOS sensor's high-speed readout capability and Visibility Enhancer (VE) that provides a high level of chrominance and luminance. Achieves up to 130dB (29.97fps).

XDNR Technology
XDNR technology reduces noise and provides clear images in both moving and still objects under low light conditions.

Camera Control
VISCA over IP technology allows for easy control of camera over IP connection.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sony SRG-120DH HD PTZ Remote Desktop Camera

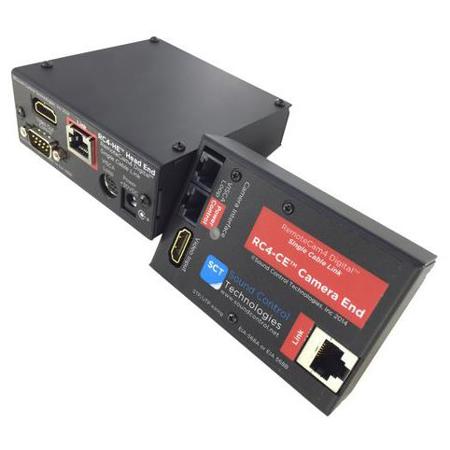

  • Camera and Codec/Head-End Interface Modules
  • 1' HDMI Camera Cable
  • RJ45 to Power/Control IR
  • 1' DC Power Camera Cable
  • RJ11 to 8 Pin Mini Din VISCA Out Cable
  • 3' HDMI Camera Head-End Cable
  • Power Supply
  • VISCA Loop 8 pin Mini Din to 9 Pin Head-End
  • Null Modem DB89 Serial Head-End Cable
  • Sony 3 Year Warranty
