Sony SRG-300SE IP Streaming PTZ Camera with RC5-SRG EZ-2-Connect Kit, Black
See all Sony items

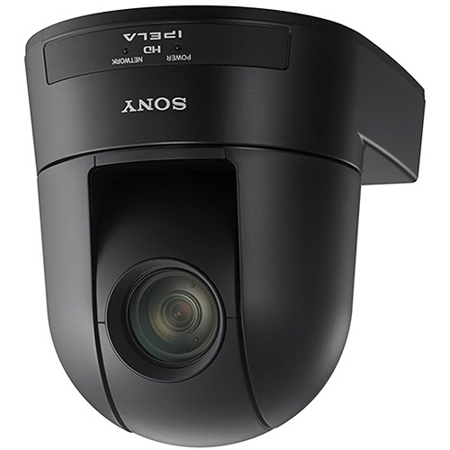

Sony SRG-300SE IP Streaming PTZ Camera with RC5-SRG EZ-2-Connect Kit, Black

SKU: SOSRG300SBP5

This item is no longer available.

Recommended Alternatives

Sony BRC-X400: Picture 1 regular
Sony BRC-X400 4K UltraHD HDMI/IP/3G-SDI 20x PTZ Camera, Black
$7,449.00$5,200.00
Sony BRC-X400: Picture 1 regular
Sony BRC-X400 4K UltraHD HDMI/IP/3G-SDI 20x PTZ Camera, White
$8,120.00
Sony FR7: Picture 1 regular
Sony FR7 Cinema Line Full-Frame PTZ Robotic Camera
$10,498.00
Sony SRG-X120W: Picture 1 regular
SRG-X120 12x PTZ Camera, Includes NDI|HX License, Black
$3,352.00$2,399.00
See More Recommendations
Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sony SRG-300SE/PAC5 Specifications

  • Image Device

    1/2.8 Exmor CMOS

  • Effective Pixels

    Approx. 2.1 Megapixels

  • Lens

    30x Optical Zoom / 12x Digital Zoom

  • Minimum Object Distance

    10mm (wide) - 1200 mm (tele)

  • Auto Exposure

    Auto, Manual, Priority, AE (shutter, iris), Exposure Compensation, Blight

  • Shutter Speed

    1/1 to 1/10000 sec (59.94 Hz system)
    1/1 to 1/10000 sec (50 Hz system)

  • Gain

    Auto/Manual (0 to +43 db)

  • White Balance

    Auto, Indoor, Outdoor, One-push auto, ATW, Manual

  • Pan Angle/Speed

    Pan 100 deg./sec

  • Tilt Angle/Speed

    Tilt 90 deg./sec

  • Horizontal Viewing Angle

    63.7 deg. (wide)

  • Preset Positions

    256 - Position number 17 to 256 are stored as PTZF only

  • Camera Control Interface

    3G-SDI HD Video Output
    RS-422 Serial Interface

  • Video Output Specifications

    Horizontal Resolution: 1920x1080, 1280x720, 1024x576, 720x576, 720x480, 704x576, 640x480, 640x360, (H.264, JPEG)

  • Minimum Illumination

    1.4 lux (F1.6, 50 IRE, high sensitivity mode OFF, 30 fps)
    2.8 lux (F1.6, 50 IRE, high sensitivity mode OFF, 60 fps)
    0.35 lux (F1.6, 50 IRE high sensitivity mode ON, 30 fps)
    0.7 lux (F1.6, 50 IRE, high sensitivity mode ON, 60 fps)

  • S/N Ratio

    50dB

  • Video Output

    3G-SDI HD Video Output
    RS-422 Serial Interface

  • Signal System

    1080/59.94 (A/B), 50p (A/B), 29.97p, 25p
    1080/59.94i, 50i
    720/59.94p, 50p, 29.97p, 25p

  • Power Requirements

    DC 12V (DC 10.8 to 13.2V)

  • Power Consumption

    16.8W

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage Temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

  • Dimensions (W x H x D)

    6.25 x 6.5 x 6.5" (158.75 x 165.10 x 165.10mm)

  • Weight

    Approx. 1.4kg (3.09lbs)

4 Accessories for Sony SRG-300SE IP Streaming PTZ Camera with RC5-SRG EZ-2-Connect Kit, Black

  • All Accessories (4)
  • Extended Warranty (4)
Sony Protect Consumer Warranty for Cameras and Lenses Up To $6000, 2 Year Plan
Sony Protect Consumer Warranty for Cameras and Lenses Up To $6000, 2 Year Plan
$249.00
Recommended
Sony Protect Plus Consumer Warranty for Cameras/Lenses Up To $6000, 2 Year Plan
Sony Protect Plus Consumer Warranty for Cameras/Lenses Up To $6000, 2 Year Plan
$324.99
Recommended
Sony Protect Consumer Warranty for Cameras and Lenses Up To $6000, 3 Year Plan
Sony Protect Consumer Warranty for Cameras and Lenses Up To $6000, 3 Year Plan
$311.99
Recommended
Sony Protect Plus Consumer Warranty for Cameras/Lenses Up To $6000, 3 Year Plan
Sony Protect Plus Consumer Warranty for Cameras/Lenses Up To $6000, 3 Year Plan
$459.99
Recommended

About Sony SRG-300SE/PAC5

The SRG-3000SE/PAC5 is the latest addition to Sony's EZ-2-Connect PTZ Camera Package line up. With just one standard CAT cable, you can easily control and power the Sony SRG-300SE IP Streaming HD PTZ camera (black housing) plus save time and money on long distance installations (up to 300' over CAT5e/6 cable). The SRG-300SE/PAC5 consists of (1) SRG-300SE black camera, the Camera/Head-End Interface Modules, 1' HDMI Camera Cable, 1' UTP Camera Cable, 1' DC Power Camera Cable, 3' HDMI Camera Head-End Cable, 3' UTP Head-End Cable and Power Supply.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sony SRG-300SE IP Streaming PTZ Camera
  • Camera/Head-End Interface Modules
  • 1' HDMI Camera Cable
  • 1' UTP Camera Cable
  • 1' DC Power Camera Cable
  • 3' HDMI Camera Head-End Cable
  • 3' UTP Head-End Cable
  • Power Supply
  • Sony 1 Year Warranty
