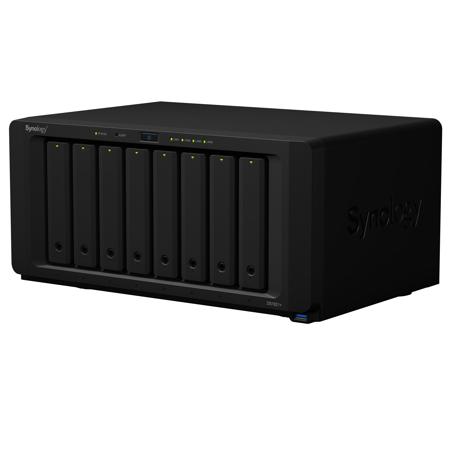

Synology DiskStation DS1821+ 8-Bay NAS Enclosure, Bundle with 8x Toshiba 4TB N300 Pro 7200 RPM SATA III 3.5" Internal NAS HDD

SKU: SYDS1821P12B

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Synology DS1821+ & WD Red Pro Specifications

Hardware: CPU

Hardware: CPU

Jump to...
  • CPU Model

    AMD Ryzen V1500B

  • CPU Architecture

    64-bit

  • CPU Frequency

    4-core 2.2 GHz

  • Hardware Encryption Engine (AES-NI)

    Yes

Hardware: Memory

Jump to...
  • System Memory

    4 GB DDR4 ECC SODIMM

  • Memory Module Pre-installed

    4 GB

  • Total Memory Slots

    2

  • Maximum Memory Capacity

    32 GB (2x 16 GB)

Hardware: Storage

Jump to...
  • Drive Bays

    8

  • Maximum Drive Bays with Expansion Unit

    18 (2x DX517)

  • M.2 Drive Slots

    2 (NVMe)

  • Compatible Drive Type

    3.5" SATA HDD
    2.5" SATA HDD
    2.5" SATA SSD
    M.2 2280 NVMe SSD

  • Maximum Single Volume Size

    108 TB

  • Hot Swappable Drive

    Yes

Hardware: External Ports

Jump to...
  • RJ-45 1GbE LAN Port

    4 (with Link Aggregation / Failover support)

  • USB 3.0 Port

    4

  • eSATA Port

    2

Hardware: PCIe

Jump to...
  • PCIe Expansion

    1x Gen3 x8 Slot (x4 link)

Hardware: File System

Jump to...
  • Internal Drives

    Btrfs
    EXT4

  • External Drives

    Btrfs
    EXT4
    EXT3
    FAT
    NTFS
    HFS+
    exFAT

Hardware: Temperature

Jump to...
  • Operating Temperature

    0 Degree C to 40 Degree C (32 Degree F to 104 Degree F)

  • Storage Temperature

    -20 Degree C to 60 Degree C (-5 Degree F to 140 Degree F)

  • Relative Humidity

    5% to 95% RH

  • Certification

    FCC
    CE
    BSMI
    EAC
    CCC
    KC
    VCCI
    RCM

  • Environment

    RoHS Compliant

Hardware: Others

Jump to...
  • System Fan

    120 mm x 120 mm x 2 pcs

  • Fan Speed Mode

    Full-Speed Mode
    Cool Mode
    Quiet Mode

  • Easy Replacement System Fan

    Yes

  • Brightness Adjustable

    Yes

  • Power Recovery

    Yes

  • Noise Level

    22.2 dB(A)

  • Scheduled Power On / Off

    Yes

  • Wake on LAN / WAN

    Yes

  • Power Supply Unit / Adapter

    250 W

  • AC Input Power Voltage

    100 V to 240 V AC

  • Power Frequency

    50/60 Hz, Single Phase

  • Power Consumption

    59.8 W (Access)
    26.18 W (HDD Hibernation)

  • British Thermal Unit

    204.05 BTU/hr (Access)
    89.33 BTU/hr (HDD Hibernation)

  • Dimensions (H x W x D)

    6.5 x 13.5 x 9.5" (166 x 343 x 243mm)

  • Weight

    13.2 lbs (6kg)

Software: Storage Management

Jump to...
  • Maximum Internal Volume Number

    64

  • Maximum iSCSI Target Number

    128

  • Maximum iSCSI LUN

    256

  • iSCSI LUN Clone/Snapshot, Windows ODX

    Yes

  • SSD Read / Write Cache

    Yes

  • SSD TRIM

    Yes

  • Supported RAID Type

    Synology Hybrid RAID
    Basic
    JBOD
    RAID 0
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • RAID Migration

    Basic to RAID 1
    Basic to RAID 5
    RAID 1 to RAID 5
    RAID 5 to RAID 6

  • Volume Expansion with Larger HDDs

    Synology Hybrid RAID
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • Volume Expansion by Adding a HDD

    Synology Hybrid RAID
    JBOD
    RAID 5
    RAID 6

  • Global Hot Spare Supported RAID Type

    Synology Hybrid RAID
    RAID 1
    RAID 5
    RAID 6
    RAID 10

Software: File Services

Jump to...
  • File Protocol

    CIFS/AFP/NFS/FTP/WebDAV

  • Maximum Concurrent Connections

    1000
    2000 (with RAM expansion)

  • Windows Access Control List Integration

    Yes

  • NFS Kerberos Authentication

    Yes

Software: Account & Shared Folder

Jump to...
  • Maximum Local User Accounts

    2048

  • Maximum Local Groups

    256

  • Maximum Shared Folder

    512

  • Maximum Shared Folder Sync Tasks

    16

Software: High Availability

Jump to...
  • Synology High Availability

    Yes

Software: Log Center

Jump to...
  • Syslog Events per Second

    800

Software: Virtualization

Jump to...
  • VMware vSphere 6 with VAAI

    Yes

  • Windows Server 2016

    Yes

  • Windows Server 2019

    Yes

  • Citrix Ready

    Yes

  • OpenStack

    Yes

Software: General Specifications

Jump to...
  • Networking Protocols

    SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

  • Supported Browsers

    Google Chrome
    Firefox
    Microsoft Edge
    Internet Explorer 10 onwards
    Safari 10 onwards
    Safari (iOS 10 onwards)
    Google Chrome (Android 6.0 onwards)

  • Supported Language

    Brazilian Portuguese, Czech, Danish, Dutch, English, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Thai, Traditional Chinese ,Turkish

Software: Add-on Packages

Jump to...
  • Antivirus by McAfee (Trial)

    Yes

Software: Central Management

Jump to...
  • Central Management System

    Yes

Software: Synology Chat

Jump to...
  • Maximum Users

    1500

Software: Document Viewer

Jump to...
  • Document Viewer

    Yes

Software: Download Station

Jump to...
  • Maximum Concurrent Download Tasks

    80

Software: exFAT Access

Jump to...
  • exFAT Access (Optional)

    Yes

Software: Synology MailPlus/Server

Jump to...
  • Free Email Accounts

    5 (Licenses required for additional accounts)

  • Maximum Number of Concurrent Users

    150

  • Maximum Server Performance

    1,484,000 e-mails per day, approx. 45GB

Software: Media Server

Jump to...
  • DLNA Compliance

    Yes

Software: Moments

Jump to...
  • Facial Recognition

    Yes

  • Subject Recognition

    Yes

  • Auto Color & Rotate

    Yes

  • Moments Select

    Yes

Software: Snapshot Replication

Jump to...
  • Maximum Snapshots per Shared Folder

    1024

  • Maximum of System Snapshots

    65536

Software: Surveillance Station

Jump to...
  • Maximum IP Cam

    40 (including 2 Free License)

  • Total FPS (H.264)

    1200 FPS @ 720p (1280x720)
    1050 FPS @ 1080p (1920x1080)
    600 FPS @ 3M (2048x1536)
    440 FPS @ 5M (2591x1944)
    320 FPS @ 4K (3840x2160)

  • Total FPS (H.265)

    1200 FPS @ 720p (1280x720)
    1200 FPS @ 1080p (1920x1080)
    1120 FPS @ 3M (2048x1536)
    600 FPS @ 5M (2591x1944)
    480 FPS @ 4K (3840x2160)

Software: Synology Drive

Jump to...
  • Recommended Number of Hosted Files

    1,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)

  • Recommended Number of Sync Clients

    550 (the number of connections that can be maintained when the recommended number of hosted files was reached)

Software: Synology Office

Jump to...
  • Maximum Users

    1800

Software: Video Station

Jump to...
  • Video Station

    Yes

Software: Virtual Machine Manager

Jump to...
  • Recommended Virtual Machine Instances

    8

  • Recommended Virtual DSM Number

    8

Software: VPN Server

Jump to...
  • Maximum Connections

    30

  • UPC Code

    192223245037

About Synology DS1821+ & WD Red Pro

Enhance your data storage and management capabilities with the Diskstation DS1821+ 8-Bay NAS Enclosure, bundled with 8x WD Red Pro 12TB 3.5" SATA III Internal NAS Hard Drives. This high-performance, scalable solution is designed for IT enthusiasts and small-to-medium businesses (SMBs) seeking a robust and efficient storage solution.

The DS1821+ is powered by an AMD Ryzen Quad-core 2.2GHz processor, ensuring swift data processing and improved throughput. With dual M.2 2280 slots for NVMe Cache, it offers accelerated cache to boost HDD arrays by over 20 times, enhancing your workflow and productivity.

This NAS enclosure supports up to 18 drives with two DX517 expansion units, offering vast storage capacity. It's designed to handle demanding applications and accommodate a higher number of concurrent users, making it an ideal solution for businesses with heavy data traffic.

The DS1821+ offers advanced file management and sharing capabilities with its web-based File Station tool. This user-friendly interface allows for easy drag-and-drop operations, advanced search, and filtering tools for seamless organization and file sharing. It supports multiple protocols including AFP, FTP, iSCSI, NFS, SMB, and WebDAV, ensuring wide-ranging compatibility.

Synology's iSCSI storage fully supports most virtualization solutions, enhancing work efficiency with its easy management interface. With VMware vSphere 6 and VAAI integration, it offloads storage operations and optimizes computation efficiency. It also supports Windows Offloaded Data Transfer (ODX) and OpenStack Cinder, enhancing data transfer and migration rates.

The DS1821+ integrates various backup applications, offering durable storage technologies to safeguard your valuable data on any device. It features Active Backup for Business, Hyper Backup, and Synology Drive, providing comprehensive backup solutions for VMware, Windows, file servers, and cloud data.

This NAS enclosure is engineered for reliability and is backed by Synology's three-year hardware warranty. It's powered by Synology DSM Central Management System, which allows for the management of multiple Synology NAS servers simultaneously on a centralized interface. It also includes Synology MailPlus, a secure and reliable mail server solution, and Synology Drive, a versatile solution for file management and synchronization.

With its comprehensive built-in security tools, the DS1821+ offers robust protection against evolving threats. It also supports Synology High Availability, ensuring seamless transition between clustered servers in the event of a server failure. This NAS enclosure is designed to work best with Synology Solid-State Drives, engineered to handle intensive 24/7 workloads and provide consistent high-performance.

Synology DS1821+ & WD Red Pro Features

  • Accelerated Performance
  • Maximize Performance
  • Expansion Made Easy
  • Includes Everything to Protect Your Data
  • Ready for 10GbE

Product Documents

User Manual

Key Features

  • Unleash peak performance with this Synology NAS, featuring blazing-fast data processing and transfer speeds.
  • Safeguard your critical data with advanced Synology NAS security features, including robust encryption.
  • Enjoy massive 96TB storage capacity for all your files, from important documents to media libraries.
  • Set up your Synology NAS effortlessly with an intuitive interface, perfect for both beginners and experts.
  • Access your files remotely from anywhere using Synology NAS, ensuring your data is always within reach.
  • Scale your storage as needed with this Synology NAS, adapting to your growing data requirements seamlessly.

What's in the box:

  • Synology Diskstation DS1821+ 8-Bay NAS Enclosure
  • Accessory Pack
  • AC Power Cord
  • 2x RJ-45 LAN Cable
  • User Manual
  • Synology 3 Year Limited Warranty
  • Bundle Includes:
  • 6x Toshiba 4TB N300 Pro 7200 RPM SATA III 3.5" Internal NAS HDD
