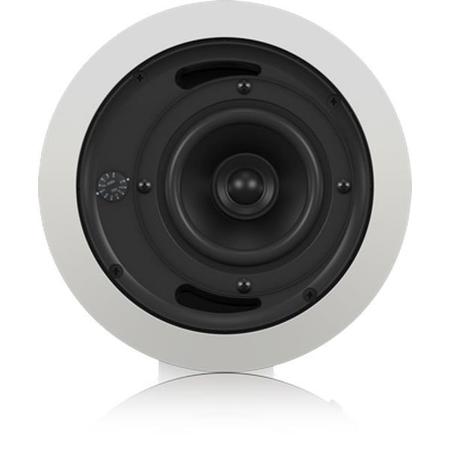

Tannoy CVS 4 4 Coaxial In-Ceiling Loudspeaker for Installation Applications 160W Peak Power White (Pair)

SKU: TANCVS4

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Tannoy CVS 4 Specifications

Applications

Applications

Jump to...
  • Applications

    Multi-zone foreground music & paging systems
    Boardrooms & offices
    Business music systems
    Airports, convention centers, hotels
    Reception / waiting rooms
    Houses of worship
    Retail outlets / shopping malls
    Lounges / bars
    Cruise ships
    Courtrooms

  • System Type

    Ceiling speaker with integral (blind mount) Back can

  • Frequency Response (-3dB)

    85Hz - 19kHz

  • Frequency Range (-10dB)

    77Hz - 22kHz

  • System Sensitivity (1W at 1m)

    87dB (1W = 2.45V for 6 Ohms)

  • Nominal Coverage Angle

    90 Degrees Conical

  • Coverage Angle (1kHz to 6kHz)

    102 Degrees Conical

  • Directivity Factor (Q)

    5.6 averaged 1kHz to 6kHz

  • Directivity Index (DI)

    7.1 averaged 1kHz to 6kHz

  • Rated Maximum SPL

    103dB (average)
    109dB (peak)

  • Power Handling

    Average: 40W
    Programme: 80W
    Peak: 160W

  • Recommended Amplifier Power

    80W at 6 Ohms

  • Nominal Impedance

    6 Ohms

  • Transformer Taps-via front rotary switch

    70V: 30W / 15W / 7.5W / 3.75 / OFF & Low Impedance operation
    100V: 30W / 15W / 7.5W / OFF & Low Impedance operation

  • Distortion at 10% Full Power

    At 250Hz:
    2nd Harmonic: 0.231%
    3rd Harmonic: 0.112%

    At 1kHz:
    2nd Harmonic: 0.229%
    3rd Harmonic: 0.253%

    At 10kHz:
    2nd Harmonic: 0.163%
    3rd Harmonic: 0.025%

  • Distortion at 1% Full Power

    At 250Hz:
    2nd Harmonic: 0.99%
    3rd Harmonic: 0.169%

    At 1kHz:
    2nd Harmonic: 0.816%
    3rd Harmonic: 0.027%

    At 10kHz:
    2nd Harmonic: 0.444%
    3rd Harmonic: 0.07%

  • Crossover

    2.7kHz

Transducers

Jump to...
  • Low Frequency

    4" (10.16cm) mineral loaded cone

  • High Frequency

    0.75" (1.91cm) soft dome

Enclosure

Jump to...
  • Enclosure

    Backcan: Zinc plated steel
    Baffle: Reflex loaded UL 94V-0 rated ABS
    Grille: Steel, with weather resistant coating

  • Safety Functions

    Safety ring located at rear of enclosure for load bearing safety bond

  • Clamping Design

    Security Toggle Clamp

  • Min / Max Clamping Range

    0.35" (0.89cm) / 1.34" (3.40cm)

  • Recommended Clamp Torque

    1.5Nm

Back Can Options

Jump to...
  • Cable Entry Options

    Cable clamp & squeeze connector for conduit up to 22mm

  • Connectors

    Removable locking connector with screw terminals with "loop through" facility

  • Safety Agency Rating

    UL-1480, UL-2043, CE

  • CVS4 Hole Cutout Diameter

    7.09" (18.01cm)

General

Jump to...
  • Dimensions

    Bezel Diameter: 8.39" (21.31cm)
    Front of Ceiling to Rear of Backcan: 7.97" (20.24cm)
    Front of Ceiling to top of safety loop: 8.46" (21.49cm)

  • Weight

    3.8kg (8.38 lbs)

About Tannoy CVS 4

The CVS 4 is a compact 160-Watt ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 4 offers the power handling, wide frequency response and low distortion more typically found in a studio reference monitor than a ceiling loudspeaker. The resulting sound is warm, with a nuanced and pristine clarity that envelopes the listener - without intruding.

Exceptional Sound and Reliability
The design comprises a 100 mm (4.00") mid bass driver with a coaxially mounted 19 mm (0.75") high frequency section mounted in a vented, injection molded, paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material. The mineral loaded polypropylene cone material and nitrile rubber surround enhance durability and long-term reliability. This compact unit is specifically designed for applications requiring the combination of excellent sonic quality for music and speech reinforcement and exceptional reliability.

Comprehensive Installation Package
Supplied with an integral zinc-plated steel back can, with recessed termination box, the CVS 4 satisfies the vast majority of installation application requirements. The removable locking connector has screw terminals for secure wire termination and "loop through" facility. Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit. Security toggle clamps make for quick and easy installation, while two tile support rails and one C-ring are also included in the package. A plaster (mud) ring is available as an optional accessory.

Tannoy CVS 4 Features

  • Coaxial full range ceiling loudspeaker for installation applications
  • 40 Watts continuous, 160 Watts peak power
  • 4" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
  • 0.75" ferrofluid cooled soft dome neodymium high frequency driver
  • Wide constant directivity dispersion for optimum coverage
  • UL 1480 certified for fire-protected signalling systems
  • UL 2043 certified for air-handling spaces
  • UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure
  • Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input
  • Low insertion loss 30 W line transformer with easily accessible tapping switch
  • Semi matt white finish fits unobtrusively in any environment
  • Powder coated perforated steel mesh grille with dust protection
  • Mounting C-ring and ceiling tile rails included
  • Phoenix connector with steel cover and strain relief clamping mechanism for fire rated cable

What's in the box:

  • Tannoy CVS 4 4 " Coaxial In-Ceiling Loudspeaker
  • Grille
  • Mounting C-Ring
  • 2x Tile Support Rails
  • Paint Mask
  • Removable Locking Connector with Screw Terminals
  • Cutout Template
  • Tannoy 10 Year Warranty with Registration
