Teradek Ace 750 4K HDMI Wireless Video Receiver

SKU: TE102242 MFR: 10-2242
Earn VIP Reward Points

Key Features

  • Experience reliable video transmission with this Teradek wireless receiver, up to 750 feet.
  • Enjoy pristine image quality with 4K HDMI, perfect for professional broadcast applications.
  • Achieve low latency streaming for real-time monitoring without noticeable delays.
  • Ensure a secure connection using AES-128 encryption for confidential video projects.
  • This wireless video receiver supports multiple mounting options for flexible setup.
  • Seamlessly integrate with Bolt 4K and Bolt 6 systems for expanded compatibility.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$64.99

2 Year

$119.00

3 Year

$169.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Teradek Ace 750 Specifications

Video
  • Video Outputs

    1x HDMI 1.4b Type-A receptacle

  • Color Sampling

    YCbCr 4:2:2 10-Bit
    RGB 4:4:4 8-bit

  • Delay Tx To Rx

    <0.001sec

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30 1080p23.98/24/25/29.97/30/50/59.94/60
    1080i50/59.94/60
    720p50/59.94/60

Video Processing

Jump to...
  • Video Compression

    Visually Lossless

Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

Outputs

Jump to...
  • Audio Outputs

    Embedded HDMI Audio Input (2 channel)

Interfaces

Jump to...
  • Configuration Interfaces

    OLED display:
    Input video format
    Selected frequency
    Video Quality %
    Link status

  • Switches

    On/Off Switch

  • Mobile App

    Bolt App

  • Desktop App

    Bolt Manager application for OSX & Windows

  • Usb Interface Functionality

    Upgrade via USB C

  • Bluetooth

    Yes

Network

Jump to...
  • Antennas

    5x Internal 2dBi antennas (included)

  • Wireless

    DFS Frequencies: 5.270 - 5.670 GHz Non-DFS Frequencies: 5.190 - 5.230 GHz, 5.755 - 5.795 GHz, and 5.945 - 6.425GHz

  • Rf Channel Selection

    Auto only, 40 MHz only, no blocked frequencies

  • Encryption

    AES-128, RSA-1024 key exchange

  • Rf Power

    17 dbm EIRP (<51mW transmit power)

  • Range

    Up to 750' (230m), line of sight

  • Unicast Multicast

    Yes - 1 TX to 6 RX

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones, can operate up to 4 sets in same location,

  • Interoperability Compatibility

    Compatible with Bolt 4k and Bolt 6 products

  • Power Input

    Barrel connector 7-18V

  • Battery

    None, optional Sony/Canon dual battery plate

  • Nominal Power Consumption

    6 Watts

Environmental

Jump to...
  • Operating Temperature

    32-104 Degree F (0-40 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Construction

    ABS Plastic / Milled Aluminum

  • Mountability

    Multiple mounting options with M3 and 1/4-20" holes

  • Dimensions

    4.39 x 3.19 x 1" (11.15 x 8.1 x 2.54cm)

  • Weight

    6.6 oz (187g)

  • UPC Code

    810156140303

About Teradek Ace 750

After extensive research and development, the Ace 750 RX emerges as a compact, lightweight HDMI wireless video receiver, specifically engineered to complement mirrorless cameras, camcorders, action cameras, and A/V workflows. This high-performance device effortlessly receives uncompressed, zero-delay, 4Kp30, HDR video and audio, boasting an impressive range of up to 750 feet (230m).

Designed with built-in antennas, the Ace 750 RX is cross-compatible with the Bolt 4K and Bolt 6 models, operating seamlessly in both 5GHz and 6GHz modes. This adherence to FCC and CE frequency usage and power output guidelines ensures reliable, interference-free performance.

The Ace 750 RX is not just about functionality, but also about convenience. It features an integrated hole pattern for easy mounting and can be powered using NP-F or LP-E6 batteries with an optional L-shaped plate.

The device's intelligent design allows the transmitter (TX) and receiver (RX) units to automatically detect and select the RF channel with the least interference in the 5Ghz or 6GHz range. This Auto-Frequency Switching feature ensures optimal signal quality, even in challenging environments.

Moreover, the TX can simultaneously send video to up to six RX devices using the intuitive Bolt Manager app, available for both iOS and Android platforms.

Built on the reliable wireless technology that powers our acclaimed Bolt product line, the Ace 750 RX maintains full compatibility with all Bolt 4K and Bolt 6 models. This device is a testament to our commitment to delivering top-tier, professional-grade electronics to our customers.

Teradek Ace 750 Features

  • 4Kp30 10-bit HDR
  • True zero-delay - less than 0.01 seconds of latency
  • 6GHz auto frequency-switching
  • Range up to 750' (230m)
  • Multi-receiver capable - up to 6 Receivers per Transmitter

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience reliable video transmission with this Teradek wireless receiver, up to 750 feet.
  • Enjoy pristine image quality with 4K HDMI, perfect for professional broadcast applications.
  • Achieve low latency streaming for real-time monitoring without noticeable delays.
  • Ensure a secure connection using AES-128 encryption for confidential video projects.
  • This wireless video receiver supports multiple mounting options for flexible setup.
  • Seamlessly integrate with Bolt 4K and Bolt 6 systems for expanded compatibility.

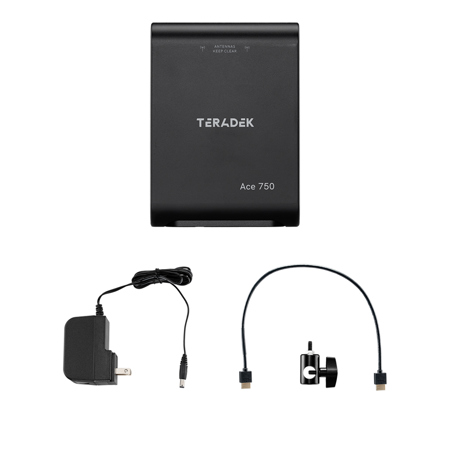

What's in the box:

  • Teradek Ace 750 4K HDMI Wireless Video Receiver
  • Lightstand Adapter 1/4-20"
  • 18" Ultra Thin HDMI Male Type-A to Type-A Cable
  • 6' PSU 18W AC Adapter 12VDC Cable
  • 18" P-Tap to R/A Barrel
  • Teradek 1 Year Limited Warranty
