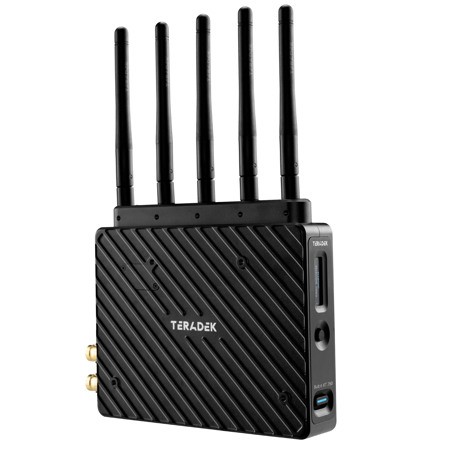

Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Receiver, Gold Mount, 750' Range

SKU: TE102302G MFR: 10-2302-G
Earn VIP Reward Points

Key Features

  • Experience stable connection with this Teradek receiver, ensuring seamless video transmission.
  • Enjoy high video quality with 12G-SDI and HDMI, perfect for professional broadcast applications.
  • Achieve low latency, less than 0.001sec delay, ideal for live streaming and real-time monitoring.
  • Extend your wireless range up to 750', offering flexibility for diverse shooting environments.
  • Benefit from easy setup with multiple mounting options, integrating smoothly into any workflow.
  • This durable receiver features robust milled aluminum, designed for reliable long-term performance.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Teradek 10-2302 Specifications

Video
  • Video Outputs

    12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)
    1x HDMI 2.0 Type-A receptacle

  • SDI Ancillary Data Support

    Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit
    HDMI: RGB 4:4:4, 8-bit

  • Delay Tx to Rx

    <0.001sec

  • Output Video Scaling

    Yes, Framerate and Resolution Scaling

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30/50/59.94/60
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Color Correction

    17 x 17 x 17 3D LUT (supports 10-bit color)

Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

Outputs

Jump to...
  • Audio Output

    Embedded SDI/HDMI Audio Output (2 Channel)

Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • USB Interface Functionality

    Upgrade via USB-C
    5pin Locking Connector CCU

  • Bluetooth

    2.4 GHz

Network

Jump to...
  • Antennas

    5x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230 GHz, 5.755 - 5.795 GHz, 5.945 - 6.425GHz
    DFS Frequencies: 5.270 - 5.670 GHz

  • RF Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • RF Power

    21 dbm EIRP

  • Range

    Up to 750' (228.6m), line of sight

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Power Consumption

    18 Watts

Battery

Jump to...
  • Battery Info

    Optional, Not Included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-Universal

  • Battery Quantity

    1

Physical

Jump to...
  • Material

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Multiple mounting options with 1/4"-20 and 3/8"-16 holes

  • Dimensions

    4.40 x 5.47 x 1.06" (112 x 139 x 27mm)

  • Weight

    15.2 oz (430g)

  • UPC Code

    818264027158

About Teradek 10-2302

Where high-quality video transmission is paramount, the Bolt 6 XT RX stands out as a top-tier, real-time wireless video receiver. This advanced device supports 4K video, leveraging Teradek's patented Zero-Delay technology to deliver color-accurate, True HDR videos in under 0.001 seconds.

Designed with the needs of diverse production environments in mind, the Bolt 6 XT RX offers a remarkable range of 750 feet, ensuring reliable connectivity even in expansive settings. Its compatibility with both SDI and HDMI inputs enhances its versatility, making it an ideal choice for use with a wide array of devices.

The Bolt 6 XT RX is not just about performance, but also about user experience. It boasts fast reconnection times and an intuitive setup process facilitated by the Bolt Manager App, available for iOS and Android. This innovative receiver maintains consistent, stable connectivity, providing a seamless user experience.

One of the standout features of the Bolt 6 XT RX is its utilization of the 6GHz band. This allows for superior image quality and reduced interference, even in high-traffic areas. The 6GHz wireless frequency provides Bolt 6 XT users with more options for frequency adjustments, thanks to 12 new channels.

The Bolt 6 XT RX is also designed to integrate seamlessly into your existing setup. Its redesigned, lightweight build runs cooler and operates 50% quieter than the Bolt 4K, making it a discreet yet powerful addition to your equipment. An integrated 5-pin USB port facilitates effortless, wireless camera-control setup when used with SmallHD Smart Monitors.

In addition to its impressive features, the Bolt 6 XT RX offers cross-compatibility with the entire Bolt 4K Series, including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules. This allows for greater flexibility and expansion of your workflow requirements.

The Bolt 6 XT RX uses the newly opened 6GHz wireless frequency, providing a quieter wireless environment with less interference. This ensures faster connections and a superior wireless experience, even in crowded spaces where interference and video dropouts are common. Despite its advanced capabilities, the Bolt 6 XT RX can still be set up in 5GHz Mode for backwards compatibility, demonstrating its adaptability to various user needs.

Teradek 10-2302 Features

  • Zero-Delay wireless video (<0.001sec)
  • 6GHz Wireless Frequency
  • Bolt 4K Cross-Compatibility
  • Lightweight and Quiet
  • Built in 5-pin USB for camera control
  • Outputs: 12G-SDI, HDMI 2.0

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience stable connection with this Teradek receiver, ensuring seamless video transmission.
  • Enjoy high video quality with 12G-SDI and HDMI, perfect for professional broadcast applications.
  • Achieve low latency, less than 0.001sec delay, ideal for live streaming and real-time monitoring.
  • Extend your wireless range up to 750', offering flexibility for diverse shooting environments.
  • Benefit from easy setup with multiple mounting options, integrating smoothly into any workflow.
  • This durable receiver features robust milled aluminum, designed for reliable long-term performance.

What's in the box:

  • Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Receiver (Gold Mount)
  • 2x Bolt 6 XT Battery Cover (Front/Rear)
  • 2x Screw Flat Head Phillips
  • 18" 2-Pin Connecter to PowerTap Cable (Bit 118)
  • 18" Ultra Thin HDMI Male Type-A (Full) to HDMI Male Type-A (Full) Cable
  • 18" 12G-SDI BNC to BNC Cable
  • 6' PSU 2-Pin Connecter to 30W AC Adapter (Int) Cable
  • 5x Antenna
  • 3.28' USB 2.0 Type-A Male to USB Type-C Male Cable
  • Teradek 1 Year Limited Warranty
