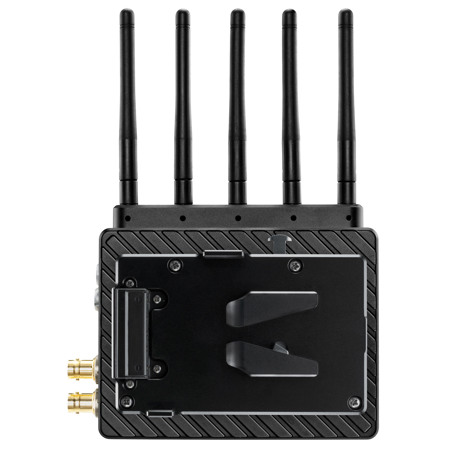

Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Receiver, V-Mount, 750' Range

SKU: TE102302V MFR: 10-2302-V
Earn VIP Reward Points

Key Features

  • Experience reliable wireless video with the Bolt 6 XT, offering a robust connection.
  • Achieve long range transmission up to 750' with this Teradek wireless receiver.
  • Enjoy stunning image quality with 12G-SDI and HDMI, supporting up to 4K resolution.
  • Benefit from low latency, ensuring near-real-time video for critical monitoring.
  • Simple to use with intuitive OSD, this wireless video transmitter is production-ready.
  • This affordable Teradek receiver offers professional features without breaking the bank.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$129.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Teradek 10-2302 Specifications

Video
  • Video Outputs

    12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)
    1x HDMI 2.0 Type-A receptacle

  • SDI Ancillary Data Support

    Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit
    HDMI: RGB 4:4:4, 8-bit

  • Delay Tx to Rx

    <0.001sec

  • Output Video Scaling

    Yes, Framerate and Resolution Scaling

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30/50/59.94/60
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Color Correction

    17 x 17 x 17 3D LUT (supports 10-bit color)

Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

Outputs

Jump to...
  • Audio Output

    Embedded SDI/HDMI Audio Output (2 Channel)

Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • USB Interface Functionality

    Upgrade via USB-C
    5pin Locking Connector CCU

  • Bluetooth

    2.4 GHz

Network

Jump to...
  • Antennas

    5x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230 GHz, 5.755 - 5.795 GHz, 5.945 - 6.425GHz
    DFS Frequencies: 5.270 - 5.670 GHz

  • RF Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • RF Power

    21 dbm EIRP

  • Range

    Up to 750' (228.6m), line of sight

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Power Consumption

    18 Watts

Battery

Jump to...
  • Battery Info

    Optional, Not Included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-Universal

  • Battery Quantity

    1

Physical

Jump to...
  • Material

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Multiple mounting options with 1/4"-20 and 3/8"-16 holes

  • Dimensions

    4.40 x 5.47 x 1.06" (112 x 139 x 27mm)

  • Weight

    15.2 oz (430g)

  • UPC Code

    818264027165

About Teradek 10-2302

When it comes to real-time wireless video reception, the Bolt 6 XT 750 12G-SDI/HDMI Wireless Receiver stands out with its innovative features and advanced technology. This high-quality receiver supports 4K video and utilizes Teradek's patented Zero-Delay technology, ensuring you receive color-accurate, True HDR videos in under 0.001 seconds.

Designed for a variety of production needs, the Bolt 6 XT 750 offers a remarkable range of 750', providing flexibility and convenience in your setup. It boasts fast reconnection times and an intuitive setup process, facilitated by the Bolt Manager App available for iOS and Android devices.

The Bolt 6 XT 750 is a reliable solution for stable and consistent connectivity, utilizing the 6GHz band to deliver superior image quality and reduced interference. In high-traffic areas, the 6GHz wireless frequency provides more options for frequency adjustments with 12 new channels, ensuring uninterrupted performance.

This advanced receiver is capable of passing metadata, timecode, and start/stop flags from most camera manufacturers, enhancing its versatility. The Bolt 6 XT 750 has been redesigned for seamless integration into your setup, featuring a smaller, lighter-weight build that runs cooler and 50% quieter than the Bolt 4K.

An integrated 5-pin USB port allows for effortless wireless camera-control setup when using SmallHD Smart Monitors, and an improved long-range wireless video mode. The receiver also offers new tools for high-end users to monitor their connections and signals, adding confidence to the workflow in challenging environments.

The Bolt 6 XT 750 is cross-compatible with the entire Bolt 4K Series, including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules, providing options to expand your workflow requirements.

Unlike many devices that use the crowded 5GHz frequency, the Bolt 6 XT 750 uses the newly opened 6GHz wireless frequency for a quieter wireless environment, resulting in faster connections and less interference for a superior wireless experience. However, it can still be set up in 5GHz Mode for backwards compatibility.

In summary, the Bolt 6 XT 750 12G-SDI/HDMI Wireless Receiver is a durable, high-quality, and reliable choice for video production and live events, offering innovative features and advanced technology for superior performance.

Teradek 10-2302 Features

  • Zero-Delay wireless video (<0.001sec)
  • 6GHz Wireless Frequency
  • Bolt 4K Cross-Compatibility
  • Lightweight and Quiet
  • Built in 5-pin USB for camera control
  • Outputs: 12G-SDI, HDMI 2.0

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience reliable wireless video with the Bolt 6 XT, offering a robust connection.
  • Achieve long range transmission up to 750' with this Teradek wireless receiver.
  • Enjoy stunning image quality with 12G-SDI and HDMI, supporting up to 4K resolution.
  • Benefit from low latency, ensuring near-real-time video for critical monitoring.
  • Simple to use with intuitive OSD, this wireless video transmitter is production-ready.
  • This affordable Teradek receiver offers professional features without breaking the bank.

What's in the box:

  • Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Receiver (V-Mount)
  • 2x Bolt 6 XT Battery Cover (Front/Rear)
  • 2x Screw Flat Head Phillips
  • 18" 2-Pin Connecter to PowerTap Cable (Bit 118)
  • 18" Ultra Thin HDMI Male Type-A (Full) to HDMI Male Type-A (Full) Cable
  • 18" 12G-SDI BNC to BNC Cable
  • 6' PSU 2-Pin Connecter to 30W AC Adapter (Int) Cable
  • 5x Antenna
  • 3.28' USB 2.0 Type-A Male to USB Type-C Male Cable
  • Teradek 1 Year Limited Warranty
