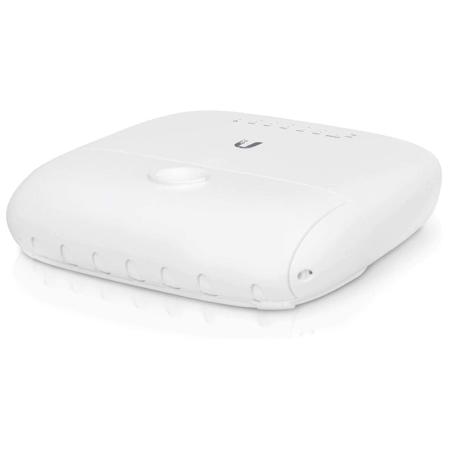

Ubiquiti Networks EP-R6 EdgePoint WISP Gigabit Router

SKU: UBIEPR6US

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ubiquiti Networks EP-R6 Specifications

  • Enclosure Characteristics

    Polycarbonate with UV Resistance

  • Max. Power Consumption

    7W (Excludes PoE Output)

  • Power Input

    DC Terminal Block or RJ45 (eth0)
    (Self-Correcting Polarity Protection on DC Terminal Block Only,
    Diode ORed Protection on All Power Inputs)

  • Power Supply

    Min. 24V / 0.3A (Excludes PoE Output Power)

  • VDC Input

    24V, 3A

  • Passive PoE Input

    24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth0
    (Do NOT Configure eth0 in PoE Output Mode
    if You Are Using a PoE Input Power Source)

  • Passive PoE Output

    5x 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth0 to eth4

  • Power Monitoring

    DC Terminal Block, Input Power
    RJ45, eth0, Input Power

  • Supported Voltage Range

    26 to 16VDC

  • Button

    Reset

  • LEDs

    System: Power
    eth0 to eth4: Speed/Link/Activity, PoE
    eth5/SFP: Speed/Link/Activity

  • Ports

    Data Ports: 5x 10/100/1000 RJ45 Ports
    1 Gbps SFP Port

  • Processor

    Dual-Core 880 MHz, MIPS1004Kc

  • System Memory

    256MB DDR3-1600 RAM

  • Code Storage

    256MB NAND

  • Certifications

    CE, FCC, IC

  • Pole Mount

    Yes

  • Operating Temperature

    -40 to 65 deg. C / -40 to 149 deg. F

  • Operating Humidity

    10 to 90% Noncondensing

  • Dimensions

    188.6 x 177.1 x 49.8mm / 7.43 x 6.97 x 1.96"

  • Weight

    605g / 21.34oz

  • UPC Code

    810354024436

About Ubiquiti Networks EP-R6

While the Ubiquiti Networks EdgePoint, part of the esteemed EdgeMAX platform, is a revolutionary WISP control point specifically designed for application-specific tasks. This innovative device seamlessly integrates EdgeMAX routing features with fiber backhaul and versatile powering capabilities, making it a breakthrough in tower deployment.

The EdgePoint is equipped with FiberProtect, a unique feature that significantly reduces electrostatic discharge (ESD) failures and electromagnetic interference (EMI). This not only improves data signal integrity but also consolidates the wired data backhaul to a single fiber cable run, facilitating long-distance connectivity.

The EdgePoint's all-in-one design is a testament to efficiency, eliminating the need for expensive cabinets, extraneous installations, and excessive maintenance. Its robust construction is designed to withstand harsh outdoor conditions, including wind, rain, and snow, while the included cable sleeve offers additional protection for the cables and cable opening.

The EP-R6 EdgePoint WISP Gigabit Router offers advanced applications such as load balancing and failover, providing redundancy and enhanced performance for outdoor wireless links. It is powered by either 24VDC or PoE and can support 24V passive PoE to power most Ubiquiti products.

The EdgePoint's intuitive user interface, accessible via a network port and web browser, offers a virtual view of the ports, displaying physical connectivity, speed, and status. It also provides robust features like VLAN interfaces for network segmentation, static routes, firewall policies, NAT rules, DHCP services, and comprehensive IPv6 support.

The EP-R6 model specifically features five RJ45 Ethernet ports and one SFP Ethernet port, offering versatile connectivity options. With its purpose-built design for WISP control, the EdgePoint combines advanced routing capabilities with fiber backhaul and versatile powering capabilities, making it a game-changer in the world of wireless internet service providers.

Ubiquiti Networks EP-R6 Features

  • Advanced FiberProtect technology to minimize ESD failures and EMI
  • All-in-one design for streamlined WISP control point deployment
  • Ruggedized outdoor-ready construction with cable protection
  • Load balancing and failover for reliable outdoor wireless links
  • Intuitive graphical user interface for easy setup and management
  • Versatile power options with support for 24V passive PoE

Key Features

  • Advanced FiberProtect technology to minimize ESD failures and EMI
  • All-in-one design for streamlined WISP control point deployment
  • Ruggedized outdoor-ready construction with cable protection
  • Load balancing and failover for reliable outdoor wireless links
  • Intuitive graphical user interface for easy setup and management
  • Versatile power options with support for 24V passive PoE

What's in the box:

  • Ubiquiti Networks EP-R6 EdgePoint WISP Gigabit Router
  • Metal Strap
  • Gigabit PoE with Mounting Bracket
  • Power Cord
  • Quick Start Guide
  • Ubiquiti Networks 1 Year Limited Warranty
