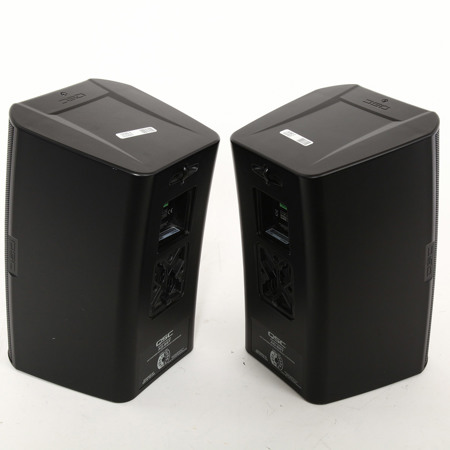

Used QSC AcousticDesign AD-S6T 6.5" 2-Way Surface Mount Loudspeaker, 60Hz-20kHz Frequency Range, 8 Ohms Rated Impedance, 70/100V Transformer, Pair, Black

The QSC AcousticDesign AD-S6T 6.5" 2-Way Surface Mount Black Loudspeaker (70/100V Transformer) is ideally suited for a wide variety of foreground and background sound reinforcement applications. The AD-S6T features a high quality 6.5" weather treated paper cone woofer on a 1.5" voice coil. A carefully selected 1" silk dome tweeter with a 1" voice coil perfectly matches the sensitivity and performance of the woofer for outstanding full-range reproduction.

Consistent and even 105deg. axisymmetric (conical) coverage is achieved through DMT (Directivity Matched Transition), a QSC innovation which matches the directivity patterns of the woofer and the high-frequency waveguide at the crossover point. The result is a coherent transition between transducers and improved off-axis response. The even, accurate frequency response of the AD-S6T is aided by a 60-watt low-loss, low-saturation transformer with selectable taps, including an 8 Ohms bypass. To preserve weather resistance, the rotary selector is located on the back of the enclosure, protected by a weather grommet.

With rugged ABS enclosures, sealed input panel covers and powder-coated aluminum grilles for weather resistance, the AcousticDesign surface mounted series exceed IEC60529 IP-54 ratings for dust and splash resistance. Installers will appreciate the award-winning X-Mount system included with each full- range AcousticDesign model. This ingenious mounting solution achieves unprecedented ease-of-installation in horizontal, vertical, wall or ceiling deployments. Knurled surfaces at the pivot planes ensure the load will not drift or sag over time. Articulation marks allow preconfiguration of the X-Mount while on the ground with no special tools required. Once secure, the loudspeaker installs in seconds, allowing the installer to work safer, smarter and faster with repeatable results.

To further enhance performance and speed of install with optimum result, advanced voicing filter sets using QSC Intrinsic Correction techniques are obtainable using Q-Sys networked audio processing platforms, including CXD amplifiers for a complete QSC systems solution. The QSC AcousticDesign AD-S6T features a stylish appearance free of obtrusive logo adornments for aesthetically sensitive installations. For your system integration needs, complete EASE, CF2, CAD and BIM file information is available online.
