Used Blackmagic Design ATEM Mini Live Production Switcher Pro

SKU: US1434273

This item is no longer available.

Overview
Compare
Learn
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2025-05-27T08:14:30

Rated 5 out of 5

Atem Pro ISO

Great product, easy to use and set up. Great service and fast shipping

TINORA L.

2024-04-05T05:09:39

Rated 4 out of 5

My key equipment for Livestreaming

I love this product. The only thing I wish was that it had 2 USB-C ports so I can record and use it for livestreaming at the same time. I don't want to buy the extreme version which has 8 camera inputs as its an overkill for me. Otherwise, this is a great product for livestreaming. The PiP function via buttons is just a joke where it does not let me use the size I want.. I hope they fix this in future firmware updates.

Krishnakumar V.

2023-11-09T10:30:13

Rated 5 out of 5

Very good item

Very good item

Johanna M.

2023-11-01T12:22:47

Rated 5 out of 5

Worth the money

Great product. Quality and performance is outstanding

KAMALYA M.

2023-02-23T06:23:24

Rated 5 out of 5

Fast shipping

Fast shipping and arrived in perfect condition.

JASON S.

2023-02-01T07:28:22

Rated 5 out of 5

Great video switcher

This is a great switcher. I use for live streaming church services and I am more than pleased with the efficiency of this device. It switches between 4 cameras or HDMI devices, I use it with cameras and an NDI feed from my Mac and it does wonders. I can do lower this, picture in picture and even run macros using the included software. It works great and is definitely worth the price.

FRANCISCO M.

2022-12-04T07:36:30

Rated 5 out of 5

Versatile switcher.

Go to switcher. Love the fact that it has iso record and can stream to the destination I choose.

John N.

2022-12-01T12:17:44

Rated 5 out of 5

Very affordable

Great idea for anyone else trying to get into live streaming

Sean A.

2022-10-24T16:16:09

Rated 5 out of 5

This is a very useful product. I highly recommend it to anyone working with audio/visual.

I am very happy with this product. I am using it for personal recording. It works very well. Thank you for having this product.

Phil T.

2022-10-21T21:34:11

Rated 5 out of 5

$200 Reduction in price made me buy it.

I had been eyeing the Mini for a long time and almost bought it a few weeks ago but decided to wait, and I'm glad I did. The Mini was discontinued and the Mini-Pro was reduced in price by $200 which was just enough of a reduction in price to make me buy. I own a lot of cameras. I hooked up four of them (Olympus OM-D E-M1 Mark II Mirrorless, Pentax K-70 DSLR, Nikon D3500 DSLR, Canon T2i DSLR) and then played around with it. I was impressed with how well it worked and more so by how well it accepted the old Canon T2i and low-end Nikon D3500. I was most impressed that I was able to record to an external drive connected to the USB port of the Mini-Pro and how it just kept on recording when one of the four cameras suddenly shut down (dead battery). This is going to be a lot of fun to play with.

CHARLES N.

2022-09-30T15:16:30

Rated 3 out of 5

Desappointed

The purchase was smooth and what motivated me the most was the possibility of fast delivery (next day) due to the urgency I had. The problem is that after 3 days of purchase I still haven't received the product and apparently it will take at least 3 more days, that is, I won't get the product in the time I need it. Disappointed.

FRANCISCO S.

2022-09-21T10:46:03

Rated 5 out of 5

Good value- very powerful

Easy to setup and use

Thomas K.

2022-07-01T10:21:57

Rated 4 out of 5

BlackMagic ATEM

I love this thing! I love how it can be networked and controlled by up to four different t computers giving me a broadcast team! I o my wish it had 2 hdmi outputs.

Michael C.

2022-06-15T09:00:02

Rated 5 out of 5

Great solution!

This is an amazing piece of tech that makes streaming so easy. More audio controls and a headphone out would be nice, but there are workarounds for these issues. Overall, I am very pleased!

ZACHARY S.

2022-05-17T08:14:39

Rated 5 out of 5

ATEM Mini Pro

This device has upgraded my production quality in a tremendous way. It?s lightweight, portable and a production beast. The only thing I wish is that there were two outputs so that I could have a multi view AND a program out but for the price and quality, this device absolutely delivers!!

TRANISE F.

2022-05-10T21:31:46

Rated 5 out of 5

It?s easy to use . But it doesn?t have turn off switch

It is a good product

WILFRED R.

2022-04-20T11:24:47

Rated 5 out of 5

You need this one

Its really reliable and easy to use. take the stress off my MacBook Pro.

carlos c.

2022-03-30T09:48:11

Rated 4 out of 5

So far so good.

Still testing it before the big event but I really like how the footage looks.

LOGAN A.

2022-03-17T09:47:10

Rated 5 out of 5

Awesome!

Clean and strait to the point!

ROY D.

2022-03-04T07:40:44

Rated 5 out of 5

ATEM Mini Pro

Great switcher, easy to learn and easy to use. Can?t wait to really start it on it?s paces

LEONARD S.

2022-02-11T09:08:21

Rated 5 out of 5

Great

Great Equipment and customer service

BRUCE T.

2022-02-01T08:11:40

Rated 4 out of 5

Good Product, but Clunky Workflow in Control Software

I like this encoder quite a lot - it is plug and play with my blackmagic cameras, and the switching / monitoring features are intuitive. I travel onsite for most of my work, so the fact that it is so lightweight and durable makes a huge difference. The control software however is not easy to use. The graphic overlay feature is especially time consuming. If Blackmagic does a major overhaul on the control software then I will have no complaints at all!

Matthew P.

2022-01-31T07:23:45

Rated 4 out of 5

Nice for the price

Smooth, does what it says. Only has pre set effect transition speeds but fine for the price.

MARTIN S.

2022-01-25T07:57:52

Rated 5 out of 5

If you're gonna start streaming... this is it.

It does what it says and doesn't it reliably. Can't think of anything negative about it and a great deal too.

ELLIOT C.

2022-01-23T09:57:23

Rated 5 out of 5

Great product

Easy to set up and use right out of the box. And the app gives tons of control over a bunch of cool features.

LAMONTE W.

2021-12-17T10:49:24

Rated 5 out of 5

Mini Pro upgrade

Upgraded from the ATEM Mini to the Mini Pro and found the difference is significant with the ability to preview all inputs. Used this for a live production and would not have been able to do it near as well with the older Mini.

TERRY L.

2021-12-05T13:08:20

Rated 5 out of 5

Great purchase

Does exactly what is described. Great for video podcast and simple live productions

MICHAEL L.

2021-10-15T08:38:07

Rated 4 out of 5

Mis IDSs

It is a good product but miss SDIs

HERMES T.

2021-10-15T08:37:09

Rated 5 out of 5

The Only thing that you need

The BMD Atem Mini Extreme is all that you need to be a professional live broadcaster

Hermes T.

2021-10-03T10:31:17

Rated 5 out of 5

I love it.

I work with it in our church and it work so great and so many a different features I love it.

JOHN J.

Blackmagic Design ATEM Mini Specifications

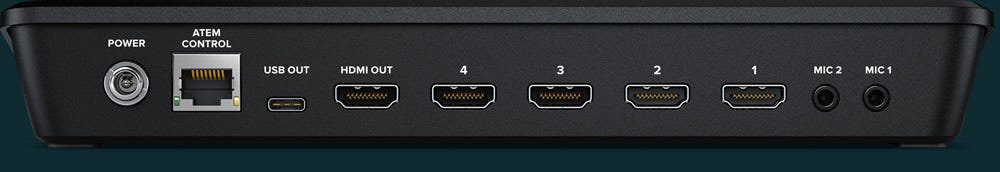

Connections

Connections

Jump to...
  • Total Video Inputs

    4

  • Total Outputs

    2

  • Total Aux Outputs

    1

  • Total Audio Inputs

    2x 3.5mm stereo mini jack

  • Total Audio Outputs

    No, embedded audio only

  • Timecode Connection

    No

  • HDMI Video Inputs

    4x HDMI type A, 10-bit HD switchable
    2-channel embedded audio

  • Video Input Re-Sync

    On all 4 HDMI inputs

  • Frame Rate and Format Converters

    On all 4 HDMI inputs

  • HDMI Program Outputs

    1

  • Ethernet

    Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection

  • Computer Interface

    1x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection

Standards

Jump to...
  • HD Video

    Input Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
    Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

  • Ultra HD Video Standards

    No

  • Video Sampling

    4:2:2 YUV

  • Color Precision

    10-bit

  • Color Space

    Rec 709

  • HDMI Input Resolutions from Computers

    1280 x 720p 50Hz, 59.94Hz and 60Hz
    1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 60Hz
    1920 x1080i 50 and 59.94Hz 60Hz

  • Colorspace Conversion

    Hardware based real time

  • Audio Mixer

    6 input x 2-channel mixer
    Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel
    Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control

Specifics/Keys

Jump to...
  • Upstream Keyers

    1

  • Downstream Keyers

    1

  • Advanced Chroma Keyers

    1

  • Linear/Luma Keyers

    2

  • Transition Keyer

    DVE only

  • Total Number of Layers

    5

  • Pattern Generators

    1

  • Color Generators

    2

  • DVE with Borders and Drop Shadow

    1

  • Interface

    Minimum monitor resolution of 1366 x 768

Streaming

Jump to...
  • Direct Streaming

    ATEM Mini Pro supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP)

Recording

Jump to...
  • Direct Recording

    1x USB-C 3.1 Gen 1 expansion port for external media to direct record a .mp4 H.264 with AAC audio at the ATEM video standard

  • Media Format

    Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems

Multi View Monitoring

Jump to...
  • Multi View Monitoring

    1x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters

  • Multi View Video Standard

    HD

Media Player

Jump to...
  • Media Players

    1

  • Channels

    Fill and key for each Media Player

  • Media Pool Still Image

    Capacity: 20 with fill and key
    Format: PNG, TGA, BMP, GIF, JPEG and TIFF

Control

Jump to...
  • Control Panel

    Built in control panel. Software control panel with camera control included. Supports optional hardware panel

  • Control Panel Connection

    Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro also supports direct USB-C connection
    Ethernet or USB-C used for updating the software

  • Control Panel Compatibilty

    Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel

  • Control Panel Included

    ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina or later and Windows 10 64 bit only

Software

Jump to...
  • Software Updates

    Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility

  • Configuration

    Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis

Operating Systems

Jump to...
  • OS

    Mac 10.14 Mojave, Mac 10.15 Catalina or later
    Windows 10 64 bit only

Power Requirements

Jump to...
  • Power Supply

    1x External 12V power supply

  • Power Usage

    36W

Environmental

Jump to...
  • Temperature

    Operating: 41 - 104 Degree F (5 - 40 Degree C)
    Storage: 14 - 140 Degree F (-10 - 60 Degree C)

  • Relative Humidity

    0% - 90% non-condensing

Physical

Jump to...
  • Dimensions

    9.35 x 4.07 x 1.38" (23.7 x 10.3 x 3.50cm)

  • Weight

    19.4 oz (549.9g)

Related Articles & Videos

Level Up Your Virtual Meetings
Blackmagic Design Just Launched the New ATEM Mini Pro

Blackmagic Design Just Launched the New ATEM Mini Pro

Blackmagic has released an upgraded version of the popular and affordable ATEM Mini. The new Read more

About Blackmagic Design ATEM Mini Live Production Switcher Pro - SKU#1434273

FEATURED REVIEWS

FANTASTIC DEVICE!

By Gary L.

This product works as advertised. It has made life much easier for me. It's not a high end switcher just based on the inputs and function capacity, so be sure to have your expectations in order. It's not made for high end productions. It's made for the prosumer market or record-to-web audience viewing on popular social media platforms such as YouTube & Facebook. It's great for me because I was using the Blackmagic Web Presenter as a pseudo switcher for a couple of cameras and was able to repl...

View full Review

Small and powerful.

By PETER O.

This is a very nice, very well built, small but powerful switcher/streamer. We are big Blackmagic users, and this little ATEM is a welcome addition to our team. It just works. Works connected to a computer to stream to the internet live pictures from HD cameras and stills. A video player can also be connected to transmit pre-recorded video. It can key green screen and titles stored in the computer. In the connected computer, audio, still storage and the video imputes can also be selected. Lim...

View full Review

Introducing The ATEM Mini Pro.

Blackmagic Design's ATEM Mini Pro switchers fully equips camera productions for live streaming to YouTube and innovative business presentations using Skype or Zoom! Simply connect ATEM Mini Pro and you can switch live between 4 high quality video camera inputs for dramatically better quality images. Or connect a computer for PowerPoint slides or gaming consoles.

Introducing The ATEM Mini Pro.

Live Production With Advanced Broadcast Features.

The built in DVE allows exciting picture in picture effects, perfect for commentary, with are loads of video effects. All ATEM Mini models have USB that works like a webcam so you can use any streaming software while the ATEM Mini Pro model adds live streaming and recording to USB disks. ATEM Mini Pro even has secret broadcast features built in so it can do high end work.

Live Production With Advanced Broadcast Features.

Faster Video & Live Streaming.

Live production is the fastest way to complete a finished program, plus you can stream it to a live global audience via YouTube at the same time. The USB webcam output of ATEM Mini connects to any computer and looks just like a built in webcam, so all streaming software for social media platforms work! With up to 4 HDMI inputs you can set up multiple camera angles such as wide shots along with independent close ups of each person in the performance. Or you can connect to a computer with a PowerPoint slide show, video clip playback, websites or gaming consoles. All switching is in real time so you can live stream to any social media platform such as YouTube, Facebook, TwitchTV and many more!

Faster Video & Live Streaming.

Self Contained Broadcast Quality Switcher.

ATEM Mini Pro's compact all in one design includes both a control panel as well as connections. The front panel includes easy to use buttons for selecting sources, video effects and transitions. The source buttons are large so it’s possible to use it by feel, letting the presenter do the switching! You even get buttons for audio mixing! On the ATEM Mini Pro model you also get buttons for record and streaming control as well as output selection buttons that let you change the video output between cameras, program and multiview. On the rear panel there are HDMI connections for cameras or computers, extra microphone inputs, USB for webcam out plus an HDMI "aux" output for program video.

Self Contained Broadcast Quality Switcher

Stream Live Interviews.

ATEM Mini Pro is perfect for interviews as you can connect multiple cameras for close ups of the host, or interviewee, as well as wide shots plus ATEM Mini Pro is so small the host can even switch in small studios. You can record via the HDMI output or live stream using Open Broadcaster software.


Business Presentations via Skype

Get dramatically better business presentations on Skype because ATEM Mini Pro makes Skype see it as a webcam, so you can select it in the Skype settings. One camera can be a close up, another for a wide shot and a computer for PowerPoint presentations. The presenter can even use picture in picture.


Live Stream eSport Competitions

Live stream eSport competitions to Twitch by simply connecting multiple gaming consoles and a camera for a presenter. ATEM Mini Pro operates up to 60 frames per second for fast gameplay and you can use picture in picture for commentary. You can even download titles from Photoshop.


Kickstarter and Investor Updates

Raise the professionalism of Kickstarter or investor presentations to fund your new product idea! Connect a camera for the presenter, a camera for a product close up and a computer for business plan slides. Then present live via Skype and post recordings online for investors to view.

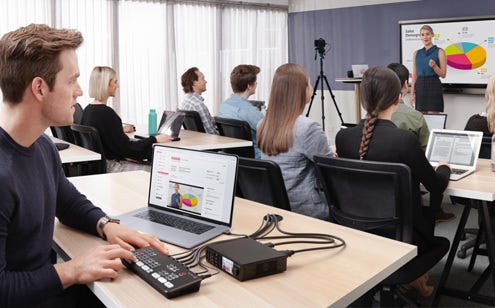

Education and Training

ATEM Mini Pro is perfect for educational videos! Setup is fast and easy, so you can travel to locations and record live multi camera video productions on a wide range of educational topics. Connect computers and cameras and use the ATEM Software Panel to load titles and perform video effects.

Live Stream via Ethernet on ATEM Mini Pro.

The ATEM Mini Pro model has a built in hardware streaming engine for live streaming via its built in Ethernet connection. That means you can live stream to YouTube, Facebook and Twitch in better quality, without dropped frames and with much simpler settings. Just select the streaming service and enter the streaming key. There are palettes in ATEM Software Control for streaming setup and status, plus streaming status is also displayed in the multiview. Streaming status is easy to understand as the data rate indicator shows internet speed required for the video format you're using. If you're technically minded, you can even hack the detailed streaming profiles in the XML preference file and load new services.

Live Stream via Ethernet on ATEM Mini Pro.

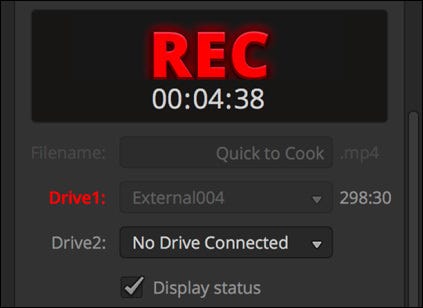

Record Direct to USB Flash Disks with ATEM Mini Pro.

The ATEM Mini Pro model also supports direct recording of your streaming data to USB flash disks. That means you get very long recordings in the same H.264 video files with AAC audio that you streamed, so you can direct upload to any online video site, such as YouTube and Vimeo. ATEM Mini Pro supports multiple disks when used with a USB hub or Blackmagic MultiDock, so when a disk fills recording can continue to a second disk for non-stop recording. Record settings and disk selection are set up in ATEM Software Control and there's a record status view in the built in multiview. You can even trigger recording on external Blackmagic Pocket Cinema Cameras.

Record Direct to USB Flash Disks with ATEM Mini Pro.

Work with Professional Microphones.

With two independent 3.5mm stereo audio inputs, you can connect desktop and lapel microphones. You can even connect a music player to generate introduction music after the live stream commences but before the program starts. With 2 extra stereo audio inputs, you can ensure a host and guest both have lapel microphones when doing interviews. All audio inputs to ATEM Mini Pro include buttons on the panel for adjusting audio level and enabling inputs into the audio mixer. ATEM Mini Pro features a full Fairlight audio mixer and all HDMI audio inputs and both microphone inputs are all connected separately to the audio mixer so you can live mix from all audio sources.

 Work with Professional Microphones.

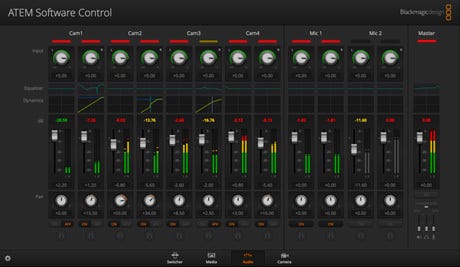

Secret Broadcast Features Built In!

While ATEM Mini Pro is easy to use, it's also hiding very powerful broadcast features! If you're interested in a career in the television industry, then ATEM Mini is perfect for training as it has the same features as switchers in high end broadcast studios. You get an ATEM Advanced Chroma Key, Fairlight audio mixer, DVE, still store for graphics and much more! Simply run the free ATEM Software Control app on Mac or Windows while connected via USB or Ethernet to access the extended features of the ATEM Mini. With a little experimentation you can learn how to produce broadcast quality live production. Only ATEM Mini is a true broadcast switcher hidden in a tiny and affordable design!

Secret Broadcast Features Built In!

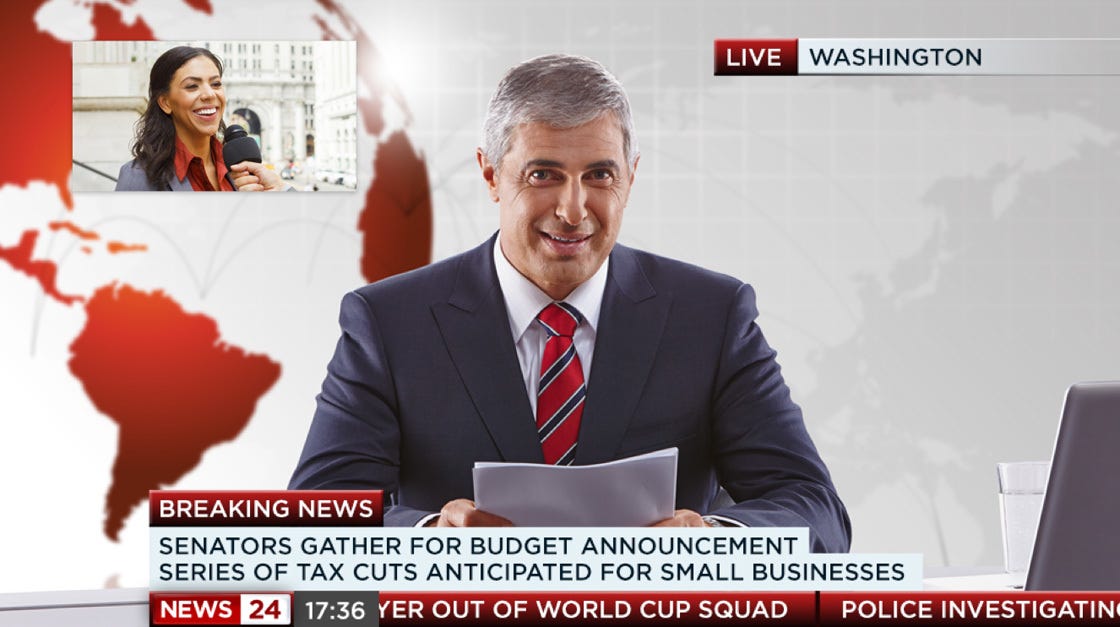

DVE for Picture in Picture, Transitions and Effects.

One of the most exciting features on ATEM Mini is the digital video effects processor, commonly referred to as a "DVE", that allows picture in picture effects and crazy DVE transitions! The DVE lets you create professional picture in picture effects with customizable 3D borders, shadows and lighting. The image quality is the same as high end ATEM switcher models and the DVE supports position, resize and scale, all in real time. The DVE can also be used to create amazing transitions with 16 different DVE squeeze and DVE push effects for adding excitement to your programming. The DVE features a "fly key" so you can use it with custom graphics to create graphic wipe transitions.

DVE for Picture in Picture, Transitions and Effects.

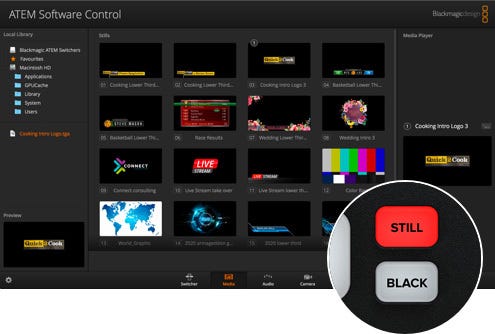

Built-in Graphics with Photoshop Plug-In.

The built in "media pool" allows the loading of up to 20 separate broadcast quality RGBA graphics for titles, opening plates and logos. The media player is used to output the selected image so it appears as an extra internal video source for use in graphics and titles. You can even use still frames for complex effects such as graphic wipes. ATEM Mini can even grab stills from the video output and add them to the internal media pool. Graphics can be loaded via ATEM Software Control or downloaded directly from Photoshop using the ATEM Photoshop plug-in. The Photoshop Plug-in is perfect for graphics that change often, such as scoreboards, as you can download directly into the media player.


Includes New ATEM Advanced Chroma Key.

For news or on-set presentation work, ATEM Mini is perfect as it has an upstream ATEM Advanced Chroma Key plus an additional downstream linear keyer! The chroma keyer is incredibly powerful and features a color picker to sample background colors for automatic generation of the key parameters. You get precise controls for edge and flare, and there is even a foreground color corrector so you can match the foreground and background layers for seamless compositions. The keyer can also be used for pattern and DVE keying. You can even use it for title overlays by creating graphics with a green or blue background and the keyer will knock out the green and make the background transparent.

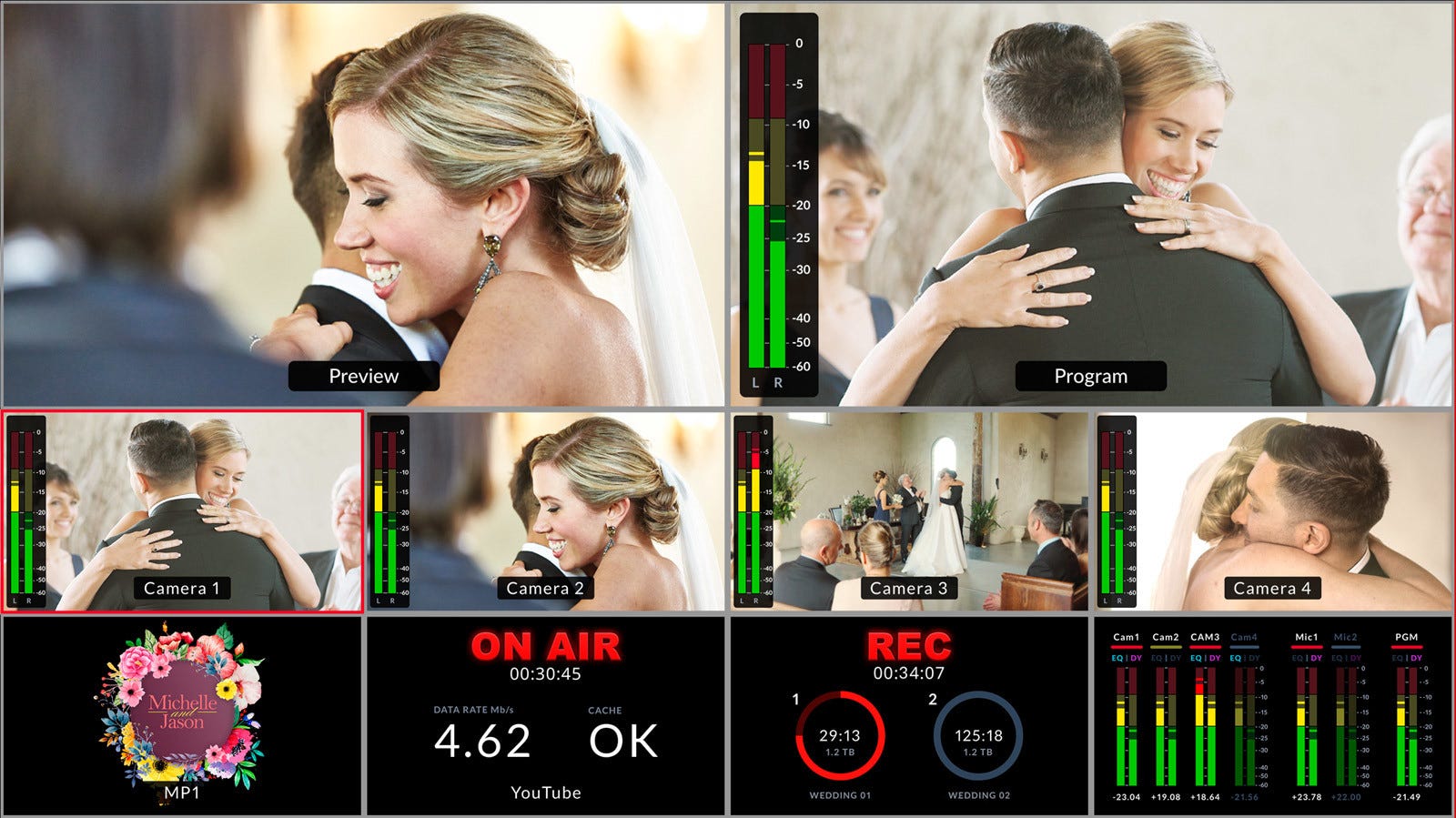

Monitor Sources and Status with ATEM Mini Pro Multiview.

When doing larger live productions with multiple cameras, it’s very useful to see all your video sources at the same time on a single monitor. The ATEM Mini Pro model includes a professional multiview that lets you see all 4 video inputs, plus preview and program on a single HDMI television or monitor! Simply select M/V on the front panel video output control buttons to select multiview. Each camera view includes tally indicators so you know when each source is on-air, and each view also has custom labels and audio meters. You can also see the media player so you know what graphic is selected. Plus multiview even includes status for recording, streaming and the Fairlight audio mixer.

Monitor Sources and Status with ATEM Mini Pro Multiview!

Control and Color Balance Cameras.

For a more broadcast style workflow, you can remote control your cameras from ATEM Mini! Blackmagic Pocket Cinema Camera 4K and 6K models can work as studio cameras with control sent via the HDMI connection to ATEM Mini. That means you can control the camera settings as well as the camera’s color corrector from ATEM Software Control. Imagine changing ISO and tint, plus lens iris, focus and zoom, so camera operators can focus on the shot. There are two types of control interface, CCU layout for traditional tint color control and a DaVinci color corrector interface allowing the camera’s built in DaVinci color corrector to add incredible digital film "looks" to your live production.

Control and Color Balance Cameras.

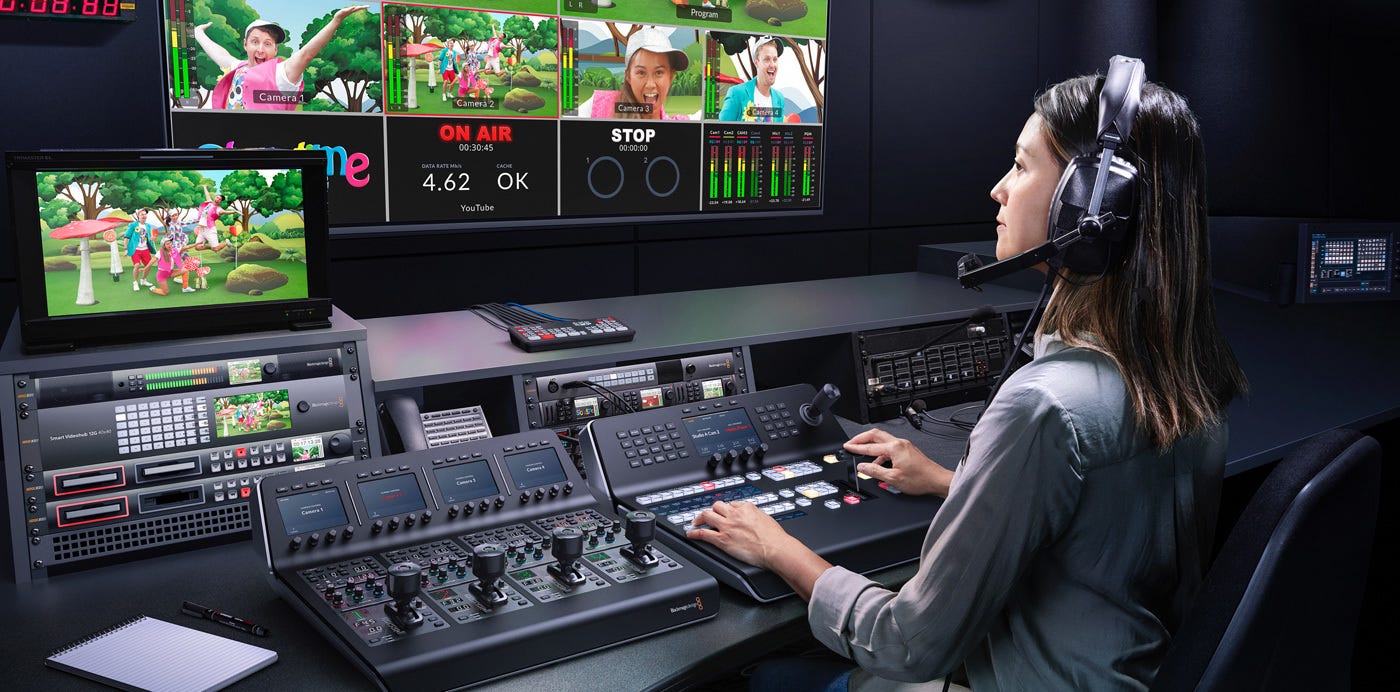

Match Cameras with an ATEM Camera Control Panel.

When working on live production, it’s critical all cameras are perfectly matched with good color balance for a consistent look as you cut and transition between the different cameras. Go beyond software control by adding an ATEM Camera Control Panel to control all 4 cameras connected to your ATEM Mini Pro. Each camera controller includes a large LCD screen with soft buttons and knobs and a full set of professional controls for live camera adjustments, so you get a very clear indication of camera parameters. The large joystick allows direct adjustment of iris and rotates to set black level. There's even red, green and blue knobs for fine control of camera color tint.

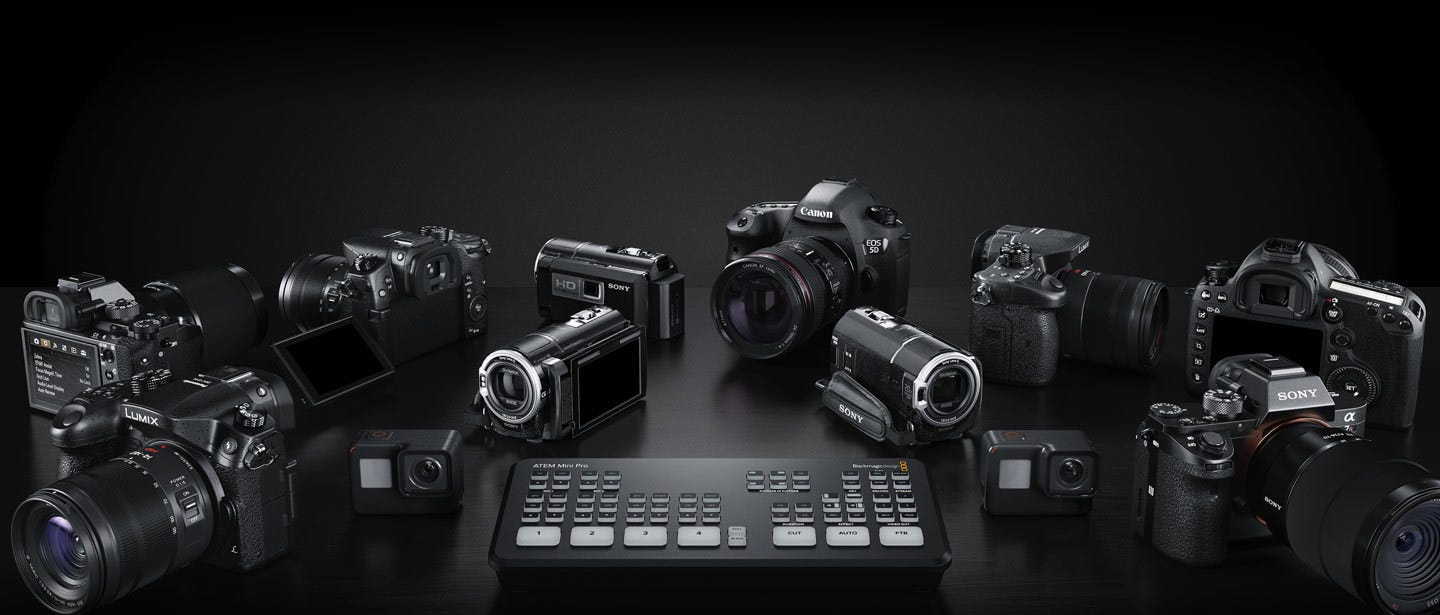

Connect up to 4 Independent Cameras.

With 4 independent HDMI inputs, you can connect up to 4 high quality video cameras. Video cameras with HDMI outputs are dramatically better quality than simple webcams as they use higher quality lenses and have better low light sensitivity. All video sources will re‑sync to the switcher if they operate at different video standards so you don't have to worry about connecting video devices as they all just work. Cameras with HDMI often support interchangeable lenses so you can change to wide angle lenses for wide shots and zoom lenses for close‑ups. Imagine taking advantage of the low light capability of better cameras for theater production, weddings, school concerts and music videos.

Connect up to 4 Independent Cameras.

What's in the box:

  • ATEM Mini Live Production Switcher Pro
  • External 12V Power Supply with Locking Connector and International Socket Adapters
  • Original Box
  • Firmware: 8.6
