RED DRAGON-X 13.8 Megapixel Super 35mm CMOS
5120 x 2700
25.6 x 13.5mm (1.01 x 0.53")
Diagonal: 28.9mm (1.14")
16.5+ stops
Up to 300 MB/s using RED MINI-MAG (480GB & 960GB)
Up to 225 MB/s using RED MINI-MAG (120GB & 240GB)
75 fps at 5K Full Height 1.7:1 (5120 x 3000)
96 fps at 5K Full Format (5120 x 2700), 120 fps at 5K 2.4:1 (5120 x 2160)
120 fps at 4K Full Format (4096 x 2160), 150 fps at 4K 2.4:1 (4096 x 1728)
150 fps at 3K Full Format (3072 x 1620), 200 fps at 3K 2.4:1 (3072 x 1296)
240 fps at 2K Full Format (2048 x 1080), 300 fps at 2K 2.4:1 (2048 x 864)
23.98, 24, 25, 29.97, 47.95, 48, 50, 59.94, 60 fps, all resolutions
From 2:1 Up to 22:1:
3:1 REDCODE at 5K Full Height (5120 x 3000) and 24 fps
6:1 REDCODE at 5K Full Height (5120 x 3000) and 60 fps
2:1 REDCODE at 5K Full Format (5120 x 2700) and 24 fps
8:1 REDCODE at 5K Full Format (5120 x 2700) and 96 fps
2:1 REDCODE at 4K Full Format (4096 x 2160) and 24 fps
6:1 REDCODE at 4K Full Format (4096 x 2160) and 120 fps
5K Full Height 1.7:1 (5120 x 3000), 5K Full Height 6:5 (3600 x 3000) and Ana 2x, 1.3x
5K Full Format (5120 x 2700), 2:1, 2.4:1, 16:9, 6:5, 4:1, 8:1 and Ana 2x, 1.3x
4K Full Format (4096 x 2160), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1 and Ana 2x, 1.3x
3K Full Format (3072 x 1620), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1 and Ana 2x, 1.3x
2K Full Format (2048 x 1080), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1 and Ana 2x, 1.3x
ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 4K (4096 x 2160) up to 30 fps
ProRes 4444 XQ and ProRes 4444 at 2K (2048 x 1080) up to 120 fps
ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 2K (2048 x 1080) up to 120 fps
DNxHR HQX at 4K (4096 x 2160) 12-bit up to 30 fps
DNxHR HQ, SQ and LB at 4K (4096 x 2160) 8-bit up to 30 fps
DNxHR 444 at 2K (2048 x 1080) 12-bit up to 120 fps
DNxHD 444 and HQX (1920 x 1080) 10-bit up to 120 fps
DNxHD HQ, SQ and LB (1920 x 1080) 8-bit up to 120 fps
Aluminum Alloy
Supports 33x33x33, 32x32x32, 26x26x26 and 17x17x17 3D LUTs
Variable number of 3D LUT outputs with DSMC2 expander module
User programmable shaper 1D LUTs
Tetrahedral interpolation, 16-bit processing
Integrated dual channel digital stereo microphones, uncompressed, 24-bit 48 kHz
Integrated R.C.P. Wi-Fi antenna
Ethernet, RS232 and GPI Trigger with DSMC2 expander module
3G-SDI (HD-SDI) and HDMI with DSMC2 expander module
1080p RGB or 4:2:2, 720p RGB or 4:2:2
480p RGB or 4:2:2 (HDMI only)
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
DSMC2 RED Touch 4.7" LCD, DSMC2 RED Touch 7.0" LCD and DSMC2 RED EVF (OLED) with cable-free connection
RED Touch 9.0" LCD, RED Touch 7.0" LCD, RED Touch 5.0" LCD, RED PRO 7" LCD, BOMB EVF (OLED) and BOMB EVF (LCOS) compatible with DSMC2 LEMO Adaptor A and LCD/EVF cable
4K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
2K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
1080p RGB 4:2:2, 720p 4:2:2 : QuickTime, JPEG, AVID AAF, MXF
1080p 4:2:0, 720p 4:2:0 : H.264, .MP4
Adobe Premiere Pro, AVID Media Composer, DaVinci Resolve, Edius Pro, Final Cut Pro, Vegas Pro
0 to 40 deg. C (32 to 104 deg. F)
-20 to 50 deg. C (-4 to 122 deg. F)
0% to 85% non-condensing
18 to 35mm
Comparable 35mm Focal Length: 28.8 to 56mm
Canon EF
Canon (APS-C)
17 Elements in 12 Groups
76.5 deg. to 44.2 deg.
9
Maximum: f/1.8
Minimum: f16
28cm (11.02")
72mm
1:4.3
Yes
Magnesium
4x M4 captive mounting screws
Power delivery via Rear pogo connector (13-Pin)
Communication via Rear I/O connector (4x40 Pin)
DC IN (6-Pin 1B LEMO socket)
3G-SDI output (75-BNC), 60 Hz max frame rate
HDMI 1.2 output (Type A socket), 60 Hz max frame rate
SYNC (Genlock IN / Timecode IN / Sync IN) (4-Pin 00B LEMO socket)
CTRL (Tally OUT / RS-232 Rx and Tx) (4-Pin 00B LEMO socket)
USB Power output (Type A socket), 1.5A
P-Tap Aux Power output (2-Pin), 3.0A
Stereo Analog Microphone input (3.5mm jack)
Stereo Headphone output (3.5mm jack)
2-position slider switch
RED BRICK
24-bit, 48 KHz, uncompressed, unbalanced mic level
0 to 40 deg. C (32 to 104 deg. F)
-20 to 50 deg. C (-4 to 122 deg. F)
0% to 85%, non-condensing
0% to 85%, non-condensing
Compatible with all DSMC2 firmware v6.2.17 or later
Aluminum
1280 x 720
315 pixels per inch (ppi)
60 Hz
1000:1
400 cd/m2 (typical)
8-bit RGB, 4:4:4 progressive scan (16.7 million colors)
70% NTSC
+/- 80 deg. (min) all axes
Projected Capacitive (PCAP), multi-touch
+ 90 deg. tilt, - 150 deg. tilt
Power and Communication via DSMC2 LCD/EVF pogo connector (26-Pin)
2x M4 captive screws
M2 x 0.4 x 4.5 mm (max depth)
Up, Down, User 1, User 2
4.0 W (typical)
0 to 40 deg. C (32 to 104 deg. F)
-20 to 50 deg. C (-4 to 122 deg. F)
0% to 85%, non-condensing
0% to 85%, non-condensing
V-Mount
Lithium-Ion
96Wh (14.4V,6.6Ah)
16.8V DC
14.4V DC
10.5A
80W each
DC 5.0V /2.3A
11V
Reverse charge, Over charge, Over discharge, Over current, Temperature protection
To charge: 0 to 40 deg. C (32 to 104 deg. F)
Recommended: 10 to 30 deg. C (50 to 86 deg. F)
To discharge: -20 to 45 deg. C (-4 to 113 deg. F)
Recommended: 10 to 40 deg. C (50 to 104 deg. F)
To store: -20 to 50 deg. C (-4 to 122 deg. F) (one month)
2x V-mount
Lithium-ion and NiCad
Sequential
AC 100-240V 50/60Hz
140VA max
2.7A max
4-pin XLR /36W max
-5 to 40 deg. C (23 to 104 deg. F)
1x USB 3.0 (backwards compatible with USB 2.0)
1x SATA for evolution series compatibility
Mac OS 10.9 or newer
Windows 7 / 8.1 / 10
480 GB
WEAPON (Carbon Fiber): Up to 300 MB/s
RED EPIC-W: Up to 275 MB/s
WEAPON (Magnesium) : Up to 225 MB/s
EPIC DRAGON : Up to 200 MB/s
SCARLET-W : Up to 170 MB/s
RED RAVEN : Up to 140 MB/s
SCARLET DRAGON : Up to 72 MB/s
10 to 40 deg. C (50 to 104 deg. F)
-20 to 50 deg. C (-4 to 122 deg. F)
20% to 80%, non-condensing
10% to 90%, non-condensing
Lens (Dia.xL): 78 x 121.0mm (3.07 x 4.76")
Canon Mount : 1.20 x 3.35 x 3.11" (3.05 x 8.51 x 7.90cm)
I/O Expander (HxWxD): 4.57 x 4.94 x 2.25" (11.61 x 12.55 x 5.72cm) (Connected to BRAIN)
Touch LCD (HxWxD): 4.21 x 4.92 x 0.49" (10.69 x 12.50 x 1.24cm) (With Hinge)
Battery (WxHxD): 97 x 146 x 39mm (3.82 x 5.75 x 1.54")
Charger and Power Supply (WxHxD): 87.4 x 183.3 x 126.6mm (3.44 x 7.22 x 4.98")
Card Reader (LxWxH): 5.12 x 3.31 x 0.63" (13.00 x 8.41 x 1.60cm)
RED MINI-MAG (HxWxD): 1.78 x 0.32 x 2.89" (4.52 x 0.81 x 7.34cm)
Camera BRAIN: 3.35 lbs (BRAIN with Integrated Media Bay)
Lens: 28.6 oz (810.80g)
Canon Mount: 0.67 lbs (0.30kg)
I/O Expander: 1.0 lbs (0.45kg)
Touch LCD: 0.5 lbs (0.23kg)
Battery: 640g (22.58 oz) approx.
Charger and Power Supply: 455g (16.05 oz) approx.
Card Reader: 0.44 lbs (0.20kg)
RED MINI-MAG: 0.11 lbs (0.05kg)

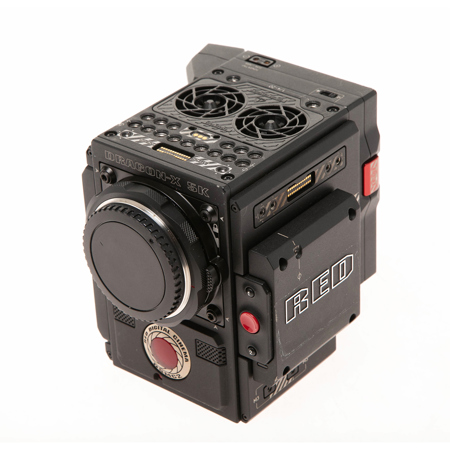

The DSMC2 DRAGON-X Camera Kit gives you all the components you need to begin shooting true professional-quality video. Designed and engineered to meet RED's exacting standards for superior image quality, the DSMC2 DRAGON-X camera can capture high-resolution motion and stills in 5K Full Format at up to 96 frames per second (fps) or 5K 2.4:1 Full Format at up to 120 fps. It also allows you to take advantage of RED's cinema-grade dynamic range and new IPP2 color science in-camera while offering the ability to record in REDCODE RAW (R3D) and Apple ProRes or Avid DNxHR/HD simultaneously. The DRAGON-X Camera BRAIN weighs in at just 3.35 pounds (1.52 kg) and delivers the ultimate blend of flexibility and performance for any situation.
- Camera BRAIN -
The camera BRAIN is the primary building block of the RED system, housing the image sensor and advanced computing components. A DSMC2 BRAIN is capable of data write speeds of 300 MB/s, can simultaneously record in REDCODE RAW and Apple ProRes or Avid DNxHR/HD and is offered with DRAGON-X 5K S35 sensor - delivering incredible dynamic range. DRAGON-X features the industry workhorse and award-winning DRAGON sensor, now with IPP2, delivering 6K cinematic imagery in a Super 35 format.
With features like cable-free peripherals, integrated media bay, wireless control, DSMC2 is the most powerful and intuitive camera to date. It is also compatible with a growing arsenal of modules and accessories-from RED and other Third-Party manufacturers. Tack on interchangeable OLPFs and lens mounts and DSMC2 gives you the ultimate control over your footage.
Superior Image Quality
DSMC2 combines advanced color science with incredible dynamic range. The result is cinema image quality that breathes life into your footage. Showcase the depths of shadows as well as highlight roll-off to capture otherwise imperceptible details.
Resolution Matters
All RED cameras deliver stunning resolution and image quality-creating clean and organic images that bring your footage to life.
Your Workflow. Simplified
Shooting RAW has never been this easy. RED's proprietary REDCODE RAW file format, also referred to simply as R3D, gives you maximum flexibility during post. DSMC2 offers greater creative freedom via its ability to simultaneously record in both R3D and Apple ProRes or Avid DNxHR/HD.
- Sigma 18-35mm f/1.8 DC HSM Art Lens for Canon EF -
Truly a revolutionary product, the Sigma 18-35mm 1.8 DC HSM is the first wide-angle to standard zoom lens to achieve a large aperture of 1.8. Designed specifically for APS-C sized sensors, the Sigma 18-35mm 1.8 translates to 27mm-52.5mm on 35mm camera. Tapping into Sigma's long history of lens innovations, the 18-35mm 1.8 DC HSM incorporates a wide glass molded aspherical lens with Special Low Dispersion (SLD) glass to compensate for aberrations and curvature at the widest angle.
Internal focusing and zooming allows for more usability and functionality. The 18-35mm is ideal for landscape photography, portrait photography, still life photography, snap shots, casual photography and close-ups and the Hyper Sonic Motor (HSM) ensures smooth, fast and accurate autofocusing. The use of Thermally Composite Material (TSC) reduces size and weight but increases accuracy of the lens construction.
Its new Global Vision design works features compatibility with the Sigma USB dock for further customization. A 9 blade rounded diaphragm also creates beautiful background blur. The Sigma 18-35mm 1.8 DC HSM is a new benchmark in photographic history and a must have for every camera bag.
- DSMC S35 Canon Mount -
The DSMC S35 Canon Mount offers support for a wide variety of Canon EF and EF-S compatible lenses to use with your DSMC or DSMC2 BRAIN. Available in lightweight machined aluminum-the DSMC Canon Mount offers modularity and convenience and supports autofocus and electronic iris control with compatible lenses. The mount attaches easily to the front of your camera BRAIN and uses a dual-ring lock system to secure Canon EF and EF-S lenses. The aluminum model feature captive mounting screws, so you'll never have to worry about searching for hardware.
- DSMC2 V-LOCK I/O Expander -
The DSMC2 V-Lock I/O Expander offers a variety of Input/Output connections, as well as an industry standard V-Lock mount to power your DSMC2 camera using RED BRICK batteries. Constructed from lightweight and durable magnesium, this expander module mounts directly to the rear of the camera BRAIN and offers connections for the following:
DC Power input (DC-IN)
HDMI 1.2 output (Type A socket)
3G-SDI output (HD-SDI, 75 O BNC)
CTRL & SYNC ports (2x 00B LEMO 4-Pin, Timecode and Genlock support)
AUX Power output (P-Tap 2-Pin female)
USB Power output (Type A, 5 V at 1.5 A for powering HDMI transmitters or small mobile devices)
Stereo Headphone output (3.5 mm jack)
Stereo Analog input (3.5 mm jack)
The DSMC2 V-Lock I/O Expander also features a selector switch that enables the BRAIN to automatically boot when power is provided via the DC-IN connector on the expander. This feature allows you to use a connected DC input supply to turn the BRAIN on and off when the camera is mounted in remote or difficult to maneuver locations. This expander is an ideal solution for a wide variety of production environments-from low-profile run-and-gun situations to studio shoots that require mobility.
- Touch 4.7" LCD -
The DSMC2 RED Touch 4.7" LCD offers a high definition-720p interactive viewing experience in the smallest and most compact form factor available for your DSMC2 camera system. The 4.7" LCD features a lay flat hinge design with a tilt range of approximately 240deg. (90deg. forward and 150deg. backward) for space savings or optimizing your configuration. Use the cable-free DSMC2 RED Touch 4.7" LCD as your primary display by mounting it to the top of your BRAIN with 1/4-20 mounting points-or mount it to the secondary (side) EVF/LCD port for a low profile secondary display.
The built-in 180deg. image rotation feature (mirror and flip) provides additional display mounting options by allowing monitor footage to be displayed upside down. The DSMC2 RED Touch 4.7" LCD is the ideal cable-free display for shooters looking for a small and lightweight camera rig. It is also compatible with RED EPIC and SCARLET cameras using the DSMC2 LEMO Adaptor B. In addition, used in conjunction with the DSMC2 LEMO Adaptor Collection, you can mount your DSMC2 display away from the camera body.
- IDX System Technology DUO-C98 Battery -
The DUO-C98 is the worlds most compact high capacity IATA friendly(<100Wh) Li-ion professional battery with multiple power outputs - perfect for handheld gimbal and aerial setups. The DUO-C98 comes equipped with two built-in D-Taps and a single built-in USB output to power ancillary accessories.
- IDX System Technology VL-2X Charger -
The VL-2X is a slim, lightweight 2-channel charger with the added advantage of an integrated 36W power supply. With a fanless design, the VL-2X also delivers high power charging without the noise of a typical quick charger. The VL-2X is a multi-chemistry charger for both Li-ion and Ni-Cad battery types.
- G-Technology ev/Series Reader RED MINI-MAG Edition -
Designed to optimize and simplify your RED camera workflow, the ev Series Reader, RED MINI-MAG Edition leverages high-performance connectivity for fast RED footage transfers and back-up. It is the latest accessory in the Evolution Series of high performance, flexible storage solutions. Transfer content quickly from your RED MINI-MAG media onto any ev Series-compatible or other G-Technology drive. And, when shooting on-the-go, slip it into the watertight protective ev Series All-Terrain Case.
- RED MINI-MAG -
The RED MINI-MAG is the smallest, fastest and most powerful media option available. Compared to their predecessor, the REDMAG 1.8", RED MINI-MAGs have faster read/write speeds to support higher frame rates and resolutions with minimal compression. RED MINI-MAG data transfer speeds are up to 50% faster on DSMC2, compared to their speeds on EPIC DRAGON. Capable of supporting simultaneous R3D and Apple ProRes or Avid DNx recording on DSMC2 camera systems-RED MINI-MAGs offer the ideal media solution-whatever your workflow might be.
Manufactured from robust aluminum, RED MINI-MAGs offer rugged reliability in a compact form factor. Available in multiple capacities, standard grey models provide maximum read/write speeds up to 225 MB/s-while the turbo-charged red models can achieve up to 300 MB/s for even lower REDCODE compression.
- DSMC2 Outrigger Handle -
The DSMC2 Outrigger Handle offers a low profile side handle-designed with an ergonomic molded grip and integrated Record Start/Stop button. Mounted to the Top Handle Port on your DSMC2 camera, the DSMC2 Outrigger Handle provides comfort and stability, as well as additional 1/4-20 mounting points for your peripheral camera components. The built-in Record button puts Start/Stop functionality right at your fingertips-so you're always ready to capture the perfect shot. The DSMC2 Outrigger Handle is ideal for shooters who use one hand on the handle, for grip and record button access and the other for lens adjustments or support.
