Used Teradek Bolt Pro 2000 3G-SDI and HDMI Wireless Video Transmitter, Up to 2000' Transmission Range, 5.19-5.23 GHz and 5.755-5.795 GHz Non-DFS Frequency #10-0991

SKU: US1597798 MFR: 10-0991
$817.00
New: $3,590.00
Used Savings: $2773 (77%)
OR
Earn VIP Reward Points

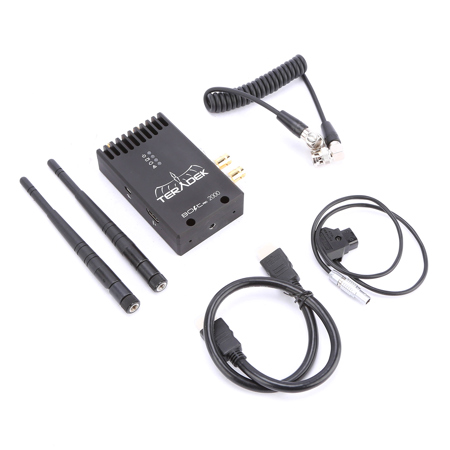

What`s in the box:

  • Teradek Bolt Pro 2000 3G-SDI and HDMI Wireless Video Transmitter
  • Hot Shoe Adapter
  • 2x Wireless Antennas
  • Bit 118 P-tap to 2-pin Lemo
  • SDI Cable
  • Case

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$103.99

3 Year

$161.99

4 Year

$220.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Teradek Bolt Pro 2000 Specifications

  • Input

    3G-SDI and HDMI

  • Video resolution

    1080p60/59.94/50/30/29.97/25/24/23.98
    1080psf30/29.97/25/24/23.98
    1080i60/59.94/50
    720p60/59.94/50
    480p59.94/576p50 (via HDMI ports only)
    480i(NTSC)/576i(PAL)

  • Color Sampling

    Depends on the input/output types and RX settings; SDI 10-bit with no format conversion and FPGA v.1.1.0 or later; 8-bit color for the rest

  • Video Inputs

    1 x 75 Ohm BNC
    1 x Type A receptacle HDMI

  • Video Outputs

    1 x 75 Ohm BNC(Loop-out)

  • Delay(TX to RX)

    <0.001sec

  • Audio Format support Wireless

    48kHz 24-bit PCM

  • Frequencies

    Non-DFS Frequencies:
    US : 5.19 - 5.23 GHz and 5.755 - 5.795 GHz
    DFS Frequencies:
    US : 5.27 - 5.55 GHz and 5.67 GHz

  • RF power

    22dbm EIRP(with two 5dbi TX antennas)

  • Range

    Up to 2000' line of sight

  • Unicast / Multicast

    Yes

  • Encryption

    AES-128

  • Noise rejection

    Can coexist with Wi-Fi and 5GHz cordless phones

  • Input Power

    2-Pin Lemo 7-28 VDC

  • Internal Battery

    No

  • Power Consumption

    1080p60: 7.7 Watts

  • LCD Screen

    No

  • Firmware

    Upgrade via Mini-USB

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Chassis Material

    Milled aluminum

  • Mountability

    Hot-shoe Mount
    Multiple mounting options with 1/4" holes

  • Dimensions

    4.3 x 2.6 x 1.0" / 10.92 x 6.60 x 2.54cm

  • Weight

    9.5oz / 269.32g

About Teradek Bolt Pro 2000 3G-SDI and HDMI Wireless Video Transmitter - SKU#1597798

The Teradek Bolt 2000 is a zero delay wireless video system that transmits uncompressed 1080p60, 4:2:2 video up to 2000ft over the unlicensed 5GHz band. Bolt 2000 is multicast capable up to 4 receivers and comes in 3G-SDI, HDMI and dual input/output varieties. All Bolt systems include the new GRAB engine, which allows users to output over USB 3.0 directly into a DIT cart or laptop.

USB 3.0 GRAB Engine
Capture cards are a thing of the past with Teradek's new GRAB Engine. Every Bolt RX includes a USB 3.0 output that allows you to ingest Bolt's uncompressed video feed directly into a computer or DIT cart with no added delay.

Real-Time Cross Conversion & Extras
All Bolt models support real-time format conversion from TX to RX, allowing you to automatically cross convert from HDMI to 3G-SDI (or vice versa) without any extra hardware. Each model also outputs a test pattern when the video signal is lost and both the 600 and 2000 models support quick RX pairing via the OLED screen and manual frequency selection.

Warranty Information

This used item has a FREE 180-day warranty. See details.

What's in the box:

  • Teradek Bolt Pro 2000 3G-SDI and HDMI Wireless Video Transmitter
  • Hot Shoe Adapter
  • 2x Wireless Antennas
  • Bit 118 P-tap to 2-pin Lemo
  • SDI Cable
  • Case
