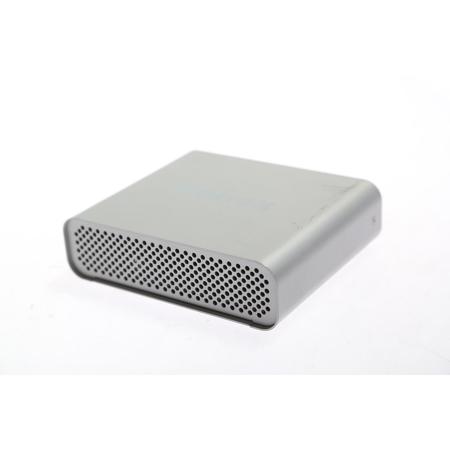

Matrox MXO Portable Broadcast Quality Audio / Video Output Adapter for Macintosh

Picture does not represent the actual item
See what's in the box

See all Matrox items

Used Matrox MXO Portable Broadcast Quality Audio / Video Output Adapter, for Macintosh

SKU: US1617699

This item is no longer available.

Recommended Items

Matrox : Picture 1 regular
Matrox Multi-I/O Simultaneous 4-Channel 3G/HD/SD Card
$1,495.00
Matrox : Picture 1 regular
Matrox Monarch LCS Lecture Capture Appliance
$2,495.00
Matrox Power Supply: Picture 1 regular
Matrox Power Supply Unit for Monarch HD Streaming and Recording Device
$30.00
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Matrox MXO Portable Broadcast Quality Audio / Video Output Adapter for Macintosh Specifications

  • Universal Compatibility

    Intel and PowerPC based computers and laptops

  • Video Standards

    NTSC, PAL, NTSC-EIAJ, 1080i, 720p

  • Regulatory compliance

    FCC Class A, CE Mark Class A, C-Tick Mark, VCCI RoHS Directive 2002/95/EC

  • Dimensions

    134mm (L) x 161mm (W) x 45mm (H)
    Adapter: 95mm (L) x 54mm (W) x 32mm (H)

  • External AC/DC Adapter

    100-240 VAC 50-60 Hz

  • Input

    IEC320-C8 inlet

  • Output

    +5V DC, 3A max., 2.5mm barrel type

  • Total power consumption

    10 watts

  • Connections

    DVI input and output
    DVI-I (single-link) 29-pin female connector

  • Genlock reference input

    SD analog black burst (bi-level) or HD tri-level sync
    BNC connector (75 ohm), terminated

  • SDTV SDI Output

    SD-SDI with 8 channels of embedded SDI audio
    24-bit, 48 kHz
    BNC connector (75 ohm)
    Compliant with SMPTE 259M-C, SMPTE 272M

  • SDTV S-Video & Composite video output

    PAL, NTSC, NTSC-EIAJ
    Frequency response: +/- 0.25 dB max to 5 MHz
    2T pulse response: 0.5% max
    Diff. Gain and Diff. Phase: < 2%
    BNC connectors (75 ohm)

  • SDTV Analog Component Video Output

    Betacam, Betacam SP (NTSC & NTSC-EIAJ)
    SMPTE/EBU N10 (PAL)
    Frequency response Y: +/- 0.25 dB max to 5 MHz
    Frequency response Pb, Pr: +/-0.2 dB max to 2 MHz
    Component channel delay: +/- 3ns

    Component S/N (Y, Pb, Pr): > 54 dB, unified weighted
    BNC connectors (75 ohm)

  • HDTV SDI output

    HD-SDI with 8 channels of embedded SDI audio
    24-bit, 48 kHz
    Compliant with SMPTE 292M, SMPTE 299M
    BNC connector (75 ohm)

  • HDTV Analog Component Video Output

    Supported video formats: 1080i 50, 1080i 59.94, 720p 59.94
    Compliant to EIA-770.3
    Frequency response Y: +/- 0.3 dB max to 28 MHz
    Frequency response Pb, Pr: +/- 0.4 dB max to 14 MHz
    Component channel delay: +/- 0.5 ns
    Component S/N (Y, Pb, Pr): > 57 dB, unified weighted
    BNC connectors (75 ohm)

  • Operating System Required

    Apple Mac OS x v10.4.7 or later.

  • Optical Drive Required

    DVD-ROM drive to install the MxO software.

  • Other Hardware Software Required

    Free USB port.
    Display card with DVI-I connector. Must be able to display 1920x1200 @ 60 Hz.

About Matrox MXO Portable Broadcast Quality Audio / Video Output Adapter for Macintosh

• The Matrox MXO connects to your Mac computer or laptop to provide broadcast-quality audio/video output. You can view your Apple Final Cut Pro projects or the output of other QuickTime-based applications such as Apple Soundtrack Pro and Motion, as well as Adobe After Effects. These will actually appear on TV and you can record them frame accurately to tape with perfect a/v sync no drop frames, no repeat frames. Other features that save you time and streamline your editing workflow include realtime HD to SD downscaling, and hardware acceleration of DVCPROHD, HDV, and Dynamic RT segments to full output resolution so the Final Cut Pro can do more for you in real time.

As an added bonus, Matrox MXO also provides flicker-free output of your computer desktop. You can easily broadcast and record Keynote and PowerPoint presentations, web browser sessions, and software application training. Matrox MXO is a cost-effective external box that's easy-to-use and portable. Using Matrox MXO in "Mastering Mode" lets you enjoy artifact-free previews and is the easiest way to get video out of Final Cut Pro or other Quick Time-based applications when you're looking for an alternative to FireWire. It offers many workflow enhancements that will improve your editing and content creation experience.

Matrox MXO Portable Broadcast Quality Audio / Video Output Adapter for Macintosh Features

  • Frame accurate, broadcast-quality audio/video output in HD and SD with guaranteed a/v sync
  • Universal compatibility - designed to run on both Intel- and PowerPC based Mac computers and laptops
  • Portable, hot-swappable external box
  • Realtime downscaling of HD projects to SD resolution with proper color space conversions
  • Inexpensive HD and SD monitoring - interlacing artifact elimination and gamma correction when previewing video on a Cinema Display or other DVI monitor
  • Hardware acceleration of DVCPRO HD, HDV, and Final Cut Pro Dynamic RT segments to full output resolution to save processing power for other operations
  • Genlockable HD/SD SDI, HD/SD analog component, Y/C, and composite outputs with up to 8 channels SDI embedded audio output and stereo audio monitoring
  • Flicker-free, broadcast-quality video output of your computer desktop with any application

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

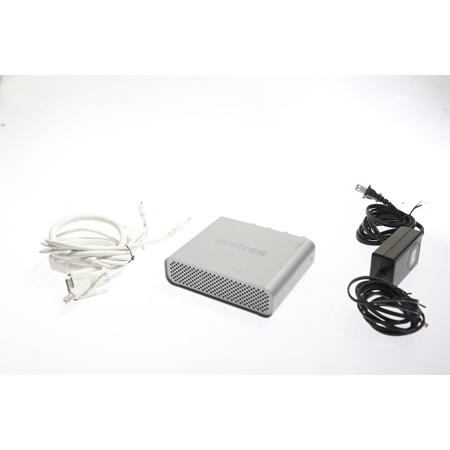

What's in the box:

  • MXO DVI Cable and System Audio Loop-Through
  • 1 Meter
  • External AC-DC Adapter
  • Power Cord
  • Y/C Video Adapter
