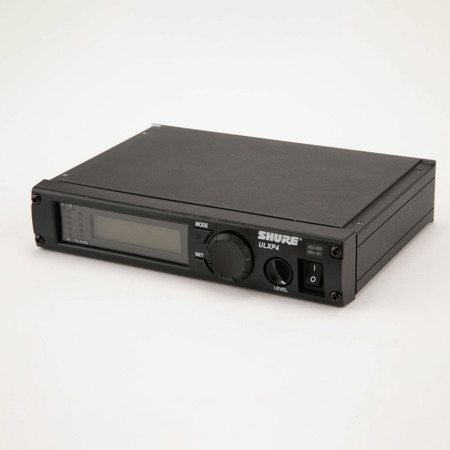

Shure ULXP4 Wireless Receiver - M1 Band, 662-698 MHz (Receiver Only) SKU#1675505

Picture does not represent the actual item
See what's in the box

See all Shure items

Used Shure ULXP4 Wireless Receiver - M1 Band, 662-698 MHz (Receiver Only)

SKU: US1675505

This item is no longer available.

Recommended Items

Shure ULXD8: Picture 1 regular
Shure ULXD8 Wireless Gooseneck Base Transmitter without Microphone
$813.00$581.00
Shure : Picture 1 regular
Shure ULXD2/K11 Digital Wireless Handheld Transmitter with KSM11 Mic Capsule
$1,990.00$1,591.00
Shure P10T: Picture 1 regular
Shure P10T Full-Rack Dual Channel Wireless Transmitter, J8A: 554-616MHz
$4,483.00$3,586.00
Shure QLXD2 with Beta87A: Picture 1 regular
Shure QLXD2 Wireless Handheld Microphone Transmitter with BETA 87A Capsule
$728.00$615.00
Shure QLXD2 with KSM9HS: Picture 1 regular
Shure QLXD2 Wireless Handheld Microphone Transmitter with KSM9HS Capsule
$1,088.00$879.00
Shure QLXD2 with SM87: Picture 1 regular
Shure QLXD2 Wireless Handheld Microphone Transmitter with SM87A Capsule
$717.00$582.00
Shure QLDX2 with Beta87C: Picture 1 regular
Shure QLXD2 Wireless Handheld Microphone Transmitter with BETA 87C Capsule
$728.00$615.00
Shure P10T: Picture 1 regular
Shure P10T Full-Rack 2-Channel Wireless Transmitter for PSM 1000 Monitor System
$4,483.00$3,586.00
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Shure ULXP4-M1 Specifications

  • RF Carrier Frequency Range

    554.000 to 865.000 MHz

  • Frequency Response

    25Hz - 15KHz, (+/-2dB)

  • Signal-to-Noise Ratio

    Greater Than 90dB

  • Approx. Working Range

    300' (100 m)

  • Type of Outputs

    Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold
    Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd
    (Both Outputs Feature: Voltage, Current and Phantom Power Protection)

  • Headphone Monitoring

    No

  • Power Requirements

    14 - 18VDC (negative ground), 550mA

  • # Of Channels

    Over 1400 User Selectable Frequencies (Channel Group / G3)

  • Display

    Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning

  • Mounting Options

    Rack/Table-Top Mount 1/2 Rack Space

  • Antenna Type

    Removable 1/2 Wave

  • Dimensions

    1.72 x 8.56 x 6.88" (43.68 x 217.42 x 174.75mm)

  • Weight

    39.98 oz (1133.41)

About Shure ULXP4 Wireless Receiver - M1 Band, 662-698 MHz (Receiver Only) SKU#1675505

The Shure ULXP4-M1 Single Professional Wireless Receiver offers an exceptional value in performance. It is for use with ULX Professional Wireless systems. The expanded feature set of the ULXP4 wireless receiver offers a direct path to full, clear audio signals. It also features advanced settings and controls including lockable settings, automatic frequency selection, group scan function and predictive diversity. The ULXP4-G3 offers a frequency range of 662-698 MHz.

Shure ULXP4 Wireless Receiver - M1 Band, 662-698 MHz (Receiver Only) SKU#1675505 Features

  • Automatic frequency selection
  • Over 1400 selectable frequencies
  • Predictive diversity
  • Advanced multi-function LCD: 5-segment audio meter, 5-segment RF level meter, 3-segment transmitter battery fuel gauge, group and TV channel display
  • Mic/Line switch
  • Removable 1/2-wave antennas
  • Frequency and volume lockout
  • Rugged metal chassis
  • 1/2 rack design
  • XLR and 1/4" outputs

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shure ULXP4 Single Receiver
  • Aftermarket Power Supply
  • Item Note: Missing 4x 1/2 Wave Antennas; Rack Mounting and Link Hardware
