Kirk Quick Release Plate for Tripod Head Quick Release Systems, Large

Picture does not represent the actual item
See what's in the box

See all Kirk items

Used Kirk Quick Release Plate for Tripod Head Quick Release Systems, Large

SKU: US1690438

This item is no longer available.

Recommended Items

Kirk Quick Release Plate: Picture 1 regular
Kirk Quick Release Plate for Sony Alpha A7R II Digital Camera
$55.00$30.00
Acratech : Picture 1 regular
Acratech 2155 Quick Release Plate for Nikon D100
$44.95
Acratech : Picture 1 regular
Acratech 2144 Quick Release Plate for Hasselblad Camera
$39.95
Kirk PZ-127: Picture 1 regular
Kirk Camera Plate PZ-127 for Nikon D700 Camera
$7.00$6.00
Kirk : Picture 1 regular
Kirk PZ-119 Arca-Type Compact Quick Release Plate for Canon EOS 1D MK III & 1DS MK III camera
$4.00$3.00
Kirk PZ-113: Picture 1 regular
KIRK PZ-113 NIKON D80 D90 QR PLATE
$19.00
Kirk PZ-127: Picture 1 regular
Kirk Camera Plate PZ-127 for Nikon D700 Camera
$7.00$6.00
Kirk : Picture 1 regular
Kirk PZ-70 Quick Release Plate for Nikon D100
$6.00$5.00
Kirk PZ-127: Picture 1 regular
Kirk Camera Plate PZ-127 for Nikon D700 Camera
$7.00$6.00
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-10-18T08:29:04

Rated 5 out of 5

Meets my needs

Meets all my requirements and is a good substitution for a RRS plate that costs much more.

MAURICE H.

2020-03-29T15:51:59

Rated 5 out of 5

Well worth it

Well made very smooth finish. Small size fits the base of many tripod heads. Larger size for large heads. Changing heads on the tripod is fast and eliminates the possibility of cross threading when in a hurry or cold stiff hands. Swap heads on one tripod or between tripods.

Ivan H.

2018-05-29T09:15:36

Rated 5 out of 5

Kirk Plates Are Solid

I have been using Kirk quick release plates for years. I haven't bought one in quite a long time. I recently acquired a Nikon D810 which I needed a QR plate for. I found that the attention to detail and workmanship of the Kirk brand has evolved tremendously over the years. It's not just a chunk of machined metal !! It's truly well thought out, in design.

Julie B.

2018-01-10T20:24:14

Rated 5 out of 5

Fantastic fit and function

Perfect fit. Smooth contours. Solid hold with zero play.

Jeff B.

2017-10-03T09:17:10

Rated 5 out of 5

Made right and in the USA

It’s well built

JAMES H.

2017-07-28T08:58:13

Rated 5 out of 5

SIGMA 50-100MM F1.8

I USE ITY FOR MY SIGMA 50-100MM F1.8 IT IS PERFECTLY BALANCED ON THE TRIPOD AND LOOKS LIKE IT BELONGS..NO COMPLAINTS

TIMOTHY I.

2016-11-17T01:39:31

Rated 5 out of 5

Works great! Excellent design

This is currently (November 2016) the only plate available for an XT-2. I have two XT-2 cameras, but initially only bought one plate because this Kirk plate has a quirky 3/4 length design. As soon as it arrived and I installed it, I ordered a second. The 3/4 length allows it to do everything (well, okay 90%) you want a plate to do, but it leaves the battery door free and clear. I have a full-length Fuji brand plate for my XT-1; sometimes the battery is a tight fit and getting it out of the camera with the full plate is difficult (e.g., like last weekend's super moon interval shooting on a tripod ... yep). Not so with this design. Highly recommended.

TIMOTHY G.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Kirk Quick Release Plate Specifications

  • Material

    6061-T6 Aluminum and Stainless

  • Finish

    Satin Silver Anodize

  • Tripod Head Mounting Screw

    3/8-16

  • Lock Screw to Prevent Rotation

    Yes

  • Safety Stop Feature

    Yes

  • Compatible

    Any tripod head with a 3/8-16 threaded mounting hole

  • Dimensions (Diameter x H)

    2.48 x 0.45" (63 x 11.4mm)

  • Weight

    1.9 oz (53.9g)

About Kirk Quick Release Plate for Tripod Head Quick Release Systems, Large

FEATURED REVIEWS

Works great! Excellent design

By TIMOTHY G.

This is currently (November 2016) the only plate available for an XT-2. I have two XT-2 cameras, but initially only bought one plate because this Kirk plate has a quirky 3/4 length design. As soon as it arrived and I installed it, I ordered a second. The 3/4 length allows it to do everything (well, okay 90%) you want a plate to do, but it leaves the battery door free and clear. I have a full-length Fuji brand plate for my XT-1; sometimes the battery is a tight fit and getting it out of...

View full Review

Meets my needs

By MAURICE H.

Meets all my requirements and is a good substitution for a RRS plate that costs much more.

Large quick release mounting plate for Tripods with a pan base diameter of approximately 2.25" or over.

The tripod head quick release plates, offer a 3/8-16 mounting bolt, anti-rotation mounting screw and two oversized safety stops to ensure a perfect and safe assembly.


One tripod, several tripod heads, and tired of screwing them on and off?

We have the perfect solution for you.

Our new tripod head quick release system will give you the ability to quickly and easily switch between ball heads, pan heads, gimbal heads and more.

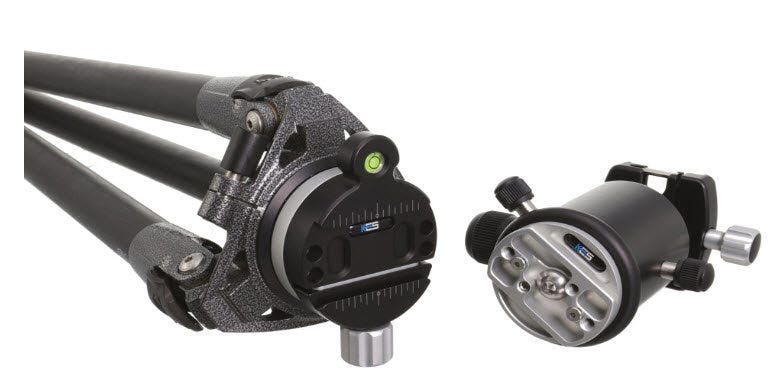

Our system consists of two parts. The tripod quick release and our tripod head quick release plates, both shown below.

Installation is simple, by installing the quick release on the top of your tripod and installing one of the two quick release plates on your tripod head that best suits your needs. You will be up in going in no time.

The tripod head quick release plates, offer a 3/8-16 mounting bolt, anti-rotation mounting screw and two oversized safety stops to ensure a perfect and safe assembly.

Follow the steps below to decide which assembly will work best for your needs depending on the base size of your tripod heads.

1

Tripod Quick Release Assembly

Tripod quick release is constructed from 6061-T6 aluminum and stainless. The mounting hole size will accept a 3/8-16 tripod stud. Also offered in the quick release is an anti-rotation lock screw, oversized safety stop pockets, and a captive quick release knob.

2

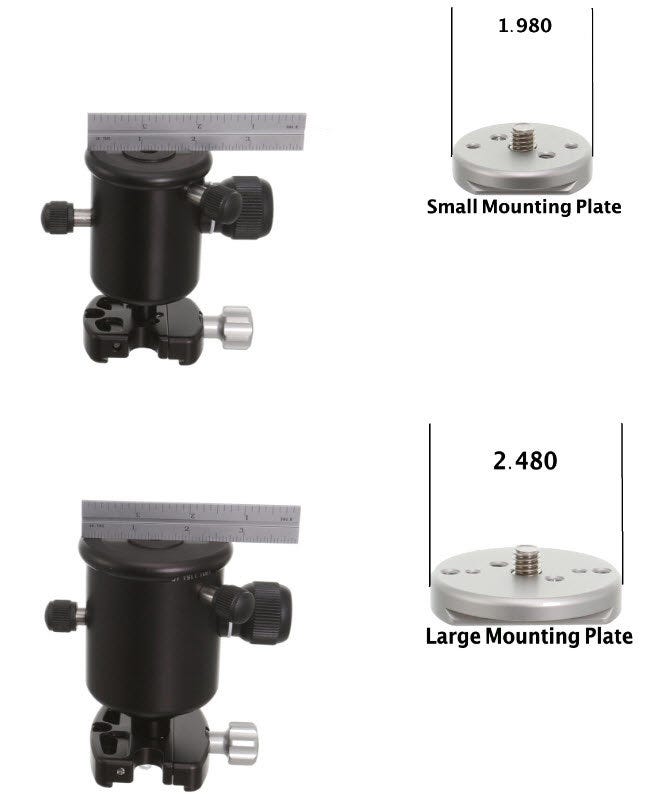

Follow the technique shown below to decide which quick disconnect plate will suit your needs.

The small quick disconnect plate is recommended for tripod head bases 2.250 inches and under.

The large quick disconnect plate is recommended for tripod head bases 2.250 inches and over.

3

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Tripod Head Quick Release Plate (Large)
  • Set Screw
  • Hex Wrenches
