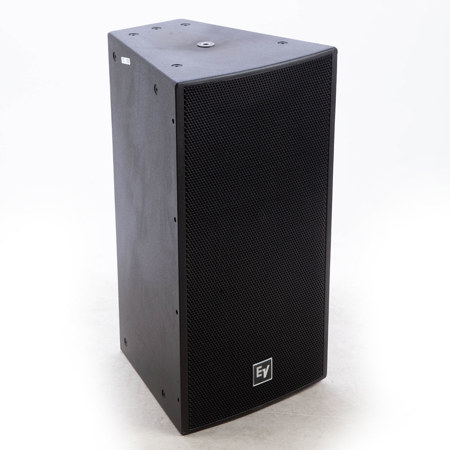

Used Electro-Voice EVF-1122S/96 12" 2-Way 90 x 60 Full-Range Fiberglass Loudspeaker, 58Hz-16kHz, 98dB Sensitivity, 131dB SPL, 8 Ohms, Single, Black

SKU: US1706230 MFR: F.01U.272.917
$409.00
New: $3,944.00
Used Savings: $3535 (90%)
OR
Earn VIP Reward Points

What`s in the box:

  • Electro-Voice EVF-1122S/96 12 " 2-Way 90 x 60 Full-Range Fiberglass Loudspeaker
Calculate Shipping

See Options

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Electro-Voice EVF-1122S/96FB Specifications

  • Environmental Specs

    Standard versions: IEC 60529 IP44

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Frequency Response

    -3dB: 58Hz-16kHz
    -10dB: 49Hz-19kHz

  • Recommended High-Pass Frequency

    65Hz

  • Sensitivity 1 W/1 m

    98dB

  • Max. SPL/1m (calc)

    131dB

  • Coverage (Nominal -6 dB) H

    90 deg.

  • Coverage (Nominal -6 dB) V

    60 deg.

  • System Power Handling

    Continuous/Program/Peak: 500/1000/2000W

  • LF Transducer

    SMX2121, 12" / 304.8mm Driver

  • HF Transducer

    ND2B, 2" / 50.8mm) Diaphragm Compression Driver

  • Crossover Frequency

    1450 Hz

  • Nominal Impedance (Passive)

    8Ohms

  • Minimum Impedance

    6Ohms

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grill

    Standard versions: 16 GA Galvanneal, Powdercoat, with Rotatable Logo

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 16 x 16.27" / 76.86 x 40.64 x 41.33cm

  • Weight

    63.05lbs / 28.6kg

About Electro-Voice EVF-1122S/96 12" 2-Way 90 x 60 Fiberglass Speaker - Single, Black

With the Electro-Voice EVF-1122S/96 12" 2-Way 90 x 60 Full-Range Fiberglass Black Loudspeaker, you get a high-performance audio solution that's built to withstand the elements. This robust loudspeaker is crafted from weather-resistant birch and features a protective EVCoat coating, ensuring its durability and longevity.

This versatile loudspeaker boasts unique acoustic and rigging designs, enabling the construction of vertical and horizontal clusters using any combination of loudspeakers. This flexibility allows for the creation of custom audio setups tailored to any application or budget.

The EVF-1122S/96 is not just a full-range loudspeaker; it's part of a comprehensive audio system. It's compatible with an array of full-range, low-frequency, and subwoofer loudspeakers, providing you with the tools to design a sound system that meets your specific needs.

Innovation extends to the input panels of this loudspeaker. They come with Phoenix-type connectors as standard, but also allow for the easy addition of a dual NL4-type connector cover plate or gland nut cover plate. This feature is particularly useful for weatherizing applications, ensuring your equipment remains protected in outdoor settings.

To further enhance its versatility, this loudspeaker features an externally accessible jumper for selecting passive or active operation. Additionally, an optional 70.7/100V transformer kit can be easily mounted to the input panel for use in distributed systems.

In summary, the Electro-Voice EVF-1122S/96 12" 2-Way 90 x 60 Full-Range Fiberglass Black Loudspeaker offers the flexibility to manage more venues with less equipment, while quickly and precisely addressing customer requirements. It's a testament to Electro-Voice's commitment to delivering high-quality, adaptable, and durable audio solutions.

Electro-Voice EVF-1122S/96 12" 2-Way 90 x 60 Fiberglass Speaker - Single, Black Features

  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60deg. to 120deg
  • 4th-order passive crossover with HF protection

What's in the box:

  • Electro-Voice EVF-1122S/96 12 " 2-Way 90 x 60 Full-Range Fiberglass Loudspeaker
