Ikan 5.6" HD-SDI LCD Monitor with Sony L DV Battery Adapter Plate - SKU#1713691

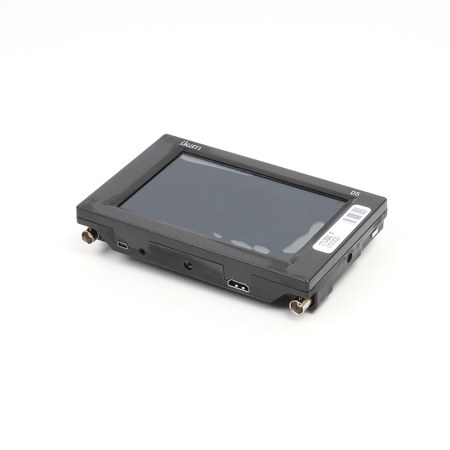

Picture does not represent the actual item
See what's in the box

See all iKan items

Used Ikan 5.6" HD-SDI LCD Monitor with Sony L DV Battery Adapter Plate, 1280x800 Resolution, 400:1 Contrast Ratio

SKU: US1713691

This item is no longer available.

Recommended Items

iKan VXF7-HB: Picture 1 regular
Ikan VXF7-HB 7" WUXGA High-Bright On-Camera Tally Field Monitor, 4K HDMI/3G-SDI
$919.99$849.99
iKan VXF7-V2: Picture 1 regular
Ikan 7" VXF7-V2 Tally 3G-SDI 4K HDMI On-Camera Field Monitor, V2
$819.99$749.99
iKan VXF7-HB: Picture 1 regular
Ikan VXF7-HB 7" WUXGA High-Bright On-Camera Monitor Deluxe Kit, 4K HDMI/3G-SDI
$849.99
iKan VXF7-V2: Picture 1 regular
Ikan 7" VXF7-V2 Tally 3G-SDI 4K HDMI On-Camera Field Monitor Deluxe Kit, V2
$869.99$799.99
iKan VL7e: Picture 1 regular
iKan VL7e 7" HDMI LCD Field Monitor with Canon E6 Battery Plate - SKU#1938943
$99.00$93.00
iKan D5: Picture 1 regular
Ikan D5 5.6" Field Monitor - SKU#1160065
$22.00$19.00
iKan : Picture 1 regular
ikan 8" V8000HDMI TFT LCD Monitor With Sony Plate , 800x480, Component, S-Video, & Composite Inputs, NTSC/PAL
$44.00$41.00
iKan D7w: Picture 1 regular
Ikan D7w 7" 3G-SDI/HDMI LCD Field Monitor Basic Kit - SKU#1493293
$65.00$56.00
iKan : Picture 1 regular
ikan Blitz 400 Pro Wireless Uncompressed 3G-SDI/HDMI Video Kit - SKU#1778114
$817.00$727.00
iKan D7: Picture 1 regular
Ikan D7 7" 3G-SDI LCD Monitor with IPS Panel and Canon E6 Plate - SKU#1421842
$65.00$57.00
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Ikan 5.6" HD-SDI LCD Monitor with Sony L DV Battery Adapter Plate - SKU#1713691 Specifications

  • Diagonal

    5.6"

  • Resolution

    1280 x 800

  • LCD Brightness

    300 NIT

  • Contrast Ratio

    400:1

  • Viewing angles

    160 (H) 160 (V)

  • Inputs

    HD-SDI, HDMI

  • Video Outputs

    HD-SDI

  • Audio Output

    Headphone

  • 3G SDI

    Supported Resolutions & Frame Rates: 1920x1080p @ 50, 59.94, 60 Hz

  • HD SDI

    Supported Resolutions & Frame Rates: 1280x720p @ 50, 59.94, 60 Hz
    1920x1080i @ 50, 59.94, 60 Hz
    1920x1080psf @ 23.98, 24, 25, 29.97, 30 Hz
    1920x1080p @ 23.97, 24, 25, 29.94, 30 Hz

  • SD SDI

    Supported Resolutions & Frame Rates: 720x480i @ 60Hz
    720x576i @ 50Hz

  • HDMI

    Supported Resolutions & Frame Rates: 720x480i & 720x480p @ 59.94, 60 Hz
    720x576i & 720x576p @ 50 Hz
    1280x720p @ 50, 59.94, 60 Hz
    1920x1080i @ 50, 59.94, 60 Hz
    1920x1080psf @ 24, 25, 29.97, 30 Hz
    1920x1080p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz

  • Operating Volts

    DC 6v to 24v

  • Dimensions (H x W x D)

    4.1 x 6.5 x 0.9" (10.4 x 16.51 x 2.28cm)

  • Weight

    0.6lbs (0.27kg)

About Ikan 5.6" HD-SDI LCD Monitor with Sony L DV Battery Adapter Plate - SKU#1713691

The iKan 5.6" HD-SDI LCD Monitor comes with Sony L DV Battery Adapter Plate. The iKan D5 (HD-SDI LCD) on camera field monitor has an abundance of features you need at prices you want. The D5 is outfitted with 1280 x 800 HD resolutions for the attention to detail a video professional need. Equipped with false color and peaking, the D5 enables the video professional to deliver precision shots. The D5's small, lightweight design is perfect for handheld rigs.

The D5's HDMI input is complemented by a 3G-SDI input/output along with a headphone audio out feature. The customized function buttons on the back of the D5 can be tailored for your workflow. Furthermore, the D5's frame has a rubberized texture for better grip and handling making it easy to maneuver.

Ikan 5.6" HD-SDI LCD Monitor with Sony L DV Battery Adapter Plate - SKU#1713691 Features

  • 1280 x 800 HD panel
  • False color with adjustable under luminance and over luminance warning
  • Clip guide with adjustable threshold
  • Peaking with red outline
  • DSLR Scaling

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Ikan D5 5.6" On Camera Monitor
  • Ikan BP5 Sony L Series DV Battery Plate for Ikan Monitors
  • Item Note: Monitor Has Plasticizer Migration. Monitor Has Bubbles Inside of the screen; Missing Power Supply; Sun Visor; Ikan Ultra-Heavy Duty Camera Shoe Mount; Menu Wheel Plastic Plate
