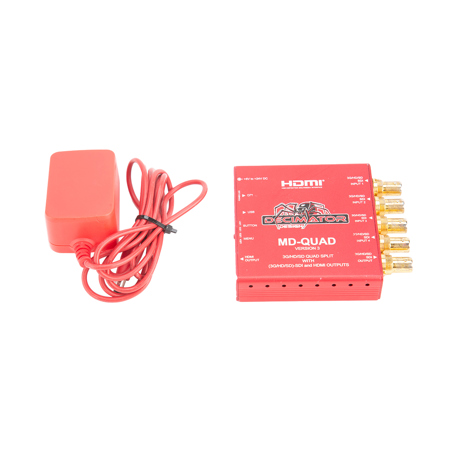

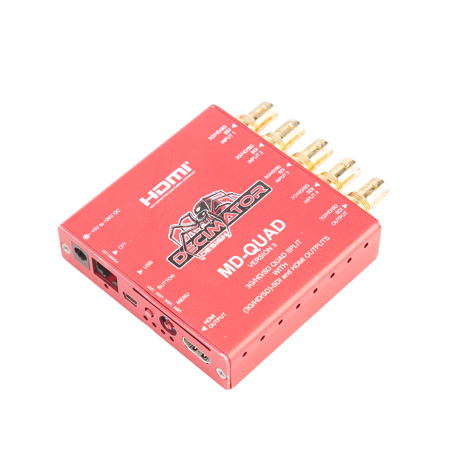

Used Decimator MD-QUAD (3G/HD/SD)SDI Quad Split with (3G/HD/SD)-SDI and HDMI Outputs

Decimator MD-QUAD (3G/HD/SD)SDI Quad Split with (3G/HD/SD)-SDI and HDMI Outputs Features

• Low cost miniature (3G/HD/SD)-SDI 4 to 1 Quad Split Multiviewer or 4 to 1 input multiplexer
• Selectable output format in Quad-Split mode
• Low latency buffering for each input allowing non-synchronous inputs
• Linked (3G/HD/SD)-SDI and HDMI outputs
• 4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
• 8-Channel Audio metering for each quadrant
• The first two audio groups individually selectable
• Vertical or Horizontal Bars
• AES/EBU, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
• Bar & Float, Bar only or Float only (Float is not available for MQS serials)
• Transparency adjustment
• Separate Bar and Float Ballistics control
• Adjustable Reference level
• Red, Yellow and Green Range adjustment
• Bar thickness adjustment
• Margin adjustment
• Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
• Variable aspect ratios per quadrant
• All 4 inputs can be displayed simultaneously on a single output
• On-Screen 20 character IDs (UMDs) for each input
• An extensive selection of user controllable functions via an easy to use rotary encoder for menu selection
• LEDs and a push button can then be used for status and control
• USB port for control and updates
• GPI on RJ-45 for remote switching and Locking DC Power Socket
