BlackMagic Design Battery Converter SDI to HDMI - SKU#1890120
Blackmagic Design CONVBATT/SH: Picture 1 thumbnail
Blackmagic Design CONVBATT/SH: Picture 2 thumbnail
Blackmagic Design CONVBATT/SH: Picture 3 thumbnail
See all Blackmagic Design items
$5 PRICE DROPUsed Condition: Well Used

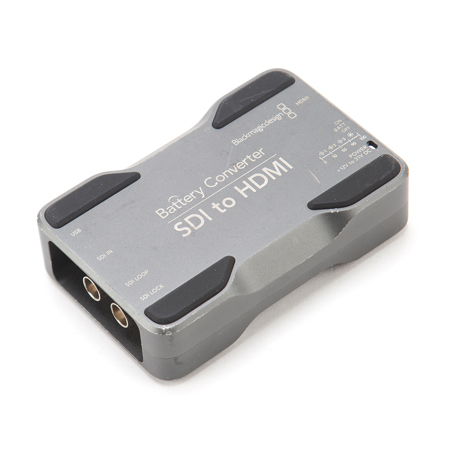

Used BlackMagic Design Battery Converter SDI to HDMI

SKU: US1890120 MFR: CONVBATT/SH
Be the first to review this item
$40.00
$45.00
Save: $5 (11%)
Earn VIP Reward Points
See all Used options (1) from $40

What`s in the box:

  • BLACK MAGIC BATTERY CONVERTER SDI TO HDMI

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

Add to List

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.99

2 Year

$10.99

3 Year

$16.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Blackmagic Design CONVBATT/SH Specifications

  • SDI Video Input

    Switchable between SD, HD and 3 Gb/s SDI

  • SDI Video Output

    1x SD/HD-SDI loop output

  • HDMI

    HDMI type A Out

  • Multi Rate Support

    Auto detection of HD or standard definition SDI inputs

  • Software Updates

    Via USB 2.0 high speed. (480 Mb/s)

  • SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601

  • SDI Video Rates

    SDI video connections are switchable between standard definition and high definition

  • SDI Video Sampling

    4:2:2

  • SDI Audio Sampling

    Television standard sample rate of 48 kHz and 24 bit

  • SDI Color Precision

    4:2:2

  • SDI Color Space

    YUV

  • SDI Auto Switching

    Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI

  • HDMI Color Precision

    4:2:2

  • SDI Format Support

    525/29.97 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080p23.98, 1080p24,1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94 and 1080p60

  • HDMI Format Support

    525/29.97 NTSC, 625/25 PAL,720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94 and 1080p60

  • HDMI Color Space

    YUV

  • Copy Protection

    HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content

  • Video Lock Indicator

    LED indicates input video signal lock

  • Internal Software Upgrade

    Via included software updater application

  • Power Supply

    Integrated Lithium-ion Polymer rechargeable battery. 12V-31V DC port for external battery power or use included 12V AC adapter with international socket adapters for all countries. Cable tie point

  • Battery Information

    Over 2 hours battery life. Battery charge indicator with On/Off switch to preserve battery life

  • Power Consumption

    Typically 2.2 W

  • Operational Voltage Range

    12 - 31 Vdc

About BlackMagic Design Battery Converter SDI to HDMI - SKU#1890120

The Blackmagic Design Battery Converter (SDI to HDMI) is amazingly versatile and lets you work on location without external power! Now you can get the highest quality 3 Gb/s SDI conversion everywhere you go. Battery Converter is available in HDMI to SDI model and supports a huge range of video formats up to 1080p60 HD. The converter automatically switches between SD, HD and 3 Gb/s SDI standards and supports embedded SDI and HDMI audio. Battery Converter also features a super tough design that's perfect for outside broadcast and live events!

BlackMagic Design Battery Converter SDI to HDMI - SKU#1890120 Features

  • Protected Recessed Connections: Extending HDMI cable lengths during live production is easy as you can add a Battery Converter SDI to HDMI and use long SDI cables for your cameras
  • Built-in Battery Power: The built-in lithium-ion polymer battery provides more than two hours of charge and, when you need to, you can power or recharge the unit easily from any 12V source. An LED indicates the battery charge level
  • Latest SDI Technology: Battery Converter features the latest 3 Gb/s SDI technology with low jitter so you can use long SDI cable lengths and maintain perfect video quality
  • Super Tough Design: Battery Converter is machined from aircraft grade aluminum and, like Mini Converter Heavy Duty models, features scratch resistant laser etched labeling and non slip rubber feet

Warranty Information

This used item has a FREE 180-day warranty. See details.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • BLACK MAGIC BATTERY CONVERTER SDI TO HDMI
