Sekonic L-558R DualMaster light meter with radio transmitter Specifications

  • Reception Methods

    Incident and reflected light
    Incident Convertible to flat diffuser (lumisphere in down position)
    Reflected 1° Spot lens, metering distance 3.3ft (1m )

  • Receptor Element

    2 Silicon photo diodes (incident and reflected)

  • Measuring Modes

    Ambient light
    Aperture priority metering
    Shutter speed priority metering
    EV metering value
    Flash
    With synch cord (cumulative, non-cumulative)
    Without synch cord (cumulative, non-cumulative)
    With optional radio triggering (cumulative, non-cumulative)

  • Measuring Range (ISO 100)

    Ambient
    Incident light: EV(-) 2 to EV22.9
    Reflected light: EV1 to EV24.4
    Flash
    Incident light: f/0.5 to 161.2
    Reflected light: f/2.0 to 161.2 (approx. f/175 - with 1° spot viewfinder)

  • Repeatability

    +/-0.1EV or less

  • Display Readout

    Digital LCD plus LCD analog

  • ISO Range

    ISO 3 to ISO 8000 (1/3 steps)

  • F-Stop Display Range

    f/0.5 to 161.2 (full, 1/2 or 1/3 steps)
    Analog display F-Scale: f/1.0 to f/128 (in 1/2 steps)

  • Exposure value (EV) Range

    EV(-) 9.9 to EV46.6 (in 1/10 steps)

  • Shutter Speed - Ambient

    30 minutes to 1/8000 second (full, 1/2 or 1/3 steps) Plus: 1/200, 1/400

  • Shutter Speed - Flash

    30 minutes to 1/1000 second (full, 1/2 or 1/3 steps) Plus: 1/75, 1/80, 1/90 1/100, 1/200, and 1/400

  • Cine Speeds

    2, 3, 4, 6, 8, 12, 16, 18, 24, 25, 30, 32, 36, 40, 48, 50, 60, 64, 72, 96, 120, 128, 150, 200, 240, 256, 300, 360 (fps at a 180° shutter angle)

  • Memory Function

    9 readings on analog scale (f/stop and shutter speed) with memory recall and clear feature

  • Flash analyzing function

    Percentage of flash in total exposure from 0 to 100% in 10% increments

  • Brightness Difference Function

    +/-9.9EV (in 1/10 steps) Flash or ambient light evaluation (standard value vs. new measurement)

  • Multiple Flash

    Unlimited flash readings (Only last digit is displayed when more than ten flash exposures are measured.)

  • Power

    3.0Vx1 (CR123A lithium battery)

  • Dimensions

    3.5W x 6.7H x 1.9D" (90W x 170H x 48D mm)

  • Weight

    9.5 oz. (268g)

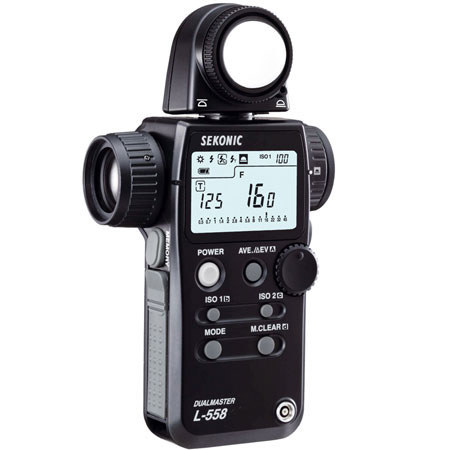

About Sekonic L-558R DualMaster light meter with radio transmitter

FEATURED REVIEWS

All you can wish for in a Lightmeter

By MICHAEL O.

I cannot think of anything missing in this product. For me most important was: - Accuracy - Reflected and Incident metering - Spot Meter - Pocket Wizard - Display of Ambient/Flash balance Gives me all of this.

The Sekonic L-558 DualMaster is the first multi-function light meter to offer a 1° spot meter that measures reflected flash output down to an amazing f/2.0 (ISO100). Its parallax-free lens eliminates erroneous close-up photography light readings. A digital readout through the spot viewfinder displays all-important exposure information. An internal EL (Electro-Luminescent) digital panel displays data in all lightingconditions. As you would expect, the L-558 also includes a built-in retractable Lumisphere (incident dome) for full or narrow angle measurements.

The L-558 DualMaster's flexible design accommodates changing shooting situations. That's because it's a multi-function meter. With aturn of a knob the L-558 changes from an incident meter to a reflective spot meter for both ambient and flash measurements, all in one rugged, compact, all-weather housing. Selecting aperture or shutter priority modes or EV is as easy as turning the Jog wheel. Simultaneous evaluation of ambient and flash is displayed in three convenient ways. An easy-to-read illuminated LCD panel, directly displays in full, 1/2 or 1/3-stop increments to match film or digital cameras. Unique features such as meter calibration, exposure compensation and CINE settings offer the flexibility that today's photographer's require.

PLUS - The Sekonic L-558 DualMaster incorporates the world's first optional internal Digital Radio Transmitter Module. Compatible with allPocketWizard Digital Radios, it provides wireless triggering and measuring of flash units and can even trigger cameras wirelessly. New, easy-to-use Selective Quad-Triggering control offers quick selection of which flash unit to trigger and measures each independently with a touch of a key.
•Spot with Digital Display The L-558 DUALMASTER features a rectangular 1° parallax-free spot viewfinder. In dim or bright light situations, the L-558's spot viewfinder displays f-stops, shutter speeds and more. The built-in spot meter measures both reflected ambient, flash or combined lighting. The optical finder also features an eyepiece with an adjustable diopter.
• Optional Plug-in Radio Transmitter Module Electronic flash units and/or cameras can be triggered wirelessly with the optional plug-in digital radio Transmitter module (compatible with all PocketWizard Digital Radios).Simultaneous triggering and measuring of flash units up to 100 feet away is possible. With its new easy-to-use Selective Quad-Triggering control (4 zone lighting control), the L-558 offers quick selection of which flash unit to trigger and measure independently with a touch of a key. Now you can individually measure several flash units wirelessly by the touch of the meter's measuring button, without walking over to each light and and turning it on or off.

Sekonic L-558R DualMaster light meter with radio transmitter Features

  • Memory Mode
    Up to nine readings can be memorized in incident or spot metering modes independently in both Aperture and Shutter Priority Modes. The memory function of the L-558 provides the photographer with an effective way of retaining and analyzing shadow, midtone and highlight exposure readings.
  • Full, 1/2 or 1/3-step Selectable Readings
    Both shutter speeds and apertures can be displayed in either full, 1/2 or 1/3-step increments to match your film or digital camera; selecting these increments is quick and easy with custom software menu settings.
  • Exposure, Calibration and Filter Compensation
    Independent incident & reflected exposure compensation of up to +/-9.9 EV can be easily set for custom film exposure corrections or for bellows extension factors. With the calibration compensation setting of +/-1.0 EV. There is even a filter compensation setting of +/-5.0 EV
  • Dual ISO Settings
    The L-558 offers the flexibility of taking a single measurement and displaying the f-stop and shutter speed for two different ISO film speeds, such as negativefilm and Polaroid proofing film.
  • Full-Featured Flash Measurements
    1. Cord Flash Mode
    2. Cordless Flash Mode
    3. Unlimited Multiple Flash Mode
    4. Radio Triggering Mode
  • All Weather Design
    All buttons, switches and compartments are sealed and the meter housing has beenconstructed with durable, rugged conditions in mind.
