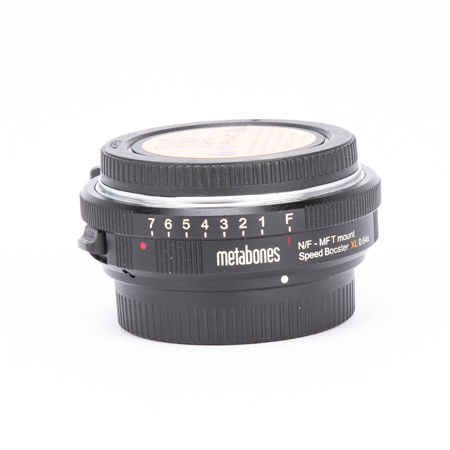

Used Metabones Speed Booster XL 0.64x Adapter for Nikon F and G Mount Lenses to Select Micro Four Thirds-Mount Cameras

Speed Booster XL 0.64x
A new Micro-4/3 mount Speed Booster adapter designed exclusively for the Panasonic GH4 and other selected Micro Four Thirds cameras (refer to the below camera compatbility table), with a magnification of 0.64x. The Speed Booster XL 0.64x uses an advanced 6-element optical design to achieve extraordinary optical performance at apertures up to an incredible f/0.80, a new record for Micro Four Thirds format. The new Speed Booster XL 0.64x reduces the full-frame crop factor of the Panasonic GH4 from 2.0x to 1.28x, thus effectively transforming these cameras into APS-H format.

When the GH4 is used in Cinema 4k video mode the horizontal full frame crop factor is reduced from 2.34x to 1.50x, thus effectively transforming the GH4 into a super-35 format 4k cine camera. In addition, the speed of any attached lens is increased by 11/3 stops, with a maximum output aperture of f/0.80 when an f/1.2 lens is used. For example, a 50mm f/1.2 becomes a 32mm f/0.80, which is the fastest aperture available for full size Micro Four Thirds format.

• Industry's best aperture ring covers a 8-stop range, clearly indicating actual number of f-stops. No more guesswork! (Patent pending)
• Compatible to both Nikkor G lens & F lens (include non-AI & AI lens mounts)
• Increase maximum aperture by 1 1/3 stops
• Increase MTF
• Makes lens 0.64x wider
• Click-less manual G aperture ring
• Support Panasonic GH4, GH3, G3, G5, G6, G10, GF3, GF5, GF6, GX1, Olympus E-PL7, Blackmagic Cinema Camera with Micro Four Thirds mount and Blackmagic Pocket Cinema Camera
• Optics designed by Caldwell Photographic in the USA (patent pending)
• The tripod foot is detachable and compatible with Arca Swiss, Markins, Photo Clam ball heads
• Tips: Before mounting your lens to the adaptor, please make sure that the f-stop of aperture ring on the adaptor is turned to "7" (i.e. mounting your lens to the adaptor while only the aperture ring in the adaptor is full closed.).

Compatibility
The Speed Booster XL 0.64x is similar to the Blackmagic-specific 0.64x BMCC Speed Booster (MB_SPNFG-BMCC-BM1), but has been completely re-designed to meet the following requirements:
• The working distance has increased by 1mm to permit use on the Panasonic GH4 and a number of other Micro Four Thirds cameras without touching the flexible outer cover of the camera's shutter mechanism
• The optics are optimized for a standard Micro Four Thirds filter stack thickness of 4mm rather than the 2.4mm found in Blackmagic cameras
• The image circle diameter has been increased to 21.63mm so that the full 17.3mm x 13mm Four Thirds format is covered. This has been achieved while maintaining unusually high image quality over the 17.4mm image circle used by the Panasonic GH4 in its Cinema 4k video mode

Although the Speed Booster XL 0.64x has extra clearance compared to the 0.64x BMCC Speed Booster, there are still a number of Micro Four Thirds cameras that are not supported due to mechanical clearance issues. This is summarized in the table below, which is color-coded so that Green means the camera is supported and Red means the camera is not supported.

Note that many of the Red-coded cameras actually do function, but there is a minor interference with the protective shutter cover. Although slight contact with the shutter cover appears to have no effect on the functioning or cosmetics of either the camera or the Speed Booster they cannot support these combinations due to possible risk of damage.

List of incompatible lenses
• Nikkor 2.1cm f4
• 20/2.8 AI-S

Why Metabones
Since its inception, Metabones has been designing and manufacturing lens adapters recognized among professionals and enthusiasts as leaders in design and workmanship.

Contrary to the popular trend of other factories using an aluminum ring painted black on the camera-body-side, they instead take no short-cut but use precision-machined brass with chromium plating on both the camera-body and the lens sides of their adapters, in order to ensure smooth mounting, great appearance and durability. The lens side of the adapter features a strong leaf-spring structure, strengthening the adapter-lens connection and ensuring tightness of the lens in order to reduce wear and prevent focus errors and optical alignment issues from appearing.

Metabones uses matte-black treatment to keep internal reflection to a minimum in order to maintain the maximum optical quality possible with the lens. All Metabones Adapters follow this tradition of uncompromising precision, robust build quality and outstanding finish. Metabones new Smart Adapter series of products add industry-leading electronic interfacing technology from Canada, with true electronic control of the lens' aperture directly from the camera body.

• Both camera-side and lens-side of the adapter are made of brass, precision-machined and plated with chromium
• Satin surface finish - just like your OEM lens and camera mounts
• Precise fit and solid connection - lens has no play, gap or wiggling when mounted on adapter and no adjustments are required to fit your lens
• Designed to reach infinity focus while maintaining the correct registration distance required to maintain optical quality of CRC lenses or lenses with floating elements

Metabones Smart Adapter series adapters have the following additional features
• True electronic integration of aperture diaphragm - let camera automatically choose aperture in P or S exposure modes or dial in yourself on the camera body in A or M modes
• EXIF data such as lens identification, focal length and aperture
