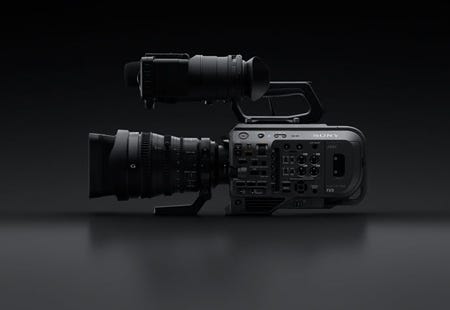

Used Sony PXW-FX9 XDCAM 6K Full Frame Camera System (1497 Hours)

Item Note: Missing USB Cable

SKU: US1955548 MFR: PXW-FX9V
Earn VIP Reward Points

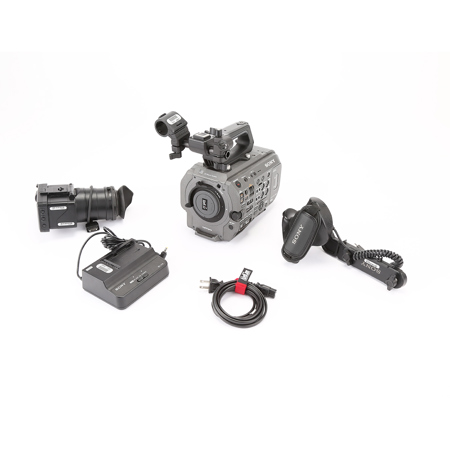

What`s in the box:

  • PXW-FX9 Camera Body
  • BP-U35 Battery
  • BC-U1A Battery Charger
  • AC Adapter
  • Power Cord
  • Body Cap
  • Viewfinder
  • Eyepiece
  • Grip Remote Control ** Item Note: Missing USB Cable **

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$259.99

3 Year

$409.99

4 Year

$552.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2022-10-28T09:16:32

Rated 5 out of 5

So nice, I bought it twice

A great step up from the Fs7. Cleaner images, less noise. Full Frame is a fantastic option when needed. Auto focus with native E-mount lenses is a neat perk. Variable ND is silent and smoothe. I use it every day!

Thomas T.

2022-03-20T08:31:56

Rated 5 out of 5

The standard in TV docs and reality

Love the dual ISO 6k FF and ND variable

Felix M.

2022-01-11T07:14:47

Rated 5 out of 5

Administrator

Great cameras work perfectly with LED screen

ANDREW H.

2021-07-23T10:22:04

Rated 5 out of 5

Amazing

Amazing everything!

Juan C.

2020-12-02T08:06:22

Rated 5 out of 5

Love it!

Love the weight, feel, and ergonomics of this camera system.

Jonah T.

2020-08-13T08:09:56

Rated 4 out of 5

Best documentary camera out there at the moment.

I bought this as an u[grade to my FS7 package....and thats exactly what it is. Almost every facet of the camera is slightly better. The full frame sensor, much more advanced graduated ND system and accessibility to audio and monitoring dials are particularly significant improvements. The only CONS I have found so far are the increased power consumptions in comparison to the FS7, the almost identical slightly fragile viewfinder design and the shotgun mic holder which I replaced with something better immediately. Overall though, maybe the best run'n'gun camera out there at the moment.

Dominic G.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Sony PXW-FX9 Specifications

General

General

Jump to...
  • Power Requirements

    DC 19.5V

  • Power Consumption

    Approx. 35.2 W (while recording XAVC-I QFHD 59.94p, SELP28135G Lens, Viewfinder ON, not using external device)

  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    -4 Degree F to +140 Degree F (-20 Degree C to +60 Degree C)

  • Battery Operating Time

    Approx. 54 min. with BP-U35 battery
    (while recording XAVC-I QFHD 59.94p, SELP28135G Lens, Viewfinder ON, not using external device)

    Approx. 108 min. with BP-U70 battery
    (while recording XAVC-I QFHD 59.94p, SELP28135G Lens, Viewfinder ON, not using external device)

  • Weight

    Approx. 4.41 lb (body only)
    Approx. 10.58 lb (with Viewfinder, Eyepiece, Grip Remote Control, BP-U35 battery, SELP28135G LENS, an XQD memory card, handle, mic holder)

  • Dimensions (W x H x D)

    5.75 x 5.61 x 9.02" (14.6 x 14.2 x 22.9cm) (body without protrusions)

Recording

Jump to...
  • Recording Format (Video) [XAVC Intra]

    XAVC-I QFHD 59.94p mode: VBR, MAX bit rate 600 MBps, MPEG-4 AVC/H.264
    XAVC-I QFHD 50p mode: VBR, MAX bit rate 500 MBps, MPEG-4 AVC/H.264
    XAVC-I QFHD 29.97p mode: VBR, MAX bit rate 300 MBps, MPEG-4 AVC/H.264
    XAVC-I QFHD 25p mode: VBR, MAX bit rate 250 MBps, MPEG-4 AVC/H.264

  • Recording Format (Video) [XAVC Intra] (C

    XAVC-I QFHD 23.98p mode: VBR, MAX bit rate 240 MBps, MPEG-4 AVC/H.264
    XAVC-I HD 59.94p mode: CBG, MAX bit rate 222 MBps, MPEG-4 AVC/H.264
    XAVC-I HD 50p mode: CBG, MAX bit rate 223 MBps, MPEG-4 AVC/H.264
    XAVC-I HD 59.94i/29.97p mode: CBG, MAX bit rate 111 MBps, MPEG-4 AVC/H.264
    XAVC-I HD 50i/25p mode: CBG, MAX bit rate 112MBps, MPEG-4 AVC/H.264
    XAVC-I HD 23.98p mode: CBG, MAX bit rate 89MBps, MPEG-4 AVC/H.264

  • Recording Format (Video) [XAVC Long]

    XAVC-L QFHD 29.97p/25p/23.98p mode: VBR, MAX bit rate 100 MBps, MPEG-4 H.264/AVC
    XAVC-L QFHD 59.94p/50p mode: VBR, MAX bit rate 150 MBps, MPEG-4 H.264/AVC
    XAVC-L HD 59.94i/29.97p/50i/25p/23.98p/59.94p/50p mode: VBR, MAX bit rate 50 MBps, MPEG-4 H.264/AVC
    XAVC-L HD 59.94i/29.97p/50i/25p/23.98p/59.94p/50p mode: VBR, MAX bit rate 35 MBps, MPEG-4 H.264/AVC
    XAVC-L HD 59.94i/50i mode: VBR, MAX bit rate 25 MBps, MPEG-4 H.264/AVC

  • Recording Format (Video) MPEG-2 Long GOP

    MPEG2 HD422 mode: CBR, MAX bit rate 50 MBps, MPEG-2 422P@HL

  • Recording Format (Audio)

    LPCM 24 bits, 48 kHz, 4 channels

  • Recording Frame Rate [XAVC Intra]

    XAVC-I QFHD mode: 3840 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P
    XAVC-I HD mode: 1920 x 1080/59.94P, 59.94i, 50P, 50i, 29.97P, 23.98P, 25P

    [XAVC Long]
    XAVC-L QFHD mode: 3840 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P
    XAVC-L HD 50 mode: 1920 x 1080, 1280 x 720/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P
    XAVC-L HD 35 mode: 1920 x 1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P
    XAVC-L HD 25 mode: 1920 x 1080/59.94i, 50

  • Recording Frame Rate [XAVC Intra] (Contd

    [MPEG-2 Long GOP]
    MPEG HD422 mode: 1920 x 1080/59.94i, 50i, 29.97P, 23.98P, 25Pi

  • Recording/playback Time [XAVC Intra]

    XAVC-I QFHD 59.94p
    When using QD-G128A (128 GB): Approx. 22 minutes
    When using QD-G64A (64 GB): Approx. 10 minutes

    XAVC-I QFHD 50p
    When using QD-G128A (128 GB): Approx. 26 minutes
    When using QD-G64A (64 GB): Approx. 13 minutes

    XAVC-I QFHD 29.97p
    When using QD-G128A (128 GB): Approx. 43 minutes
    When using QD-G64A (64 GB): Approx. 21 minutes

  • Recording/playback Time [XAVC Intra] (Co

    XAVC-I QFHD 25p
    When using QD-G128A (128 GB): Approx. 52 minutes
    When using QD-G64A (64 GB): Approx. 25 minutes

    XAVC-I QFHD 23.98p
    When using QD-G128A (128 GB): Approx. 54 minutes
    When using QD-G64A (64 GB): Approx. 26 Minutes
    XAVC-I QFHD 23.98p
    When using QD-G128A (128 GB): Approx. 54 minutes
    When using QD-G64A (64 GB): Approx. 26 Minutes

  • Recording/playback Time [XAVC Intra] (Co

    XAVC-I QFHD 25p
    When using QD-G128A (128 GB): Approx. 52 minutes
    When using QD-G64A (64 GB): Approx. 25 minutes

    XAVC-I QFHD 23.98p
    When using QD-G128A (128 GB): Approx. 54 minutes
    When using QD-G64A (64 GB): Approx. 26 Minutes
    XAVC-I QFHD 23.98p
    When using QD-G128A (128 GB): Approx. 54 minutes
    When using QD-G64A (64 GB): Approx. 26 Minutes

  • Recording/playback Time [XAVC Intra] (Co

    XAVC-I QFHD 25p
    When using QD-G128A (128 GB): Approx. 52 minutes
    When using QD-G64A (64 GB): Approx. 25 minutes

    XAVC-I QFHD 23.98p
    When using QD-G128A (128 GB): Approx. 54 minutes
    When using QD-G64A (64 GB): Approx. 26 Minutes
    XAVC-I QFHD 23.98p
    When using QD-G128A (128 GB): Approx. 54 minutes
    When using QD-G64A (64 GB): Approx. 26 Minutes

  • Recording/playback Time [XAVC Long]

    XAVC-L QFHD 29.97p/25p/23.98p
    When using QD-G128A (128 GB): Approx. 125 minutes
    When using QD-G64A (64 GB): Approx. 62 minutes

    XAVC-L QFHD 59.94p/50p
    When using QD-G128A (128 GB): Approx. 86 minutes
    When using QD-G64A (64 GB): Approx. 42 minutes

    XAVC-L HD 50 59.94i/29.97p/50i/25p/23.98p/59.94p/50p
    When using QD-G128A (128 GB): Approx. 225 minutes
    When using QD-G64A (64 GB): Approx. 110 Minutes

  • Recording/playback Time [XAVC Long] (Con

    XAVC-L HD 35 59.94i/29.97p/50i/25p/23.98p/59.94p/50p
    When using QD-G128A (128 GB): Approx. 305 minutes
    When using QD-G64A (64 GB): Approx. 150 minutes

    XAVC-L HD 25 59.94i/50i
    When using QD-G128A (128 GB): Approx. 410 minutes
    When using QD-G64A (64 GB) approx. 200 minutes

  • Recording/playback Time[MPEG-2 Long GOP]

    MPEG HD422 59.94i, 50i, 29.97P, 23.98P, 25P
    When using QD-G128A (128 GB): Approx. 220 minutes
    When using QD-G64A (64 GB): Approx. 105 minutes

  • Recording Format (Proxy Audio)

    XAVC Proxy: AAC-LC, 128 kbps, 2 channels

  • Recording Format (Proxy Video)

    XAVC Proxy: AVC/H.264 Main Profile 4:2:0 Long GOP, VBR
    1920 x 1080, 9 MBps
    1280 x 720, 9 MBps
    1280 x 720, 6 MBps
    640 x 360, 3 MBps

  • Lens

    MountE-mount

Camera Section

Jump to...
  • Imaging Device (Type)

    1.38 in full-frame, single-chip CMOS image sensor

  • Imaging Device (Pixel Count)

    20.5 M pixels (total)

  • Built-in Optical Filters

    Clear, linear variable ND (1/4ND to 1/128ND)

  • ISO Sensitivity

    ISO 800/4000 (Cine EI mode, D55 light source)

  • S/N Ratio

    57 dB (Y) (typical)

  • Shutter Speed

    64F to 1/8000 sec

  • Slow and Quick Motion Function

    FF 6K mode:
    XAVC-I/L
    3840 x 2160, 1920 x 1080
    1 to 30 frames (29.97/25/23.98)

    S35 4K mode:
    XAVC-I/L
    3840 x 2160, 1920 x 1080
    1 to 60 frames (59.94p, 50p, 29.97/25/23.98)

    FF 2K, S35 2K mode:
    XAVC-I/L
    1920 x 1080
    1 to 60, 100, 120 frames (59.94p, 50p, 29.97/25/23.98)

  • White Balance

    Preset, Memory A, Memory B (2000K-15000K)/ATW

  • Gain

    -3 to 18 dB (every 1 dB), AGC

  • Gamma Curve

    S-Cinetone, STD1, STD2, STD3, STD4, STD5, STD6, HG1, HG2, HG3, HG4, HG7, HG8, S-Log3

  • Latitude

    15+ stop

Input/Output

Jump to...
  • Audio Input

    XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable
    Mic reference: -30 to -80 dBu

  • SDI Output

    SDI OUT1: BNC, 12G-SDI, 3G-SDI (Level A/B), HD-SDI
    SDI OUT2: BNC, 3G-SDI (Level A/B), HD-SDI

  • USB

    USB device, micro-B (x1)

  • Headphone Output

    Stereo mini jack (x1) -16 dBu 16 Ohm

  • Speaker Output

    Monaural

  • DC Input

    DC jack

  • Remote

    Stereo mini-minijack (2.5 mm)

  • HDMI Output

    Type A (x1)

Monitoring

Jump to...
  • LCD

    3.46" (3.5 type) approx. 2.76 M dots

Built-in Microphone

Jump to...
  • Built-in Microphone

    Omni-directional monaural electret condenser microphone

  • Type

    XQD card slot (x2)
    SD/MS card slot (x1) for saving configuration data
    SD card slot also can be used for proxy video recording

Wi-Fi/NFC

Jump to...
  • Supported Format

    IEEE 802.11 a/b/g/n/ac

  • Frequency Band

    2.4 GHz bandwidth
    5.2/5.3/5.6/5.8 GHz bandwidth
    Depending on country/regional regulation and only on PXW-FX9V and PXW-FX9VK.

  • Security

    WEP/WPA-PSK/WPA2-PSK

  • NFC

    NFC Forum Type 3 Tag compliant

Related Articles & Videos

A Complete Guide to Netflix Approved Cameras 2024

A Complete Guide to Netflix Approved Cameras 2024

Are you looking to rent or purchase a camera for film? This article includes all the Netflix approved cameras, the best for film. Pick one!
Read more
IBC 2019: Sony Announces the PXW-FX9 6K Full-Frame Camcorder & FE C 16-35mm T3.1 G Wide Angle Zoom Cinema Lens

IBC 2019: Sony Announces the PXW-FX9 6K Full-Frame Camcorder & FE C 16-35mm T3.1 G Wide Angle Zoom Cinema Lens

Sony is kicking off the 2019 International Broadcasting Convention (IBC) with exciting new additions to the brand's full-frame cinema lineup. Today, the company has announced the new Sony PXW-FX9 and the FE C 16-35mm T3.1 G wide angle zoom cin...
Read more

88 Accessories for Sony PXW-FX9 XDCAM 6K Full Frame Camera System (1497 Hours)

  • All Accessories (88)
  • Memory & Storage (2)Required Item
  • Lenses (6)Required Item
  • Extension Head (1)Required Item
  • Batteries & Power Supply (18)
  • Cages & Brackets (2)
  • Microphones & Audio (7)Required Item
  • Monitor & Recorder (2)Required Item
  • Viewfinders (1)
  • Media Read/Write Devices (1)
  • Remotes & Accessories (2)
  • Bags & Cases (9)
  • Supports & Rigs (9)
  • Flash & Lighting (18)
  • Lens Adapters & Converters (3)
  • Quick Release Systems & Plates (2)
  • Tripods & Monopods (4)
  • Rain Covers (1)

About Sony PXW-FX9 XDCAM 6K Full Frame Camera System - (1497 Hours) SKU#1955548

FEATURED REVIEWS

So nice, I bought it twice

By Thomas T.

A great step up from the Fs7. Cleaner images, less noise. Full Frame is a fantastic option when needed. Auto focus with native E-mount lenses is a neat perk. Variable ND is silent and smoothe. I use it every day!

The standard in TV docs and reality

By Felix M.

Love the dual ISO 6k FF and ND variable

4K capturing with oversampled 6K Full-frame Exmor R sensor

The camera’s full-frame 6K sensor provides superb recording in DCI 4K, Ultra HD and HD resolutions. Powerful image processing with debayering and down-sampling ensures image quality beyond the limits of conventional Super 35mm sensors.The backilluminated CMOS image sensor also uses Sony’s Exmor R technology for improved sensitivity and noise reduction.

4K capturing with oversampled 6K Full-frame Exmor R® sensor

15+ stops dynamic range


FX9 offers an exceptional 15+ stops of dynamic range - beyond the normal range of human perception - allowing for unprecedented creative freedom in color grading and post. Camera operators can concentrate on framing the scene they want while relying upon the FX9 to capture every nuance and detail using either 4K 4:2:2 10-bit internal recording or 16-bit RAW external recording.

15+ stops dynamic range

Dual Base ISO of 800/4000

FX9 features a base sensitivity of ISO 800, providing the optimal dynamic range for typical documentary applications such as shooting outside or in brightly lit interiors. A secondary high base sensitivity of ISO 4000 excels in low light conditions such as early morning and evening shoots while maintaining superb image quality. ISO 4000 is also ideal whenever you’re using slow lenses

Dual Base ISO of 800/4000

Cinematic color science out of the box with S-Cinetone

S-Cinetone is the default look of FX9 that’s tuned to meet the requirements of today’s content creators with rich mid-range colors, alluring facial tones and a softer tonal look – developed with the same expertise as Sony’s world-leading VENICE digital cinematography camera. S-Cinetone means that straight out of the camera your content looks fresh and vivid.

Cinematic color science out of the box with SCinetone

Fast and accurate “Fast Hybrid AF” with Face Detection and custom settings

Effortlessly track fast moving subjects with pin-sharp focus, even when using wide lens aperture settings to maintain a shallow depth of field with the camera’s full-frame sensor. Developed by Sony’s α camera engineers, enhanced Fast Hybrid AF combines phase detection AF for fast, accurate subject tracking with contrast AF for exceptional focus accuracy. In addition, Face Detection intelligently recognizes and locks on to human faces.
The dedicated 561-point phase detection AF sensor covers approximately 94% of the whole image area width and 96% of height, allowing consistently accurate, responsive AF tracking, even with fastmoving subjects.

Fast and accurate “Fast Hybrid AF” with Face Detection and custom settings

FX9’s comprehensive autofocus settings provide the creative flexibility to integrate with any project. 7-level AF transition speeds from Fast - switching between subjects as quickly as possible – to Slow, where speed is reduced to fit a more measured shooting style, such as a historical TV drama. 5-level AF subject shift sensitivity ranges from Locked-on – ignoring other moving subjects in the frame – to Responsive that switches focus from one subject to another.

ideal for snapping between race cars as they speed by.

Multi-Interface (MI) Shoe


Sony’s flexible Multi-Interface (MI) Shoe provides power, signal connections and coordinated on/off switching with compatible Sony accessories. For example, you can connect and control Sony UWP-D wireless microphone systems (optional).

Multi-Interface (MI) Shoe

Compatible with the new XDCA-FX9 extension unit

Further extend the capabilities of the FX9 with the optional XDCA-FX9 extension unit that optimizes camera weight distribution and ergonomics for comfortable shoulder-style shooting – ideal for ENG (Electronic News Gathering) and documentary applications. The extension unit also adds advanced networking for streaming/file transfers and a slot-in for a wireless audio receiver.

Compatible with the new XDCA-FX9 extension unit

Variety of outputs including 12GSDI/3G-SDI, HDMI and TC in/out, GENLOCK


FX9 is equipped with various outputs including a 12G-SDI and a HDMI for 4K output. Also, it has a 3G-SDI for HD output to expand its monitoring flexibility. For multi-camera operation, GENLOCK and TC In/Out terminals are available.

Variety of outputs including 12GSDI/3G-SDI, HDMI and TC in/out, GENLOCK

ALC: IBC 2019: Sony Announces the PXW-FX9 6K Full-Frame Camcorder & FE C 16-35mm T3.1 G Wide Angle Zoom Cinema Lens

Sony is kicking off the 2019 International Broadcasting Convention (IBC) with exciting new additions to the brand's full-frame cinema lineup. Today, the company has announced the new Sony PXW-FX9 and the FE C 16-35mm T3.1 G wide angle zoom cinema lens, unleashing the powers of your full-frame creativity.

LEARN MORE
Variety of outputs including 12GSDI/3G-SDI, HDMI and TC in/out, GENLOCK

Warranty Information

This used item has a FREE 180-day warranty. See details.

What's in the box:

  • PXW-FX9 Camera Body
  • BP-U35 Battery
  • BC-U1A Battery Charger
  • AC Adapter
  • Power Cord
  • Body Cap
  • Viewfinder
  • Eyepiece
  • Grip Remote Control
  • Item Note: Missing USB Cable
