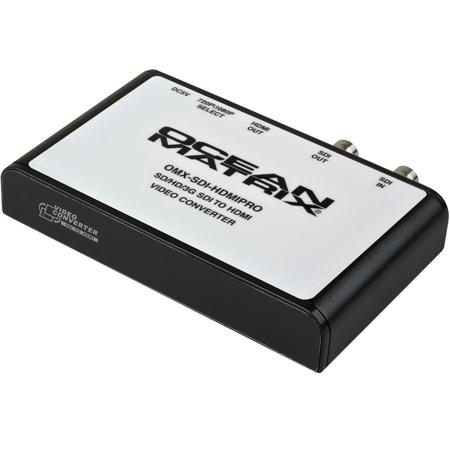

Ocean Matrix 3G HD-SDI to HDMI PRO Converter - SKU#953924

Picture does not represent the actual item
See what's in the box

See all Ocean Matrix items

Used Ocean Matrix 3G HD-SDI to HDMI PRO Converter

SKU: US953924

This item is no longer available.

Recommended Items

Ocean Matrix OMX-HDMI-CX: Picture 1 regular
Ocean Matrix HDMI Over Coax Transmitter
$265.00$253.00
Ocean Matrix OMX-HDMI-2-IP-T: Picture 1 regular
Ocean Matrix HDMI Over IP Transmitter
$85.00
Lynx Technik AG CHD 1812: Picture 1 regular
Lynx Technik AG yellobrik CHD 1812 HDMI to 3Gbit SDI Converter
$992.75
Decimator MD-HX: Picture 1 regular
Decimator MD-HX HDMI & SDI Cross Converter with Scaling & Frame Rate Conversion
$325.00
AJA RovoRx-SDI: Picture 1 regular
AJA RovoRx-SDI UltraHD/HD HDBaseT Receiver to 6G/3G-SDI and HDMI Frame Sync
$1,245.00
Decimator MD-LX: Picture 1 regular
Decimator MD-LX HDMI/SDI Bi-Directional Converter
$110.00
Z CAM IPMAN Gemini Pro: Picture 1 regular
Z CAM IPMAN Gemini Pro Dual HDMI to USB Converter
$49.90
Z CAM IPMAN Gemini: Picture 1 regular
Z CAM IPMAN Gemini HDMI to USB Converter
$59.90
Hall Research GEM-EX-S: Picture 1 regular
Hall Research GEM-EX-S Dual Head 4KHDMI+USB+Audio+RS-232 Senderw/2-Port Splitter
$1,644.50
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Ocean Matrix OMX-SDI-HDMIPRO Specifications

  • SDI Formats Supported

    SD-SDI, HD-SDI, 3G-SDI

  • Inputs

    1 x SDI

  • Outputs

    1 x HDMI
    1 x SDI loop-through

  • Audio

    Embedded audio, Synchronized output audio

  • Impedance

    75

  • Power Consumption

    5W

  • Power

    DC 5-30V

  • Input Resolutions

    SDI: 480i/60Hz, 576i/50Hz, 720P/50Hz/60Hz, 1080i/50Hz/60Hz, 1080P/24/25/30/50/60Hz

  • Output Resolutions

    SDI: 480i/60Hz, 576i/50Hz, 720P/50Hz/60Hz, 1080i/50Hz/60Hz, 1080P/24/25/30/50/60Hz
    HDMI: 720P/60Hz, 1080P/60Hz

  • Power Adapter

    12 VDC, 1 A (applicable for 5 to 36 VDC)

  • Operating Temperature

    32 to 140 deg.F (0 to 60 deg. C)

  • Dimensions

    5.1 x 7.7 x 0.9" / 129.54 x 195.58 x 22.86mm

  • Weight

    0.59lbs / 0.27kg

About Ocean Matrix 3G HD-SDI to HDMI PRO Converter - SKU#953924

An upgraded version of the popular OMX-SDI-HDMI from Ocean Matrix. Still a low cost 3G-SDI/HD-SDI/SD-SDI to HDMI Converter but with a looping SDI output as well as a scaling switch to up convert to 720P or 1080P on output making it compatible with more devices, Digital 3D comb filter, OSD display of input/output resolutions and if that's not enough it is a line amplifier as well, pushing SDI signals 328 feet indefinitely when cascaded! Perfect for monitoring broadcast video production signals on HDMI or DVI Display's. Part of the Ocean Matrix CleanLink series, this digital converter delivers a true and reliable signal with no transition loss.

Ocean Matrix 3G HD-SDI to HDMI PRO Converter - SKU#953924 Features

  • Looped SDI output
  • Scaling switch to up convert to 720 or 1080P on output
  • Digital 3D comb filter
  • OSD display of input/output resolutions
  • Auto detect resolution of HD-SDI, SD-SDI and 3G-SDI Input Signal
  • Full HDMI support with embedded audio
  • Synchronized output audio
  • Plug and play

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Ocean Matrix 3G HD-SDI to HDMI PRO Converter
