Picture does not represent the actual item
See what's in the box
This item is no longer available.
Review Summary
1/2.3 type Exmor R CMOS
18.9 megapixels (total), 8.8 megapixels (effective)
Clear, 1/4, 1/16, 1/64
60P: 4 lux (1/30 shutter speed)
50P: 3 lux (1/25 shutter speed)
1/3 to 1/9000 second
1080p:
Frame rate selectable 1, 2, 4, 8, 15, 30, 60 fps in NTSC mode
Frame rate selectable 1, 2, 3, 6, 12, 25, 50 fps in PAL mode
Preset (Outdoor: 5600K), A, B
0, 3, 6, 9, 12, 15, 18, 21, 24, 27 dB, AGC
Selectable
Fixed
20x (optical), servo/manual
4.1 to 82.0 mm
4096 x 2160 (17:9): 30.0 to 600.0 mm
3840 x 2160, 1920 x 1080 (16:9): 31.5 to 630.0 mm
f/1.6 to f/11, auto/manual
Auto/manual focus selectable
Wide-angle: 0.4" (1.0 cm)
Telephoto: 31.5" (80.0 cm)
Shift lens, On/Off selectable
72mm
XAVC (AVC/H.264 High 4:2:2 Intra Profile VBR)
LPCM 8-Channel (2-Channel recording/playback), 24-bit, 48 kHz
4K 59.94p mode: Approx. 10 min
4K 50p mode: Approx. 15 min
4K 29.97p mode: Approx. 20 min
4K 25p mode: Approx. 25 min
4K 23.98p mode: Approx. 30 min
HD 59.94p, 50p mode: Approx. 30 min
HD 29.97p, 25p mode: Approx. 60 min
HD 23.98p mode: Approx. 75 min
2 x XQD (for XAVC)
1 x Memory Stick Duo and SD/SDHC/SDXC (for AVCHD)
1 x Sd/SDHC/SDXC (for utility SD slot)
1 x SD/HD-SDI, BNC
1 x HDMI 1.4, Type A
1 x Composite
2 x 3-pin XLR female, line/mic/mic +48 V selectable
1 x RCA
1 x RCA, in/out selectable
1 x mini-B, mass-storage
1 x Type A, host
1 x 3.5 mm stereo mini jack
Monaural
Omni-direction stereo electret condenser microphone
1 x DC jack
1 x 2.5 mm stereo mini jack
0.45" color LCD, 852 x 480 x 3 RGB (16:9)
3.5" Xtra Fine LCD, 850 x 480 x 3 RGB (16:9)
32 to 105° F (0 to 40° C)
-4 to 140° F (-20 to 60° C)
Approx. 14.9 W (while recording, EVF on)
Approx. 15.2 W (while recording, LCD monitor on)
Battery Pack: 7.2 V
AC Adapter: 12.0 V
Approx. 165 mins with NP-F970 battery (while recording, EVF on, LCD monitor on)
7.4 x 7.6 x 14.3" (18.9 x 19.3 x 36.2 cm)
6.42 lb (2.91 kg)
There was so much gear announced at NAB that it is just shipping out, with a ton of gear that has yet to even ship. 4K video was the main theme with a slew of camera announcements and delivery. This will be remembered as the year of 4K's real arrival...

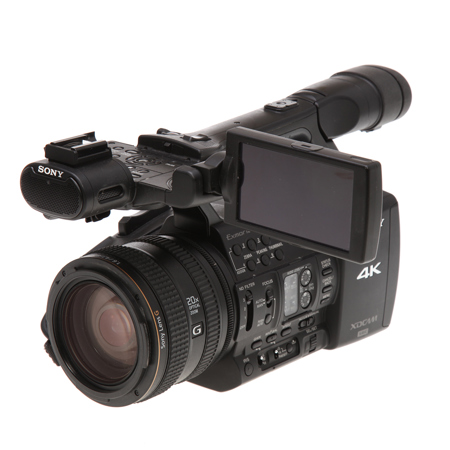

Sony is expanding its line of professional 4K technologies with the new PXW-Z100 4K handheld XDCAM camcorder. The new model broadens professional 4K capabilities to new markets and applications beyond motion picture or high-end TV production including houses of worship, education, corporate, and live events. The camcorder's affordable price gives professionals even greater flexibility and more creative options for acquisition and production in HD, QFHD and 4K (4096x2160).
With a 1/2.3-inch Exmor R CMOS sensor, the camcorder can create stunning 4K content (4096x2160) at 50p or 60p. The PXW-Z100 camcorder is based on the same shooting ergonomics as a conventional handheld professional camcorder, allowing users to record 4K content cost effectively.
The PXW-Z100 camcorder, together with the fixed 4K-compatible high-performance G Lens, weighs less than 7lbs. The PXW-Z100 uses Sony's XAVC recording format first employed in Sony's PMW-F55 CineAlta 4K camera. MPEG-4 AVC/H.264 compression is used for HD (1920x1080), QFHD (3840x2016) and 4K (4096x2160) content. Image sampling is 4:2:2 10-bit, with an intra-frame system that compresses each frame individually at a maximum bit rate of 500 Mbps or 600 Mbps during 4K 50fps or 60fps recording, respectively, and 223 Mbps during HD 50fps or 60fps recording. The XAVC format is ideal for those looking to implement a high-quality, secure and worry-free workflow.
Users can select QFHD (3840x21 60) and HD (1920x1080) resolutions, both of which are compatible with most 4K TV's.
The camcorder provides extremely high sensitivity due to its back-illuminated Exmor R CMOS sensor even during 4K shooting. With more than 8.8 million effective pixels, the 1/2.3-inch sensor captures 4K images at 50p or 60p. The built-in high-performance G Lens offers maximum shooting flexibility, including a wide angle of 30 mm in 4096x2160 mode or 31.5mm in 3840x2160 and 1920x1080 modes and 20x powerful optical zoom (equivalent to 35mm).
The new camcorder uses state-of-the-art XQD solid-state memory cards, a format recently defined by several industry leading companies. XQD uses the ultra-fast PCI Express interface and Sony's unique camera processor to enable stable video recording at 500Mbps or 600Mbps. The PXW-Z100 camcorder features two XQD Memory card slots. Multiple cards can be used in various ways, such as for relay recording. When the first card becomes full, recording continues on the second card without a break.
The HDMI interface on the PXW-Z100 camcorder can output 4K as a 50fps/60fps signal. When the PXW-Z100 is connected to a Sony PVM-x300 4K professional monitor or a 4K-compatible BRAVIA TV, the recorded 4K image can be displayed in 4K 50fps/60fps quality. A future firmware upgrade is planned to provide compatibility with the new HDMI standard (referred to as HDMI 2.0) and enable 4K 50fps/60fps output to a wider range of devices. Other features include a 3G HD-SDI interface that supports output to an SDI of up to HD 60p. It also supports HD output during 4K recording.
The camcorder's paint function enables multiple image parameters to be adjusted including gamma curve, black level, skin tone detail and color. Together with other setting options, parameter settings can be recorded as a camera profile onto a memory card. The recorded camera profile can then be used to set the same parameters in another PXW-Z100 camcorder to match quality and image tones when using a multi-camera setup.
Users can remotely control focus, zoom, aperture settings and record start/stop using the browser function of a smartphone or tablet. Users just need to simply plug the supplied WiFi adaptor into the camcorder to enable the wireless feature.
