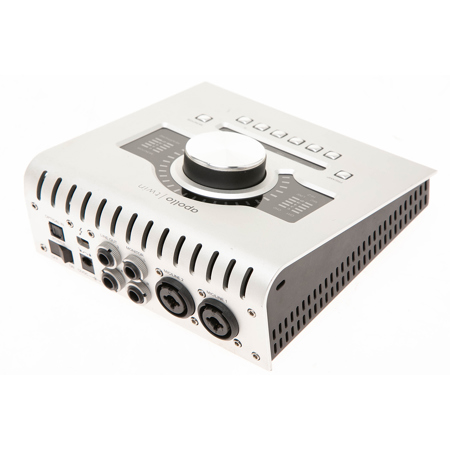

Universal Audio Apollo Twin Duo Audio Interface - SKU#1718311

Picture does not represent the actual item
See what's in the box

See all Universal Audio items

Used Universal Audio Apollo Twin Duo Audio Interface with Real-time UAD2 Processing and Thunderbolt, 20Hz-20kHz Frequency Response

SKU: US1718311

This item is no longer available.

Recommended Items

Universal Audio Apollo Twin X DUO Gen 2: Picture 1 regular
Universal Audio Apollo Twin X DUO Gen 2 Audio Interface w/Essentials+ Plug-Ins
$1,199.00
Universal Audio Apollo Twin X QUAD Gen 2: Picture 1 regular
Universal Audio Apollo Twin X QUAD Gen 2 Audio Interface w/Essentials+ Plug-Ins
$1,499.00
Universal Audio Apollo Twin X DUO Gen 2: Picture 1 regular
Universal Audio Apollo Twin X DUO Gen 2 Audio Interface, Bundle w/Accessory Kit
$1,228.99$1,199.00
Universal Audio Apollo x4 Gen 2: Picture 1 regular
Universal Audio Apollo x4 Gen 2 Audio Interface with Essentials+ Plug-Ins
$1,999.00
Universal Audio Apollo x6: Picture 1 regular
Universal Audio Apollo x6 HE RU Thunderbolt 3 Audio Interface with UAD HEXA Core
$2,874.39$1,999.00
Universal Audio Apollo Solo: Picture 1 regular
Universal Audio Apollo Solo USB HE USB Type-C Audio Interface w/UAD Processing
$499.00
Universal Audio Apollo Solo: Picture 1 regular
Universal Audio Apollo Solo HE Thunderbolt 3 Audio Interface with UAD Processing
$499.00
Universal Audio Apollo Twin X DUO Gen 2: Picture 1 regular
Universal Audio Apollo Twin X DUO Gen 2 Audio Interface, w/Headphone & XLR Cable
$1,528.99$1,499.00
Universal Audio Apollo Twin X QUAD Gen 2: Picture 1 regular
Universal Audio Apollo Twin X QUAD Gen 2 Audio Interface, Bundle w/Accessory Kit
$1,528.99$1,499.00
Universal Audio Apollo: Picture 1 regular
Universal Audio Apollo Twin X Heritage Edition Desktop 10x6 Thunderbolt 3 Audio Interface with Realtime UAD-2 QUAD Core Processing for Mac and Windows
$922.00$839.00
Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2022-06-14T09:30:18

Rated 5 out of 5

Unbelievable price for the quality!!

I purchased this interface from Adorama about a month ago and wanted to test it out before I left a real review. I have to say this was the best purchase for my money thus far. Outstanding condition and I?m more than satisfied with my purchase!!!

KEN T.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Universal Audio Apollo Twin Specifications

  • System Requirements

    Apple Mac computer with available Thunderbolt port
    Operating Systems: Mac OS X 10.8 Mountain Lion or 10.9 Mavericks
    Hard Disk: 2 gigabytes disk space

  • SHARC DSP processors

    2x SHARC DSP processors

  • Microphone Inputs

    2

  • Analog Line Inputs

    2

  • Hi-Z Instrument Inputs

    1

  • Analog Line Outputs

    2 (independent mix buses)

  • Analog Monitor Outputs

    2 (one stereo pair, independent L/R mix buses)

  • Headphone Outputs

    1 stereo pair (independent L/R mix buses)

  • Digital Input Port (TOSLINK optical)

    1 (ADAT or S/PDIF, selectable)

  • Thunderbolt Port

    1 (Thunderbolt 2 compatible)

  • Bit Depth Per Sample

    24

  • Simultaneous A/D conversion

    Two channels

  • Simultaneous D/A conversion

    Six channels

  • Analog Round-Trip Latency

    1.1 milliseconds At 96 kHz sample rate
    1.1 milliseconds At 96 kHz sample rate (with up to four serial UAD Powered Plug-Ins via Console application

  • Minimum Input Level (At Minimum Gain)

    Line Inputs 1 & 2: 18 dBV

  • Line Inputs 1 & 2: Maximum Input Level

    At Maximum Gain: -37 dBV

  • Phantom Power (switchable per input)

    Microphone Inputs 1 & 2: +48V

  • Equivalent Input Noise

    Microphone Inputs 1 & 2: -127 dB

  • Common-Mode Rejection Ratio (CMRR)

    Microphone Inputs 1 & 2: Greater than 70 dB (10' cable)
    Line Inputs 1 & 2: Greater than 60 dB (10' cable)

  • Pad Attenuation (switchable per input)

    Microphone Inputs 1 & 2: 20 dB (variable via Unison preamp model)

  • Microphone Inputs 1&2: Max. Input Level

    At Minimum Gain, with Pad: 23.8 dBV
    At Maximum Gain, with Pad: -31.2 dBV

  • Input Impedance

    Hi-Z Input: 1M Ohms
    Microphone Inputs 1 & 2: 5.4 kOhms (variable via Unison preamp model)
    Line Inputs 1 & 2: 10 kOhms

  • Hi-Z Input: Maximum Input Level

    At Minimum Gain: 10 dBVAt Maximum Gain: -45 dBV

  • Maximum Output Level

    Monitor Outputs 1 & 2: 18 dBV
    Line Outputs 3 & 4: 18 dBV

  • Operating Reference Level

    Monitor Outputs 1 & 2: +14 dBu, +20 dBu (selectable)

  • Jack Type

    Stereo Headphones Output: 1/4" Female TRS Stereo (unbalanced)
    Monitor Outputs 1 & 2: 1/4" Female TRS Balanced
    Line Outputs 3 & 4: 1/4" Female TRS Balanced
    Hi-Z Input: Female 1/4" TS Unbalanced
    Microphone Inputs 1 & 2 (combo mic/line balanced inputs): Female XLR Balanced (pin 2 positive)
    Line Inputs 1 & 2 (combo mic/line balanced inputs): Female 1/4" TRS Balanced

  • Frequency Response

    Stereo Headphones Output: 20Hz-20kHz, +/-0.1 dB
    Monitor Outputs 1 & 2: 20Hz-20kHz, +/-0.1 dB
    Line Outputs 3 & 4: 20Hz-20kHz, +/-0.1 dB
    Hi-Z Input: 20Hz-20kHz, +/-0.1 dB
    Microphone Inputs 1 & 2: 20Hz-20kHz, +/-0.1 dB
    Line Inputs 1 & 2: 20Hz-20kHz, +/-0.1 dB

  • Dynamic Range (A-weighting)

    Stereo Headphones Output: 113 dB
    Monitor Outputs 1 & 2: 115 dB
    Line Outputs 3 & 4: 118 dB
    Hi-Z Input: 117 dB
    Microphone Inputs 1 & 2: 118 dB
    Line Inputs 1 & 2: 117.5 dB

  • Signal-to-Noise Ratio (A-weighting)

    Stereo Headphones Output: 113 dB
    Monitor Outputs 1 & 2: 115 dB
    Line Outputs 3 & 4: 118 dB
    Hi-Z Input: 117 dB
    Microphone Inputs 1 & 2: 118 dB
    Line Inputs 1 & 2: 117.5 dB

  • Channel Separation

    Stereo Headphones Output: Greater than 110 dB
    Monitor Outputs 1 & 2: Greater than 118 dB
    Line Outputs 3 & 4: Greater than 120 dB

  • Total Harmonic Distortion + Noise

    Stereo Headphones Output: -101 dBFS
    Monitor Outputs 1 & 2: -105 dBFS
    Line Outputs 3 & 4: -107 dBFS
    Hi-Z Input: -101 dBFS
    Microphone Inputs 1 & 2: -110 dBFS
    Line Inputs 1 & 2: -108 dBFS

  • Stereo Level Balance

    Stereo Headphones Output: +/-0.11 dB
    Monitor Outputs 1 & 2: +/-0.05 dB
    Line Outputs 3 & 4: +/-0.05 dB
    Line Inputs 1 & 2: +/-0.05 dB

  • Output Impedance

    Stereo Headphones Output: 10 Ohms
    Monitor Outputs 1 & 2: 600 Ohms
    Line Outputs 3 & 4: 600 Ohms

  • Output Gain Range

    Stereo Headphones Output: -INF to 0 dB
    Monitor Outputs 1 & 2: -96 dB to 0 dB
    Microphone Inputs 1 & 2: +10 dB to +65 dB
    Line Inputs 1 & 2: +10 dB to +65 dB

  • Maximum Output Power

    Stereo Headphones Output: 80 milliwatts into 600 Ohms

  • S/PDIF Input Channels

    Two (Stereo L/R)

  • Connector Type

    ADAT: Optical TOSLINK JIS F05 (shared with S/PDIF)
    S/PDIF: Optical TOSLINK JIS F05 (shared with ADAT)

  • Format

    ADAT: Digital Lightpipe with S/MUX
    S/PDIF: IEC958

  • Supported Sample Rates (kHz)

    ADAT: 44.1, 48, 88.2, 96, 172.4, 192
    S/PDIF: 44.1, 48, 88.2, 96
    A/D - D/A Conversion: 44.1, 48, 88.2, 96, 176.4, 192

  • ADAT Input Channels

    At 44.1 kHz, 48 kHz: 1 - 8At 88.2 kHz, 96 kHz: 1 - 4 (S/MUX)At 176.4 kHz, 192 kHz: 1 - 2 (S/MUX)

  • Clock Synchronization Sources

    Internal, S/PDIF, ADAT (digital clock sync source conditional per selected digital input type)

  • Power Supply

    External AC to DC

  • AC Connector Type

    Changeable blades (UL, VDE, UK, SSA, CCC)

  • AC Requirements

    100-240V AC, 50-60Hz

  • DC Connector Type

    Male plug, 2.1 x 5.5mm (0.08 x 0.21"), center positive

  • DC Requirements

    12 VDC, +/-5%

  • Maximum Power Consumption

    12 Watts

  • Operating Temperature Range

    32 deg. to 95 deg. F (0 deg. to 35 deg. C)

  • Storage Temperature Range

    -40 deg. to 176 deg. F (-40 to 80 deg. C)

  • Operating Humidity Range

    20% to 80%

  • Dimensions (W x D x H)

    6.31 x 5.86/6.20 x 2.60" (16.02 x 14.88/15.74 x 6.60cm)

  • Weight

    2.35lbs (1.06kg)

Related Articles & Videos

Unboxing the RME Babyface Pro

Unboxing the RME Babyface Pro

RME generously sent us their newest evolution of pro audio interfaces: The Babyface Pro <...

Read more
Universal Audio: Evolution of Recording Technology

Universal Audio: Evolution of Recording Technology

The Universal Audio name has been synonymous with innovative recording products since 1958. Adorama Audio Expert, Jay Goodman, takes a look at the evolutio...

Read more

About Universal Audio Apollo Twin Duo Audio Interface - SKU#1718311

FEATURED REVIEWS

Unbelievable price for the quality!!

By KEN T.

I purchased this interface from Adorama about a month ago and wanted to test it out before I left a real review. I have to say this was the best purchase for my money thus far. Outstanding condition and I?m more than satisfied with my purchase!!!

The Universal Audio Apollo Twin Interface with Realtime UAD DUO Processing allows you to record with near-zero latency through the full range of UAD Powered Plug-Ins, ingeniously merging classic analog tones with cutting-edge features.

Record and Mix with Stunning 24 bit/192 kHz Sound Quality
With the highest dynamic range and lowest noise of any desktop interface, Apollo Twin gives you stellar 24-bit/192 kHz sound and breathtaking clarity. Its premium mic preamps, input stage and audio conversion are identical to the famed Apollo series, translating into rich three-dimensional recordings with exceptional depth and punch. Digitally controlled analog monitor outputs provide full resolution audio (without digital scaling) at all listening levels letting you create better mixes in real-world environments.

Track Through Classic Mic Preamps Using Unison Technology
Unison technology allows Apollo Twin's mic preamps to sound and behave like the world's most sought-after tube and solid state preamps including their all-important impedance, gain stage "sweet spots," and circuit behaviors. Based on breakthrough integration between Apollo's digitally controlled analog mic preamps and its onboard UAD processing, Unison lets you track through colorful preamp emulations like the bundled UA 610-B Tube Preamp plug-in, with more emulations coming soon.

High-speed Thunderbolt Connection to your Mac
Apollo Twin's Thunderbolt connection features ultra-fast PCIe audio drivers for high-bandwidth, low-latency performance on all Thunderbolt-equipped Macs. Because Thunderbolt offers 12x the bandwidth of FireWire 800, you can connect numerous devices in line with Apollo Twin including hard drives and HDMI/USB3 hubs all with fast, flawless performance.

Professional I/O Connections
Apollo Twin is a 2-in/6-out interface with two class-leading mic/line preamps, two analog line outputs, two digitally controlled analog monitor outputs and up to eight additional channels of digital inputs via Optical connection. Its conveniently located Hi-Z instrument input and headphone jack allow you to capture inspiration the moment it strikes.

Console Application and Console Recall Plug-In
The Console application is Apollo Twin's software control interface. Its intuitive, analog console-style design provides "realtime" tracking and monitoring with UAD Powered Plug-Ins a feature not found in any other interface. Complete Apollo Twin Console setups can be saved as presets or even saved within your sessions using the Console Recall plug-in (VST/AU/RTAS/AAX 64). This enables hardware recall of all Apollo Twin settings, even months and years after you last opened your session.

Easy to Use with Any Mac DAW
Apollo Twin is compatible with all major Mac DAWs, including Pro Tools, Logic, GarageBand, Cubase, Live and more allowing seamless integration no matter what recording software you use.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Universal Audio Apollo Twin Interface with Realtime UAD2 Processing
  • Power Supply
  • Item Note: Missing URL Card
