Vivotek FD8152V-F2 1.3MP Indoor/Outdoor Day & Night Fixed Dome Network Camera with 2.8mm Lens, 1280x1024, 30fps, 15m IR Illuminators, H.264, MJPEG, PoE, Vandal Proof, White

SKU: VIFD8152VF2W

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Vivotek FD8152V-F2 Specifications

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    128MB

  • RAM

    256MB

  • Image Sensor

    1/3" Progressive CMOS

  • Maximum Resolution

    1280 x 1024

  • Lens Type

    Fixed-focal

  • Focal Length

    f=2.8mm

  • Aperture

    F2.0

  • Auto-iris

    Fixed-iris

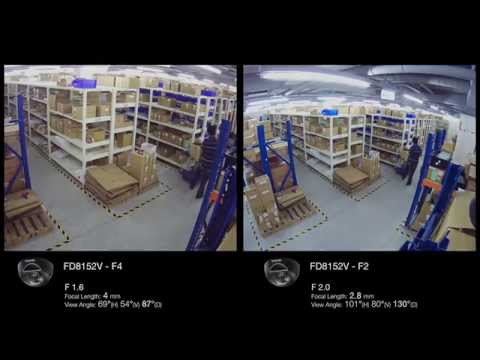

  • Field of View

    101 deg. (horizontal)
    80 deg. (vertical)
    130 deg. (diagonal)

  • Shutter Time

    1/5 to 1/32,000 sec

  • WDR Technology

    WDR Enhanced

  • Day & Night

    Removable IR-cut filter for day & night function

  • Minimum Illumination

    0.08 Lux at F1.6 (Color)
    0.06 Lux at F1.6 ( B/W )
    0 Lux at IR LED ON

  • Pan / Tilt / Zoom

    ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

  • IR Illuminators

    Built-in IR illuminators, effective up to 15m IR LED x 9

  • On-board Storage

    MicroSD/SDHC/SDXC card slot

  • Video Compression

    H.264 & MJPEG

  • Maximum Frame Rate

    In both compression 30 fps at 1280x1024

  • Maximum Streams

    3 simultaneous streams

  • S/N Ratio

    Above 56dB

  • Video Streaming

    Adjustable resolution, quality and bit rate Configurable video cropping for bandwidth saving

  • Image Settings

    Adjustable image size, quality and bit rate
    Time stamp, text overlay, flip & mirror
    Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, 3D Noise Reduction
    Scheduled profile settings

  • Audio Capability

    Audio input

  • Audio Compression

    G.711

  • Audio Interface

    Built-in Microphone

  • Users

    Live viewing for up to 10 clients

  • Protocols

    IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X

  • ONVIF

    Supported

  • Network Interface

    10Base-T / 100BaseTX Ethernet (RJ-45)
    It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard

  • Video Motion Detection

    Triple-window video motion detection

  • Alarm Triggers

    Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection

  • Alarm Events

    Event notification using HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server

  • Connectors

    1x RJ-45 for Network/PoE connection Digital input

  • LED Indicator

    System power and status indicator

  • Power input

    IEEE 802.3af PoE Class 2

  • Power consumption

    Maximum 5.1W

  • Casing

    Vandal-proof IK10-rated metal housing

  • Safety Certifications

    CE, LVD, FCC Class B, VCCI, C-Tick

  • Operating Temperature

    Starting Temperature: 14 to 122 deg. F (-10 to 50 deg. C)
    Working Temperature: -4 to 122 deg. F (-20 to 50 deg. C)

  • Operating System

    Microsoft Windows 7/Vista/XP/2000

  • Browser

    Mozilla Firefox 7 to 10 (streaming only)
    Internet Explorer 7.x or 8.x

  • Other Players

    VLC: 1.1.11 or above
    QuickTime: 7 or above

  • Dimensions

    Dia.: 3.94 x 2.17" (100 x 55mm)

  • Weight

    10.02 oz (284g)

About Vivotek FD8152V-F2

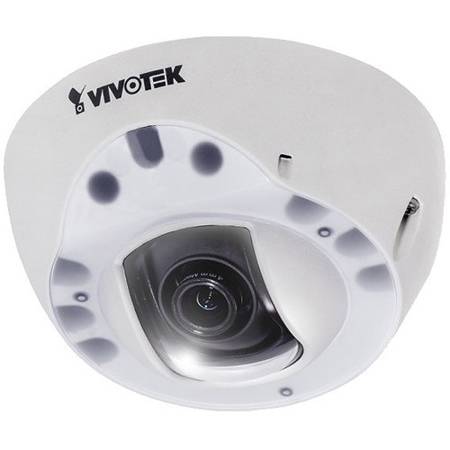

VIVOTEK FD8152V is a compact fixed dome network camera with 1.3-Megapixel resolution and the ability to output 30 frames per second in H.264 compression. Equipped with SNV (Supreme Night Visibility) technology, the FD8152V offers increased sensitivity to low light and provides clear images in dark conditions. In addition, built-in IR LEDs enable the camera to provide enough illumination for clear viewing up to 15 meters, even in completely dark environments.

The FD8152V is a camera with IK10-rated vandal-proof housing for increased camera protection. Additionally, at a size of only 100mm in diameter, the FD8152V is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance applications, such as offices, elevators, chain stores, prisons and health care facilities.

Vivotek FD8152V-F2 Features

  • 1.3-Megapixel CMOS Sensor
  • 30fps at 1280 x 1024
  • Real-time H.264, MJPEG Compression (Dual Codec)
  • Removable IR-cut Filter for Day & Night Function
  • Built-in IR Illuminators, Effective up to 15m
  • Built-in 802.3af Compliant PoE
  • Build-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
  • Supports ONVIF Standard to Simplify Integration and Enhance Interoperability
  • Vandal-proof IK10-rated Housing
  • 3D Noise Reduction
  • Supreme Night Visibility
  • 2.8mm Lens
  • WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments

What's in the box:

  • Vivotek FD8152V-F2 1.3MP Indoor/Outdoor Day & Night Fixed Dome Network Camera with 2.8mm Lens
  • CD (User's Manual
  • Quick Installation Guide
  • Installation Wizard 2
  • ST7501 32-Channel Recording Software)
  • Screw Pack
  • Vivotek 2 Year Warranty
